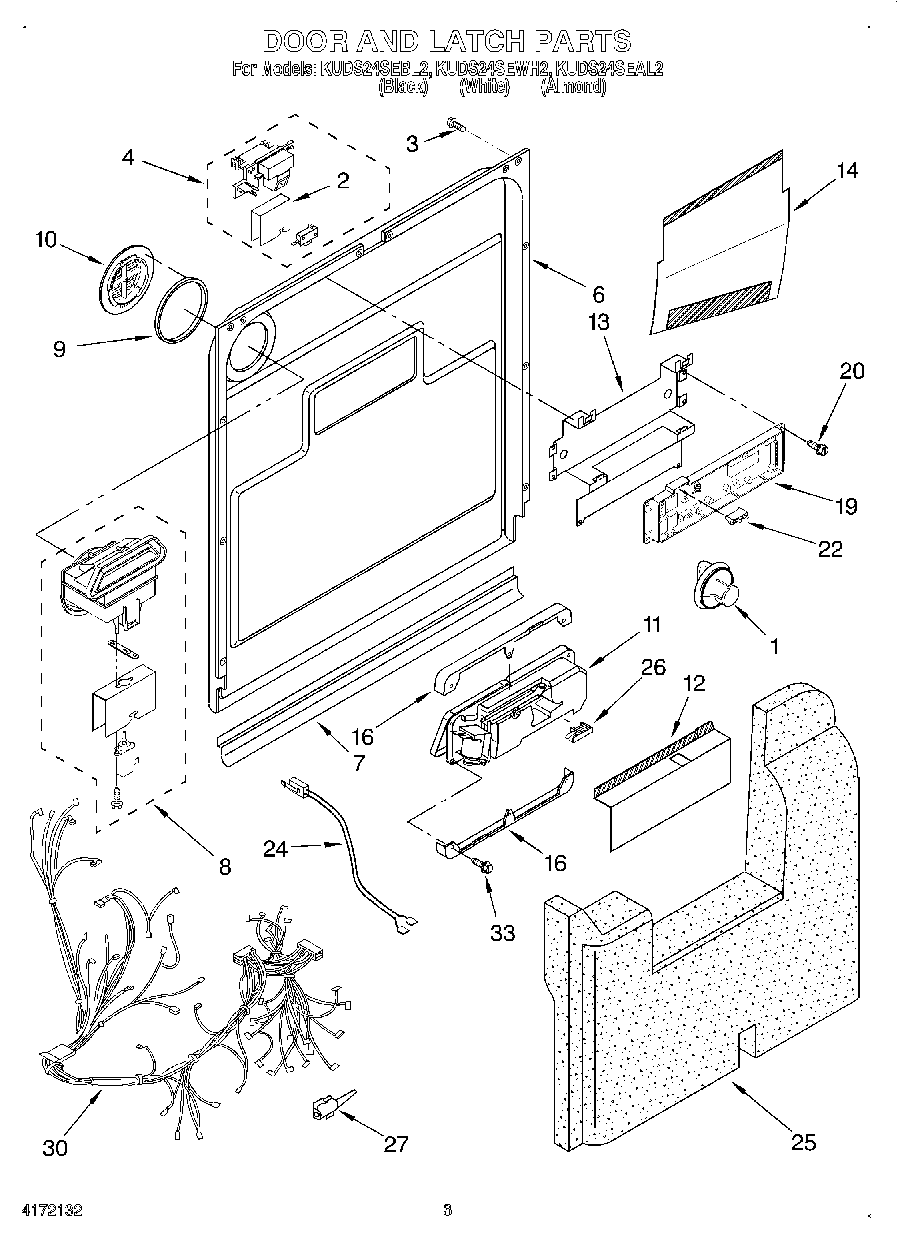

KUDS24SEBL2 03 – DOOR AND LATCHadmin2025-04-26T12:42:10+00:00KUDS24SEBL2 03 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Cap, Dispenser |
| 2 | 675760 Whirlpool Dishwasher Door Latch Assembly |
| 3 | WPW10348409 Whirlpool Screw |
| 6 | Inner Door Mastic Assembly (Also Includes Items 7, 9 & 10) |
| 7 | 4172127 Whirlpool Dishwasher Bottom Door Seal |
| 8 | Vent Assembly (Also Order Item 9) |
| 9 | Gasket, Vent |
| 10 | Deflector, Vent (Also Order Item 9) |
| 11 | WPW10616003 Whirlpool Dishwasher Dispenser Assembly |
| 12 | Shield, Dispenser |
| 13 | Bracket, Controls |
| 14 | Shield, Control |
| 16 | Bracket, Dispenser (2) |
| 19 | Control, Electronic |
| 20 | WP965173 Whirlpool Dishwasher Screw |
| 22 | Fuse Thermal Electronic |
| 24 | Dispenser, Wiring Harness |
| 25 | Sound Absorber |
| 26 | Sensor, Rinse Aid |
| 27 | 3376405 Whirlpool Dishwasher Elbow |
| 30 | Wiring Harness Main |
| 33 | Screw (6) |
