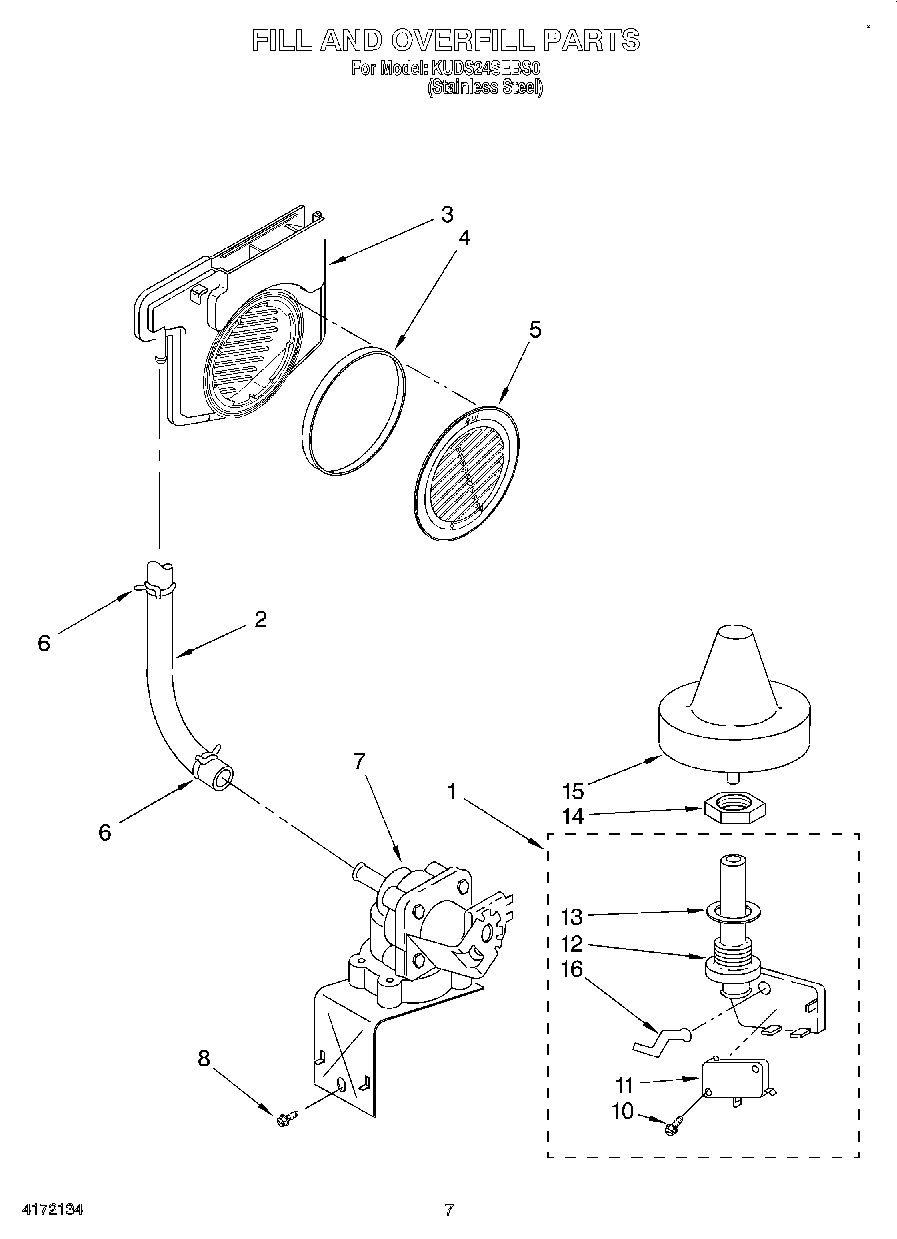

KUDS24SEBS0 06 – FILL AND OVERFILL

Products

Position	Product
2	WP9742727 Whirlpool Dishwasher Fill Hose
3	Water Inlet Assembly (Includes Items 4 & 5)
4	Gasket
5	Bezel, Inlet
6	WP596669 Whirlpool Hose Clamp
7	Fill Valve Assembly
8	WP489069 Whirlpool Compactor Screw
10	Screw
11	WP9743413 Whirlpool Dishwasher Switch
12	W10207863 Whirlpool Dishwasher Switch
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	Nut, Standpipe
15	Float & Retainer Assembly
16	Lever, Overflow Switch
