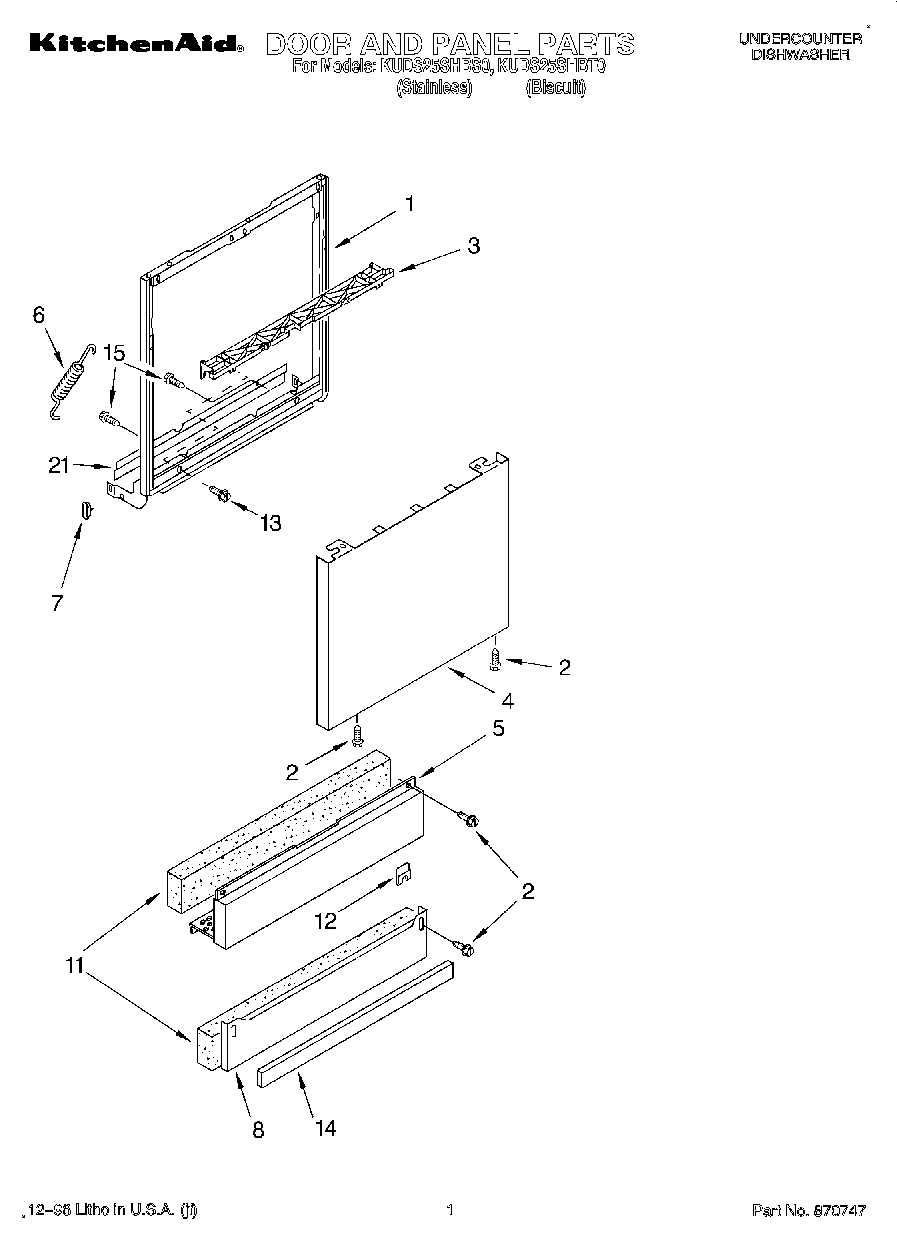

KUDS25SHBS0 01 – DOOR AND PANEL

Products

PositionProduct
1WP9743028 Whirlpool Dishwasher Frame
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel Front (Stainless Mdl.)
4Panel, Front (Biscuit)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Stainless Mdl.)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Biscuit)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8Toe Panel (Includes Item 11) (Biscuit)
8WP3379920 Whirlpool Dishwasher Toe Panel
11Insulation
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
14Seal, Toe Panel
15WP488234 Whirlpool Air Conditioner Screw
21Barrier, Lower vent
