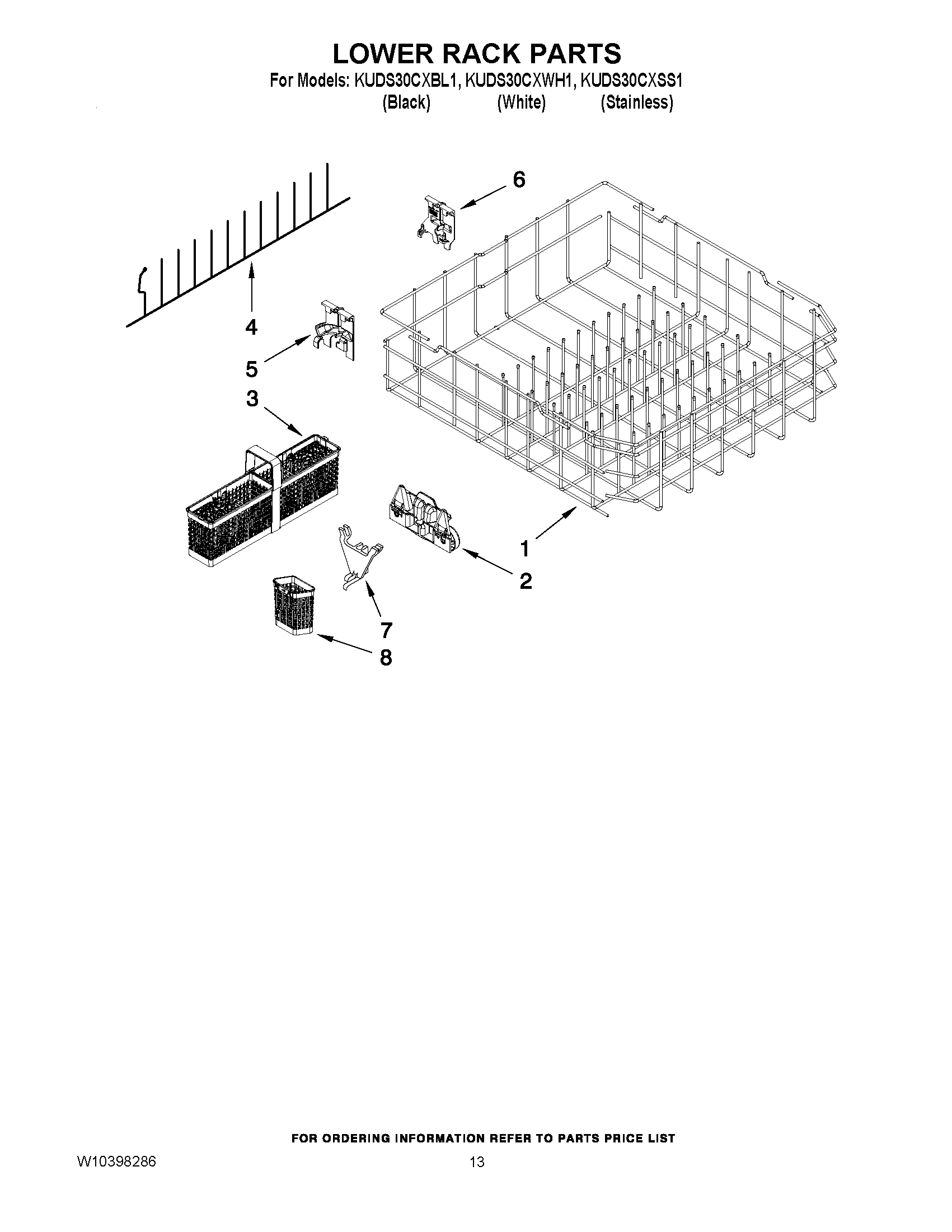

KUDS30CXSS1 10 – LOWER RACK PARTS

KUDS30CXSS1 10 – LOWER RACK PARTS

Written by

in

KUDS30CXSS1 10 – LOWER RACK PARTS

Products

PositionProduct
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
2W10195416V Whirlpool Dishwasher Roller Wheel Assembly
3WPW10473836 Whirlpool Silverware Basket
4W10728160 Whirlpool Tine Assembly
5WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
6WPW10175279 Whirlpool Retainer
7WPW10078227 Whirlpool Dishwasher Pivot Tine
8WPW10482109 Whirlpool Dishwasher Basket Ware
