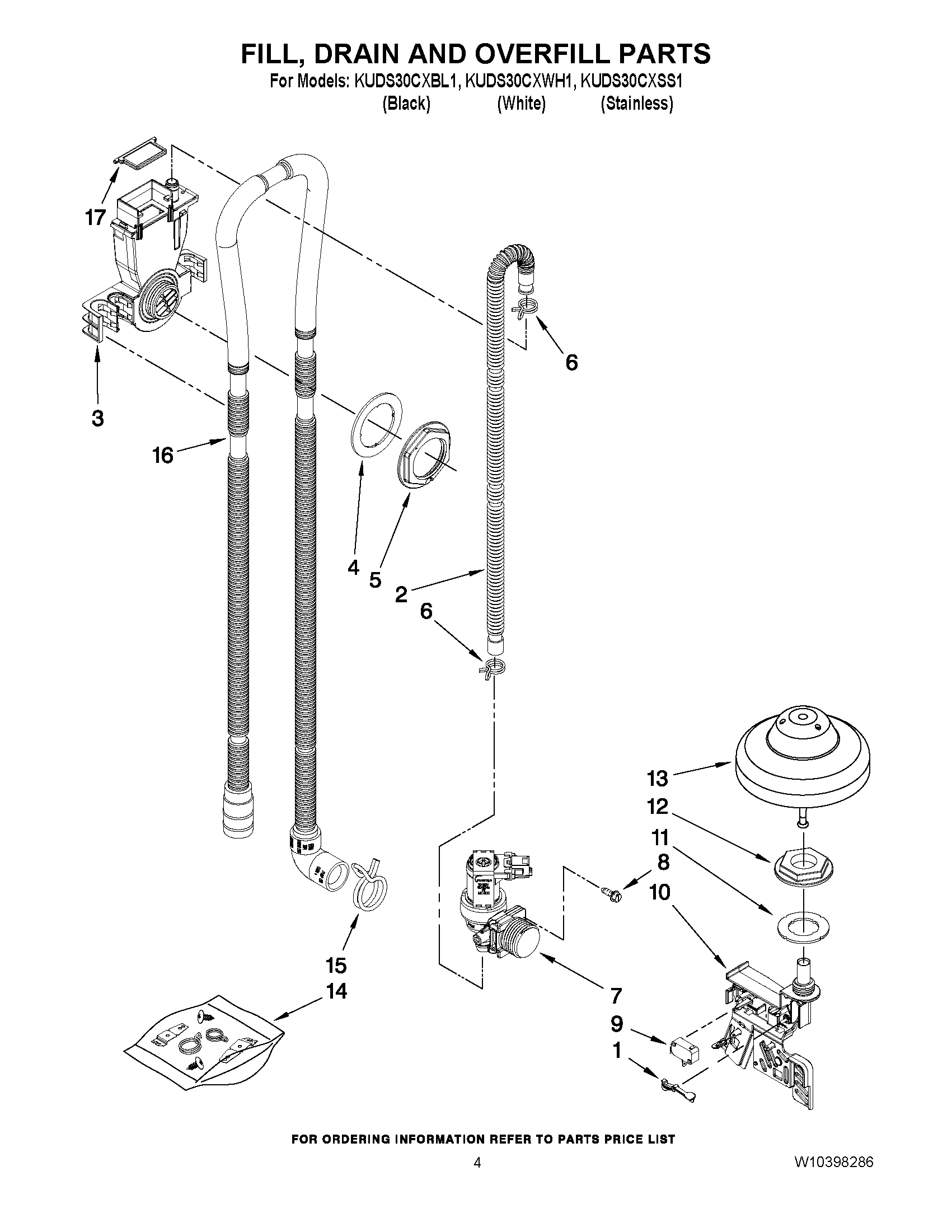

KUDS30CXWH1 04 – FILL, DRAIN AND OVERFILL PARTS

Products

Position	Product
1	WPW10195037 Whirlpool Lever Assembly
2	W10878507 Whirlpool Inlet Hose
3	WATER INLET (ALSO ORDER ITEMS 4 & 17)
4	WP8531323 Whirlpool Gasket Seal
5	WPW10213825 Whirlpool Dishwasher Tube Nut
6	WP596669 Whirlpool Hose Clamp
7	WPW10327249 Whirlpool Dishwasher Water Inlet Fill Valve
8	WP489069 Whirlpool Compactor Screw
9	WPW10195039 Whirlpool Dishwasher Float Switch
10	W10873429 Whirlpool Housing
11	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12	WPW10195038 Whirlpool Dishwasher Nut
13	WPW10195036 Whirlpool Dishwasher Float
14	WPW10292152 Whirlpool Hardware Kit
15	WP356138 Whirlpool Hose Clamp
16	WPW10545278 Whirlpool Drain Hose
17	W10316376 Whirlpool Dishwasher Float Check
