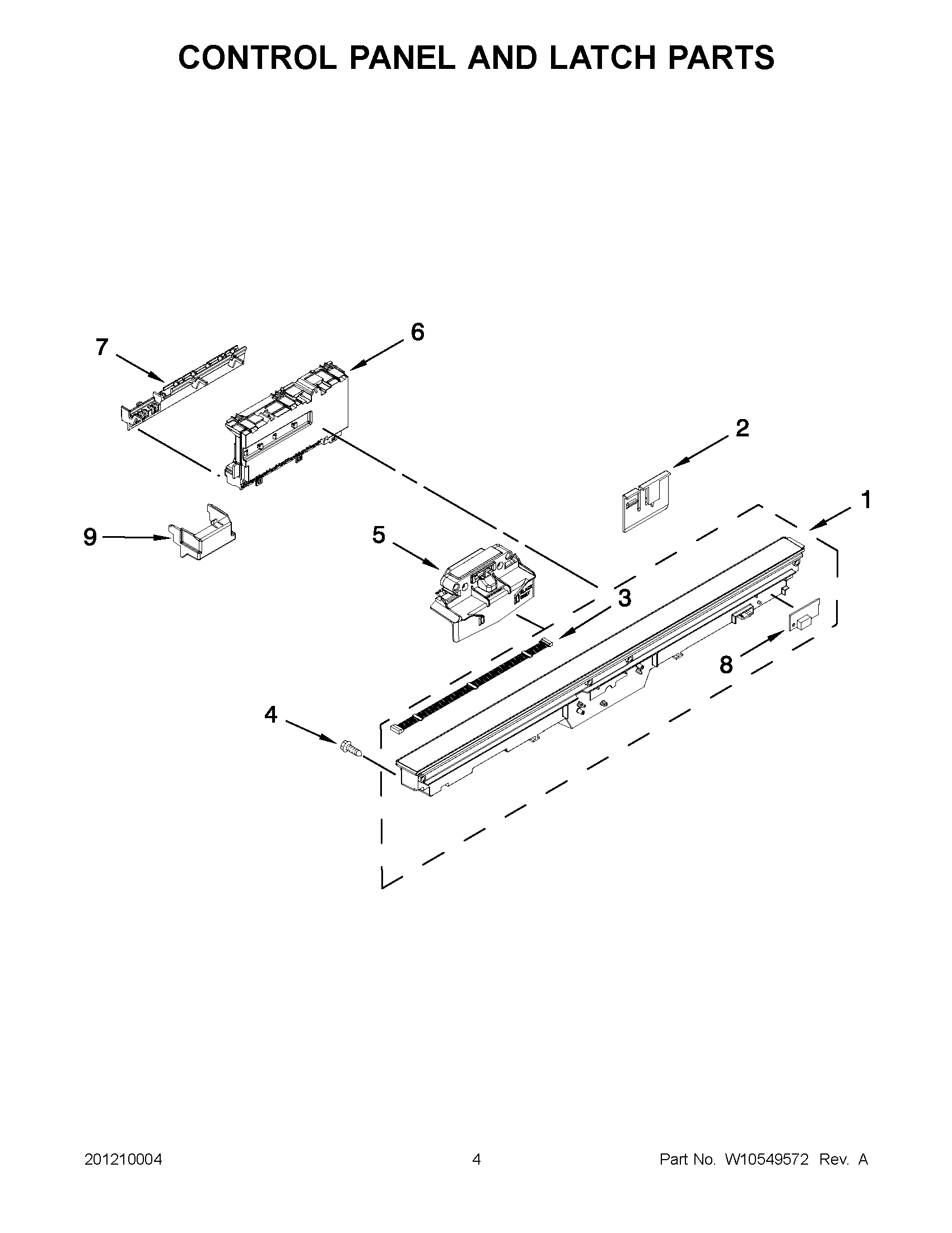

KUDS30FBBL1 02 – CONTROL PANEL AND LATCH PARTS

KUDS30FBBL1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDS30FBBL1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481126 Whirlpool Dishwasher Control Panel
1CONSOLE ASSEMBLY (STAINLESS)
1CONSOLE ASSEMBLY (BLACK)
2W11256107 Whirlpool Dishwasher Clip
3W10315814 Whirlpool Dishwasher Wire Harness
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10479761 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195836 Whirlpool Dishwasher Indicator Light
9W10783730 Whirlpool Dishwasher Connector
