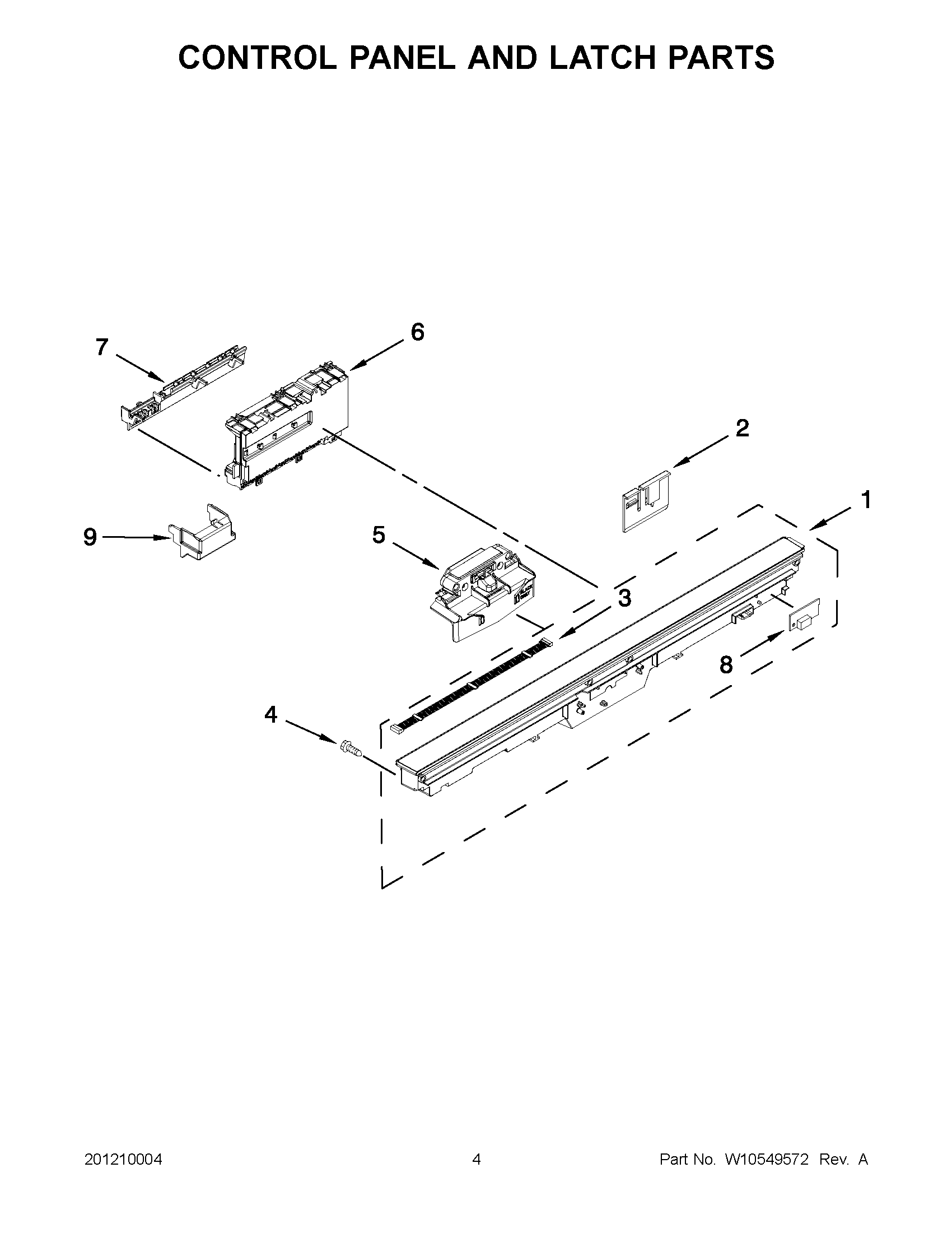

KUDS30FBSS1 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10481126 Whirlpool Dishwasher Control Panel
1	CONSOLE ASSEMBLY (STAINLESS)
1	CONSOLE ASSEMBLY (BLACK)
2	W11256107 Whirlpool Dishwasher Clip
3	W10315814 Whirlpool Dishwasher Wire Harness
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	W10479761 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	WPW10195836 Whirlpool Dishwasher Indicator Light
9	W10783730 Whirlpool Dishwasher Connector
