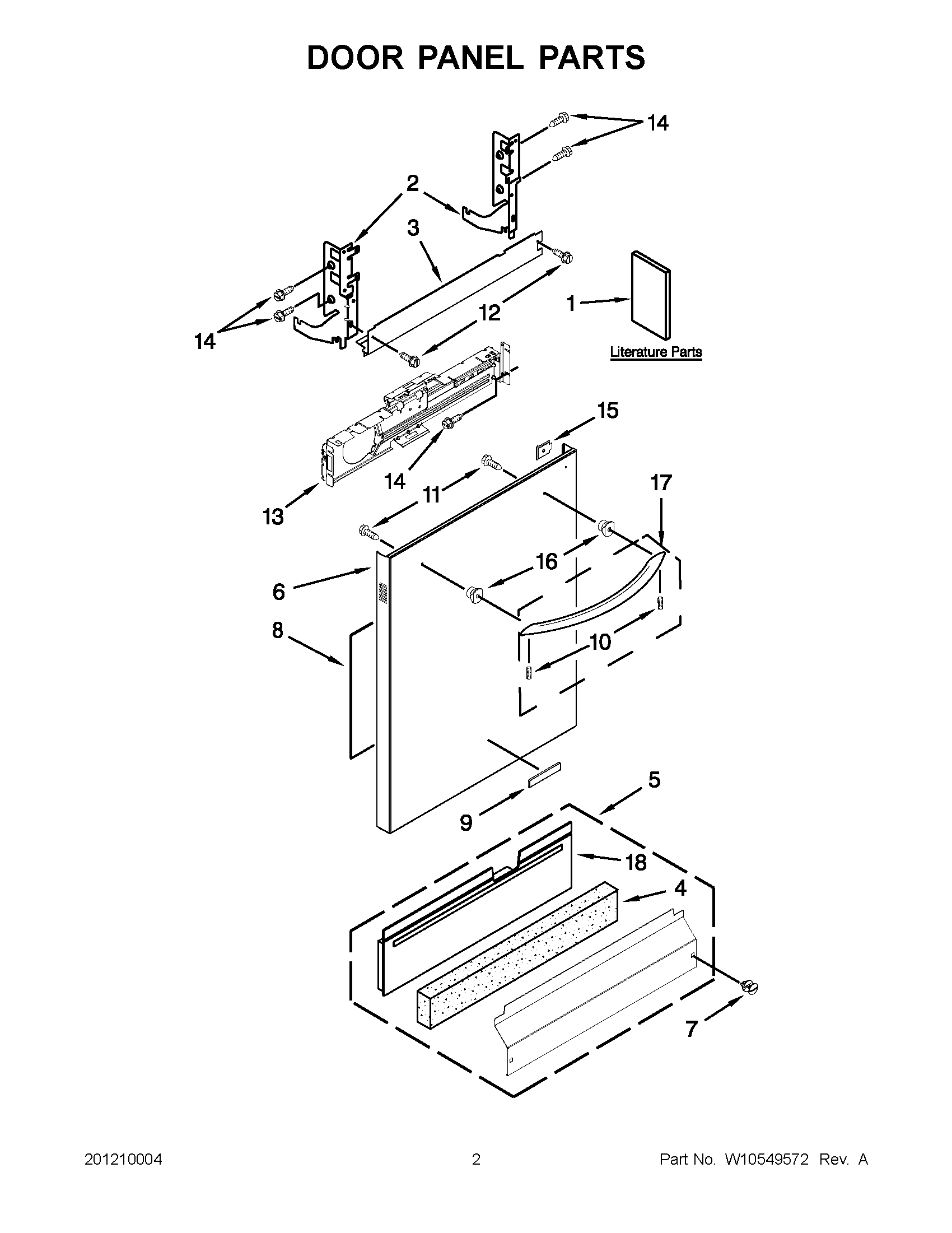

KUDS30FBWH1 01 – DOOR PANEL PARTS

KUDS30FBWH1 01 – DOOR PANEL PARTS

Written by

in

KUDS30FBWH1 01 – DOOR PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/ENGLISH
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
5WPW10526114 Whirlpool Dishwasher Access Panel
5WPW10526115 Whirlpool Dishwasher Panel
6WPW10195870 Whirlpool Door Outer Panel
6WPW10195872 Whirlpool Dishwasher Panel
6WPW10195873 Whirlpool Dishwasher Panel
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7WPW10503549 Whirlpool Dishwasher Retainer Clip
8W11126003 Whirlpool Dishwasher Insulation Pad
9WPW10243391 Whirlpool Refrigerator Nameplate
9WPW10243392 Whirlpool Dishwasher Nameplate
9WPW10243393 Whirlpool Dishwasher Nameplate
10WPW10307614 Whirlpool Dishwasher Screw
11W10826179 Whirlpool Dishwasher Screw
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14WP3400071 Whirlpool Screw
15W10319007 Whirlpool Dishwasher Indicator Light
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10195736A Whirlpool Dishwasher Handle
17W10195735A Whirlpool Dishwasher Door Handle Black
17W10195738A Whirlpool Stainless Steel Door Handle
18SHIELD
