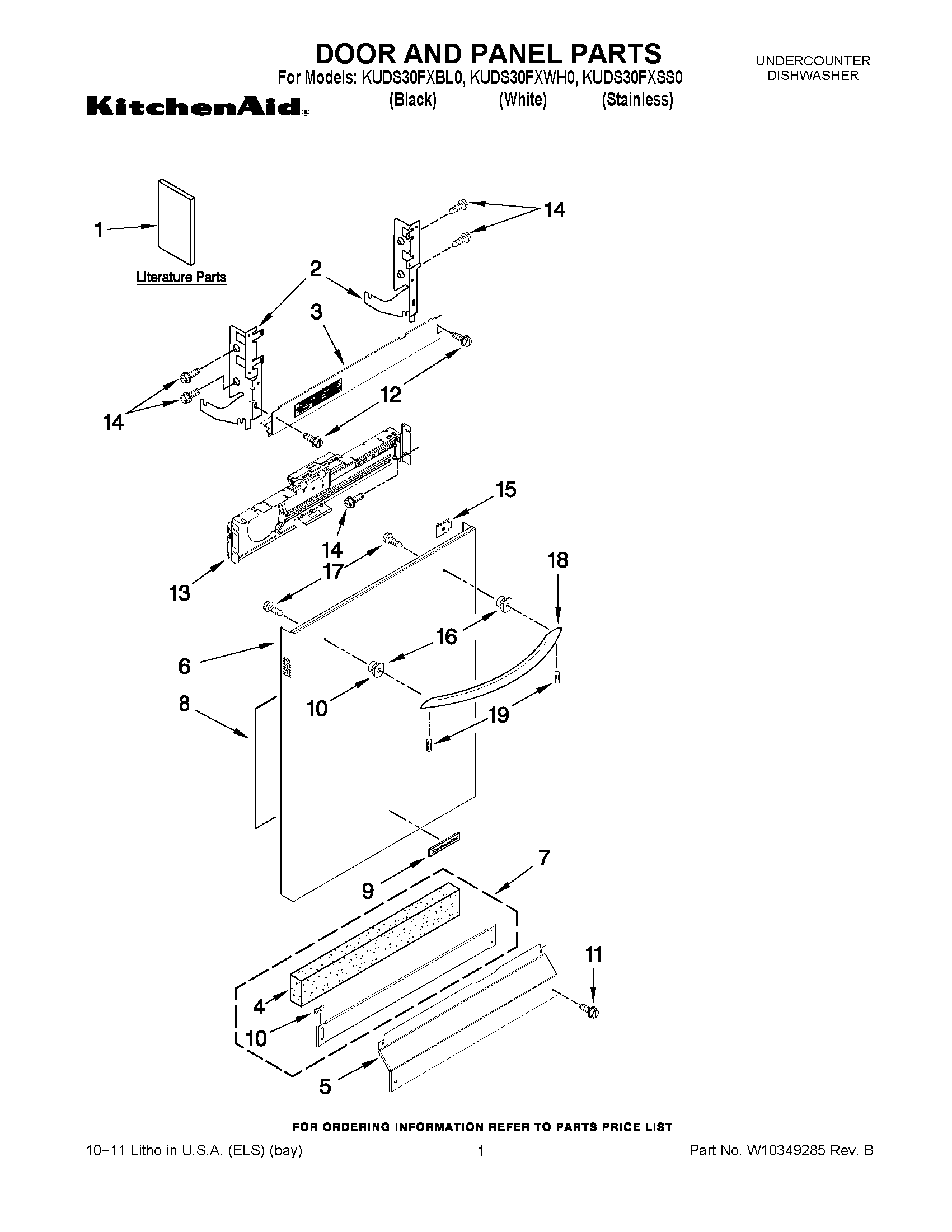

KUDS30FXBL0 01 – DOOR AND PANEL PARTS

KUDS30FXBL0 01 – DOOR AND PANEL PARTS

Written by

in

KUDS30FXBL0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1ENERGY GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5W10909066 Whirlpool Dishwasher Panel
6WPW10195872 Whirlpool Dishwasher Panel
6WPW10195873 Whirlpool Dishwasher Panel
6WPW10195870 Whirlpool Door Outer Panel
7WPW10586591 Whirlpool Dishwasher Toe Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
8W11126003 Whirlpool Dishwasher Insulation Pad
9WPW10243393 Whirlpool Dishwasher Nameplate
9WPW10243392 Whirlpool Dishwasher Nameplate
9WPW10243391 Whirlpool Refrigerator Nameplate
10WP8269016 Whirlpool Clip Assembly
11WPW10503549 Whirlpool Dishwasher Retainer Clip
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14WP3400071 Whirlpool Screw
15W10319007 Whirlpool Dishwasher Indicator Light
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10826179 Whirlpool Dishwasher Screw
18W10195735A Whirlpool Dishwasher Door Handle Black
18W10195738A Whirlpool Stainless Steel Door Handle
18W10195736A Whirlpool Dishwasher Handle
19WPW10307614 Whirlpool Dishwasher Screw
