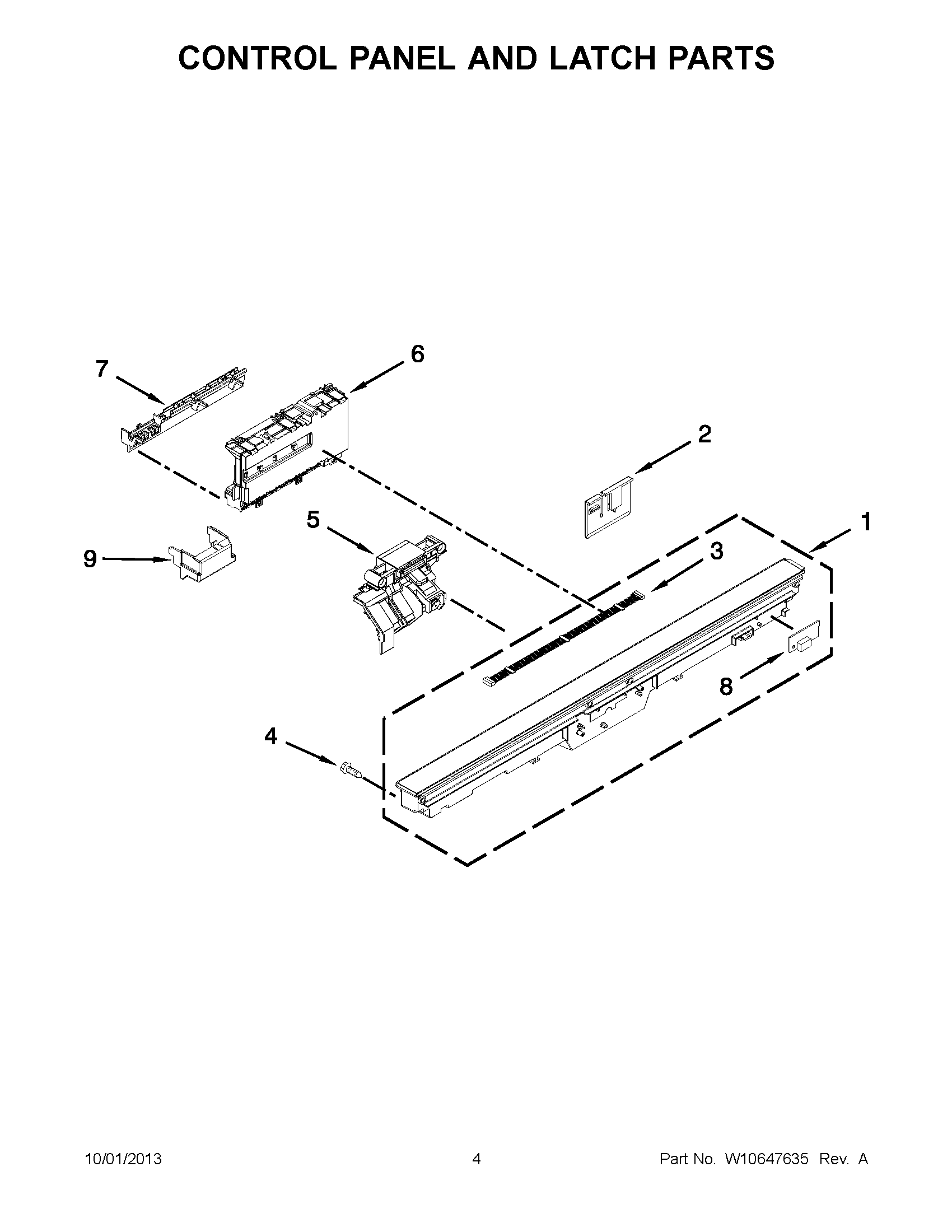

KUDS30FXBLA 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
1	CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
1	WPW10481126 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10528492 Whirlpool Dishwasher Wire
4	WPW10348408 Whirlpool Dishwasher Screw
5	WPW10653840 Whirlpool Door Latch
6	W10479761 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	WPW10195836 Whirlpool Dishwasher Indicator Light
9	W10783730 Whirlpool Dishwasher Connector
