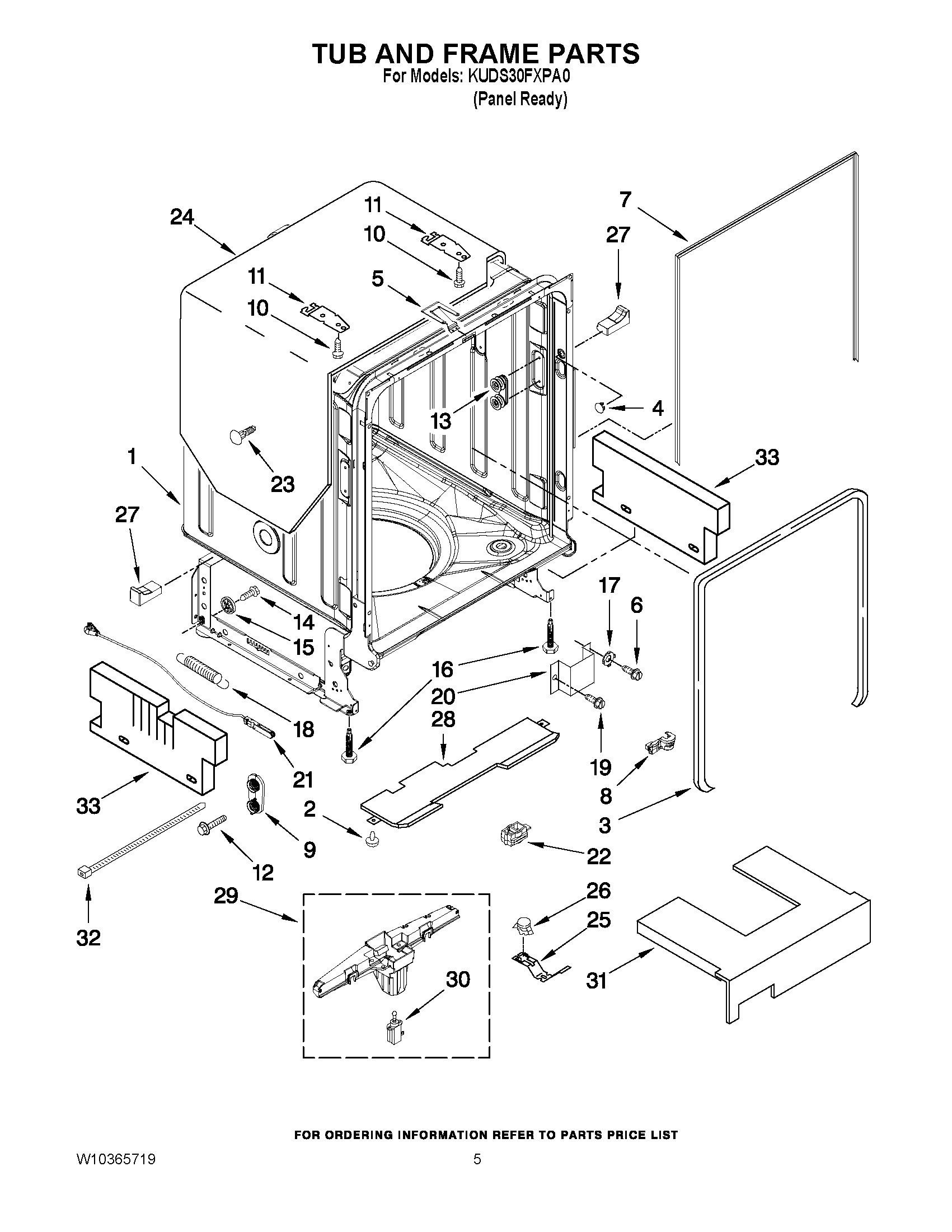

KUDS30FXPA0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10511199 Whirlpool Dishwasher Tub
2	WP3400924 Whirlpool Dishwasher Retainer
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10300779 Whirlpool Dishwasher Strike
6	WP3400014 Whirlpool Dishwasher Screw
7	SEAL
8	W11384788 Whirlpool Dishwasher Relief Strainer
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	WPW10505748 Whirlpool Dishwasher Dishrack Wheel
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP3378128 Whirlpool Dishwasher Washer
18	SPRING
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	W10292870 Whirlpool Dishwasher Housing
23	WP304666 Whirlpool Dishwasher Retainer
24	W10877094 Whirlpool Shield
25	W10195090 Whirlpool Stat Bracket
26	WPW10195091 Whirlpool Thermostat
27	W10195631 Whirlpool Dishwasher Tank Spacer
27	W10195630 Whirlpool Dishwasher Spacer
28	W11747584 Whirlpool Insulation Pad
29	WP8572661 Whirlpool Dishwasher Actuator
30	Motor, Wax
31	SHIELD
32	Strap
33	SHIELD, SIDE TUB
