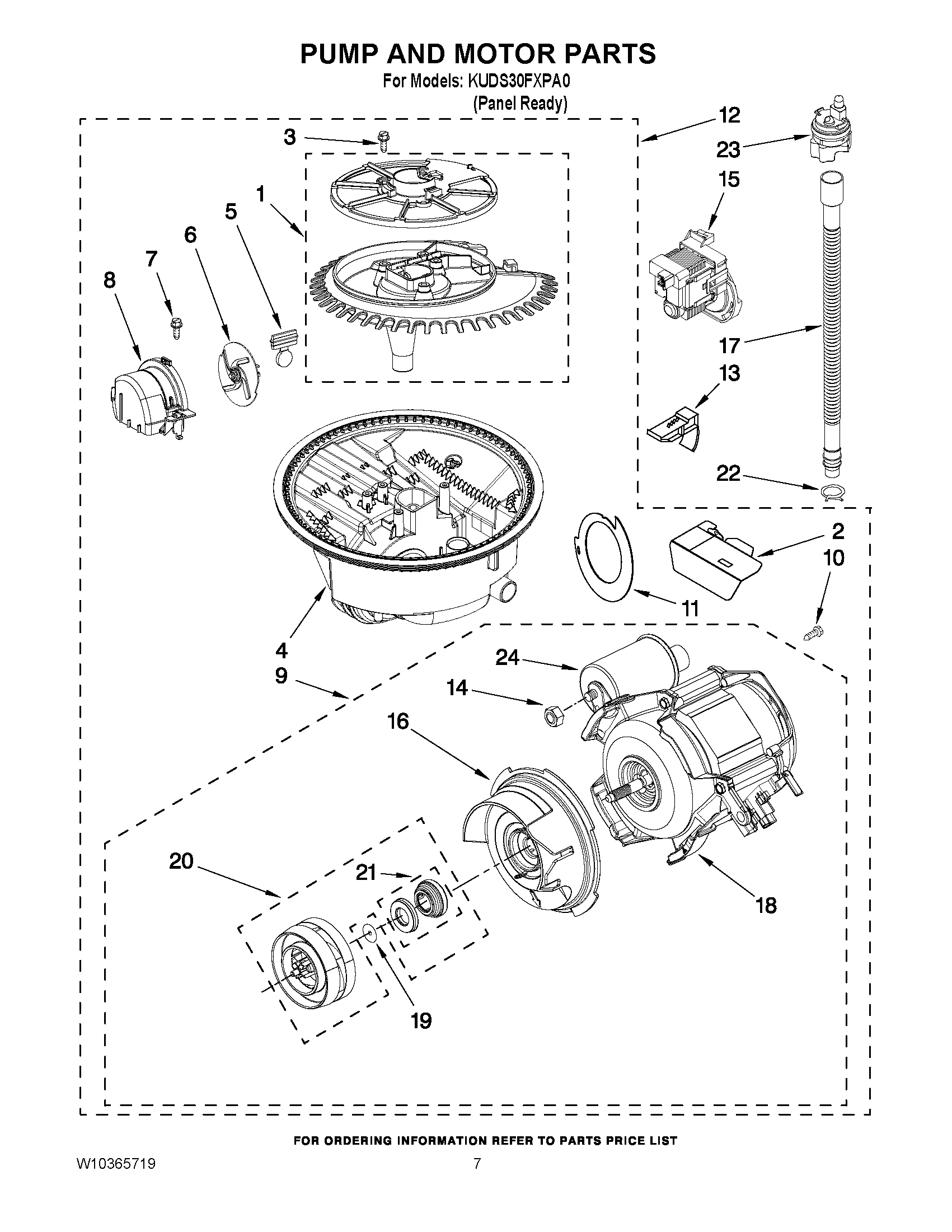

KUDS30FXPA0 06 – PUMP, WASHARM AND MOTOR PARTSadmin2025-04-26T12:41:30+00:00KUDS30FXPA0 06 – PUMP, WASHARM AND MOTOR PARTS ProductsPositionProduct18193918 Whirlpool Accumulator28283527 Whirlpool Shield3SCREW4WP8572618 Whirlpool Dishwasher Sump Assembly5WP8268375 Whirlpool Dishwasher Check Valve6W10083957V Whirlpool Dishwasher Chopper7WP9741232 Whirlpool Dishwasher Screw8WP8531857 Whirlpool Dishwasher Protector9WPW10757217 Whirlpool Circulation Pump and Motor103400217 Whirlpool Dishwasher Screw11W10084567 Whirlpool Dishwasher Screen12PUMP&MOTOR13WPW10300599 Whirlpool Dishwasher Sump Tab148533949 Whirlpool Dishwasher Nut15WPW10348269 Whirlpool Washer Drain Pump16W11622922 Whirlpool Dishwasher Volute178269144A Whirlpool Dishwasher Drain Hose18WPW10239401 Whirlpool Dishwasher Pump Motor19WP8531018 Whirlpool Dishwasher Washer218193951A Whirlpool Impeller Assembly22WP8269146 Whirlpool Dishwasher Clamp23WPW10705575 Whirlpool Dishwasher Sensor24WPW10334457 Whirlpool Dishwasher Capacitor
