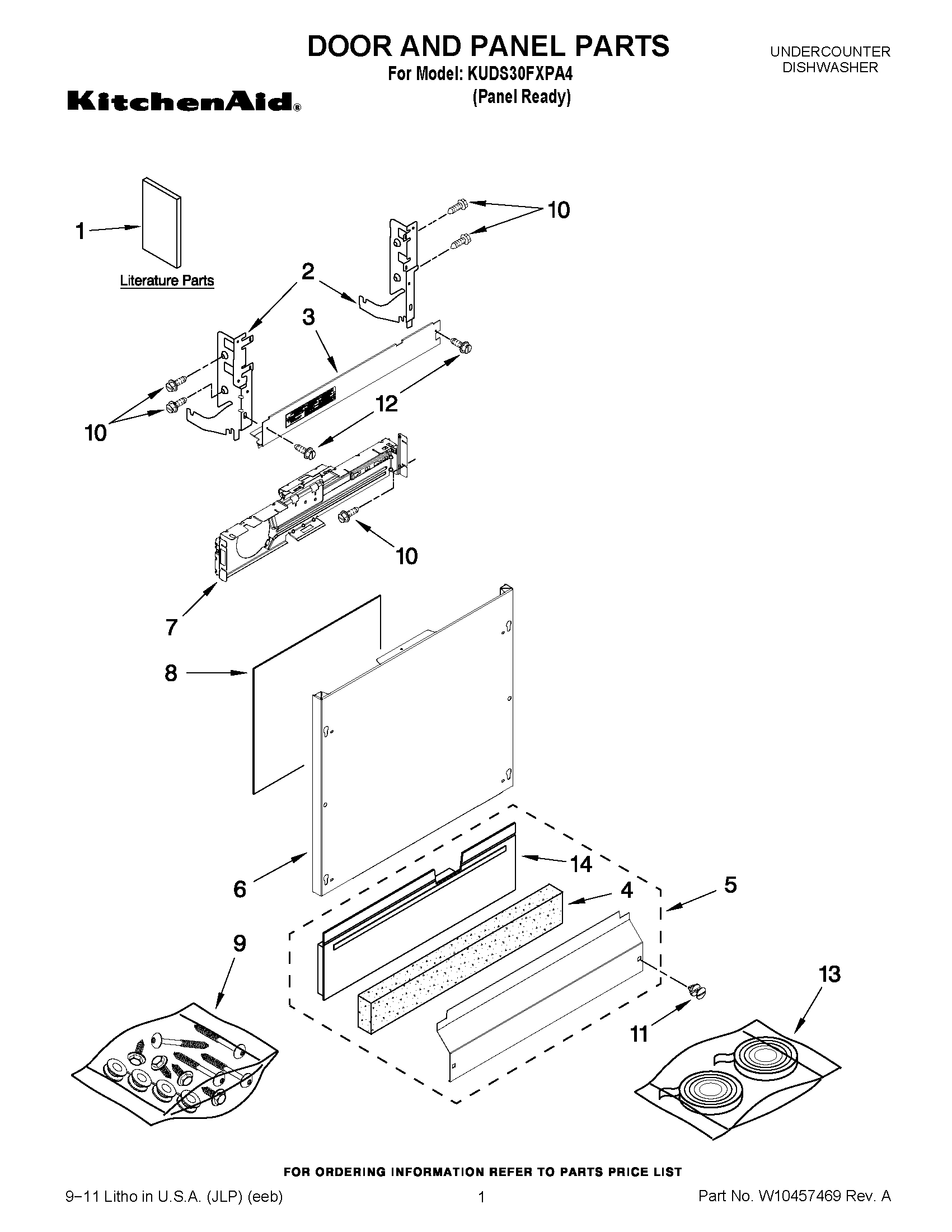

KUDS30FXPA4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET/ENGLISH
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/FRENCH
1TEMPLATE, 6" CUSTOM PANEL
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11113792 Whirlpool Dishwasher Panel
7W11116870 Whirlpool Dishwasher Control Bracket
8W10234565 Whirlpool Dishwasher Insulation Pad
9WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10WP3400071 Whirlpool Screw
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP489069 Whirlpool Compactor Screw
13WPW10366978 Whirlpool Dishwasher Seal
14SHIELD
