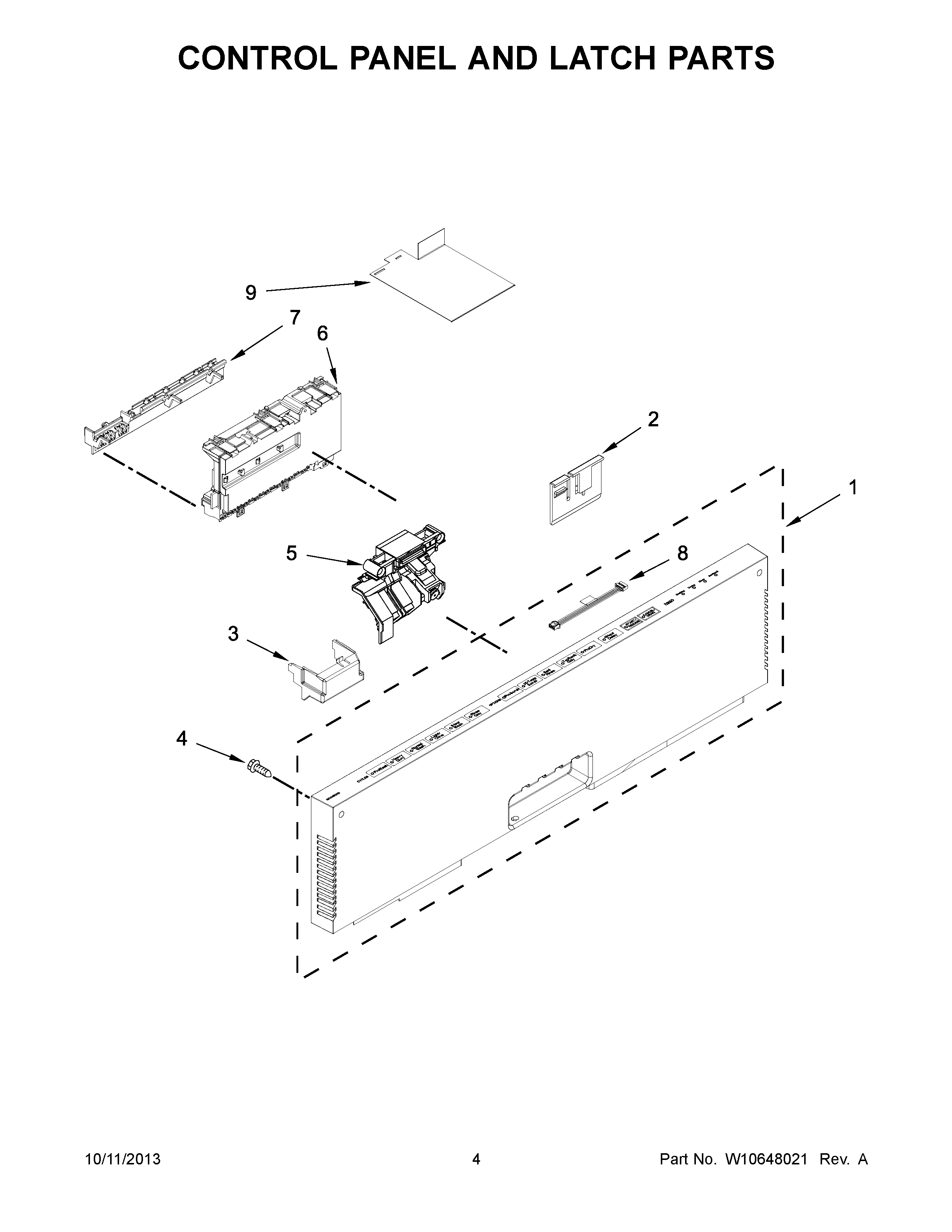

KUDS30FXPAA 03 – CONTROL PANEL AND LATCH PARTS

KUDS30FXPAA 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDS30FXPAA 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500088 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5WPW10653840 Whirlpool Door Latch
6W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10528492 Whirlpool Dishwasher Wire
9W10355484 Whirlpool Cover
