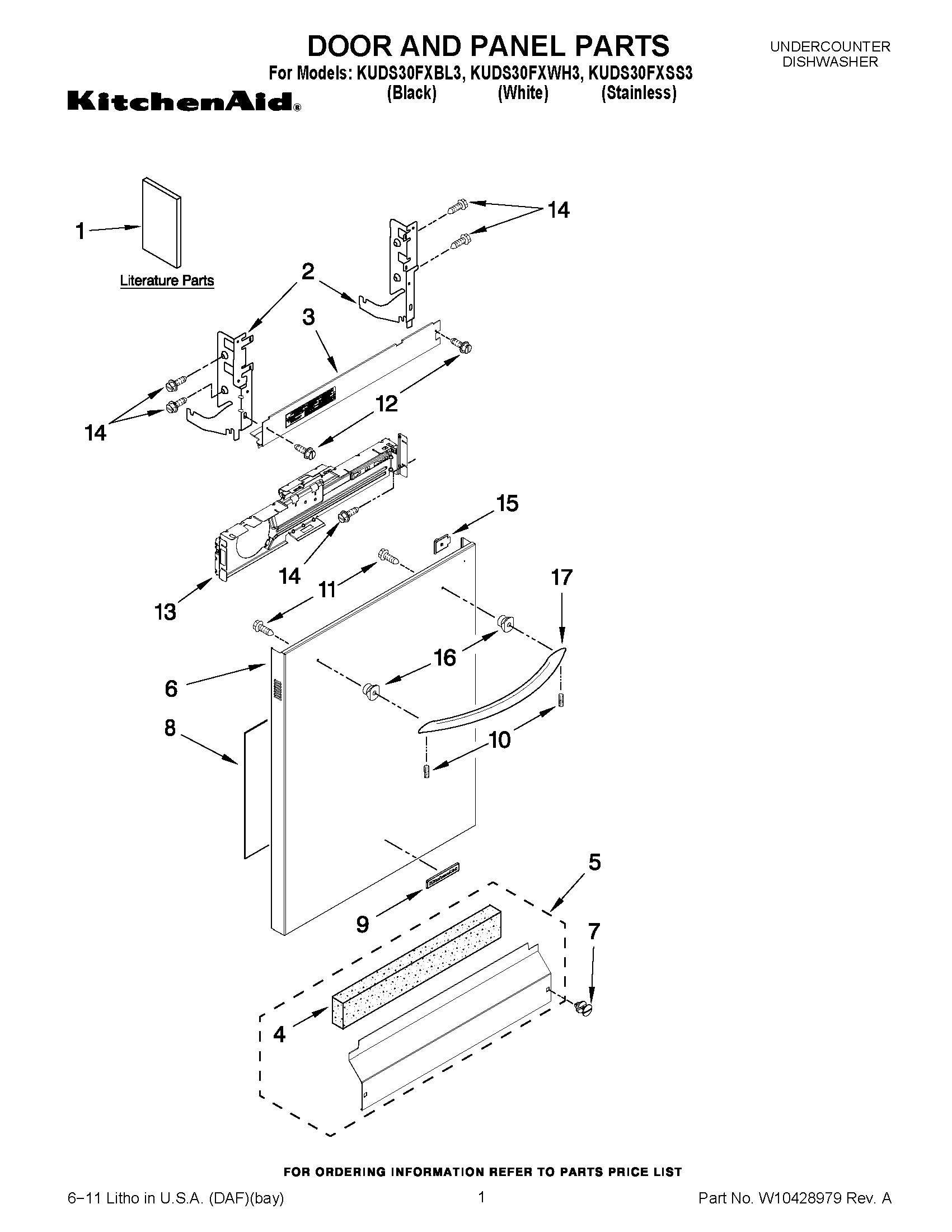

KUDS30FXSS3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET/ENGLISH
1	TECH SHEET/FRENCH
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	WPW10195872 Whirlpool Dishwasher Panel
6	WPW10195873 Whirlpool Dishwasher Panel
6	WPW10195870 Whirlpool Door Outer Panel
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	W11126003 Whirlpool Dishwasher Insulation Pad
9	WPW10243393 Whirlpool Dishwasher Nameplate
9	WPW10243392 Whirlpool Dishwasher Nameplate
9	WPW10243391 Whirlpool Refrigerator Nameplate
10	WPW10307614 Whirlpool Dishwasher Screw
11	W10826179 Whirlpool Dishwasher Screw
12	WP489069 Whirlpool Compactor Screw
13	W11116870 Whirlpool Dishwasher Control Bracket
14	WP3400071 Whirlpool Screw
15	W10319007 Whirlpool Dishwasher Indicator Light
16	W11157086 Whirlpool Dishwasher Door Handle Stud
17	W10195736A Whirlpool Dishwasher Handle
17	W10195735A Whirlpool Dishwasher Door Handle Black
17	W10195738A Whirlpool Stainless Steel Door Handle
