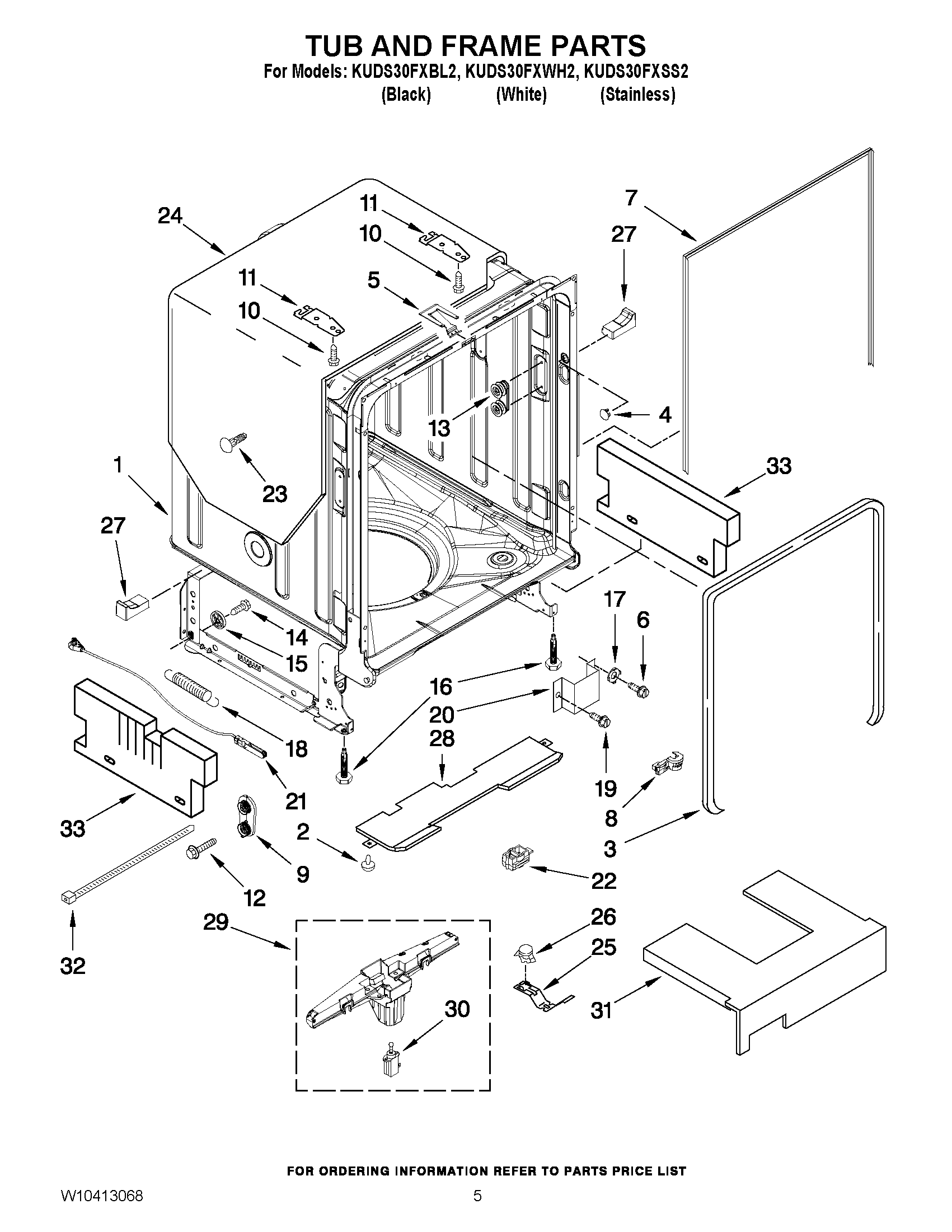

KUDS30FXWH2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10511199 Whirlpool Dishwasher Tub
2	WP3400924 Whirlpool Dishwasher Retainer
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10300779 Whirlpool Dishwasher Strike
6	WP3400014 Whirlpool Dishwasher Screw
7	SEAL
8	W11384788 Whirlpool Dishwasher Relief Strainer
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	WPW10505748 Whirlpool Dishwasher Dishrack Wheel
14	WPW10348411 Whirlpool Roller Wheel Screw
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
18	WP3378128 Whirlpool Dishwasher Washer
19	SPRING
20	WPW10277003 Whirlpool Screw
21	WP8268991 Whirlpool Dishwasher Cover Assembly
22	8194001 Whirlpool Dishwasher Door Balance Link Kit
23	W10292870 Whirlpool Dishwasher Housing
24	WP304666 Whirlpool Dishwasher Retainer
25	W10877094 Whirlpool Shield
26	W10195090 Whirlpool Stat Bracket
27	W10195631 Whirlpool Dishwasher Tank Spacer
27	WPW10195091 Whirlpool Thermostat
27	W10195630 Whirlpool Dishwasher Spacer
28	W11747584 Whirlpool Insulation Pad
29	WP8572661 Whirlpool Dishwasher Actuator
30	Motor, Wax
31	SHIELD
32	Strap
33	SHIELD, SIDE TUB
