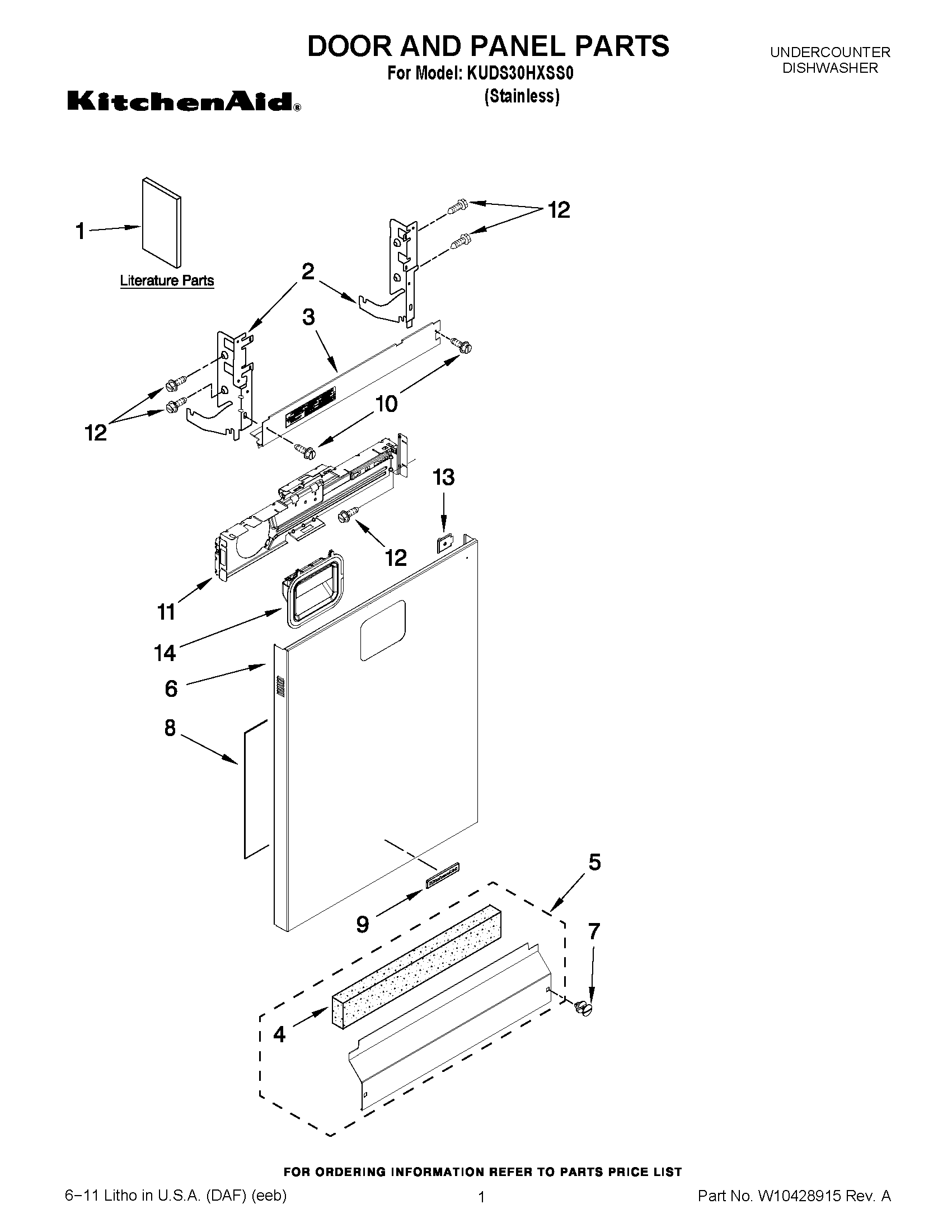

KUDS30HXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/ENGLISH
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10195724 Whirlpool Dishwasher Panel
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W11126003 Whirlpool Dishwasher Insulation Pad
9NAMEPLATE
10WP489069 Whirlpool Compactor Screw
11W11116870 Whirlpool Dishwasher Control Bracket
12WP3400071 Whirlpool Screw
13W10319007 Whirlpool Dishwasher Indicator Light
14HANDLE ASSEMBLY (CHROME)
