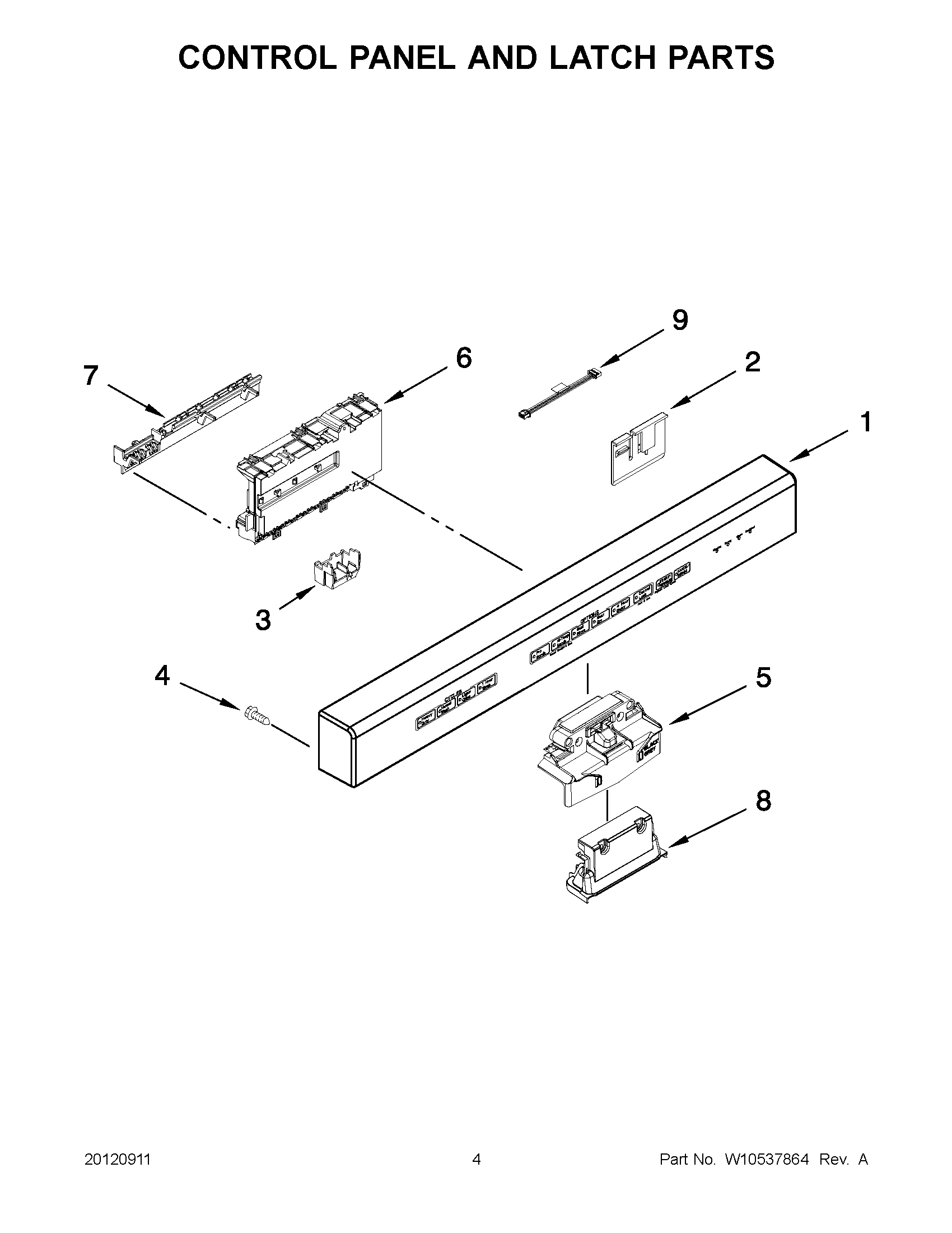

KUDS30IBBL0 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10500172 Whirlpool Dishwasher Control Panel
1	WPW10500173 Whirlpool Dishwasher Control Panel
1	WPW10500174 Whirlpool Control Panel
1	WPW10500175 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10783730 Whirlpool Dishwasher Connector
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	HANDLE (STAINLESS)
8	HANDLE (WHITE)
8	WPW10195718 Whirlpool Dishwasher Handle
8	W10195834 Whirlpool Dishwasher Handle
9	W10315814 Whirlpool Dishwasher Wire Harness
