KUDS30IBBL0 09 – UPPER RACK AND TRACK PARTS

KUDS30IBBL0 09 – UPPER RACK AND TRACK PARTS

Written by

in

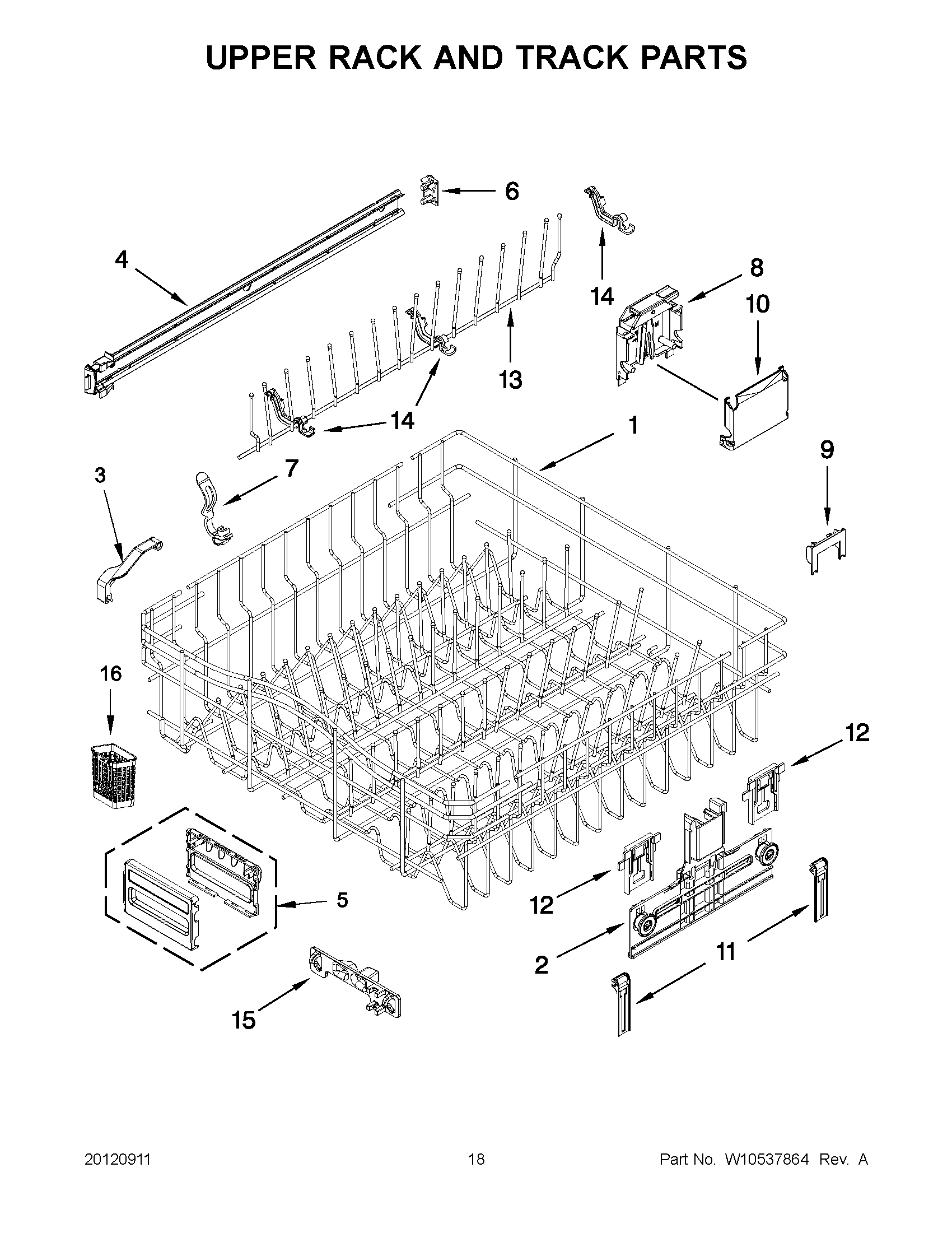

KUDS30IBBL0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2W10712394 Whirlpool Dishwasher Wheel and Arm Adjuster Kit
3WPW10267076 Whirlpool Guard Clip
4TRACK-DISHRACK
5W11110542 Whirlpool Dishwasher Handle
6WPW10195622 Whirlpool Stop
7WPW10077844 Whirlpool Dishwasher Clip
8WPW10588165 Whirlpool Adjuster Housing
8WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
9WPW10250160 Whirlpool Clip
10COVER
11WPW10195839 Whirlpool Dishwasher Rack Adjuster
12WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
13W10727426 Whirlpool Dishwasher Rack Tine
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15WP8539102 Whirlpool Dishwasher Positioner
16WPW10482109 Whirlpool Dishwasher Basket Ware
