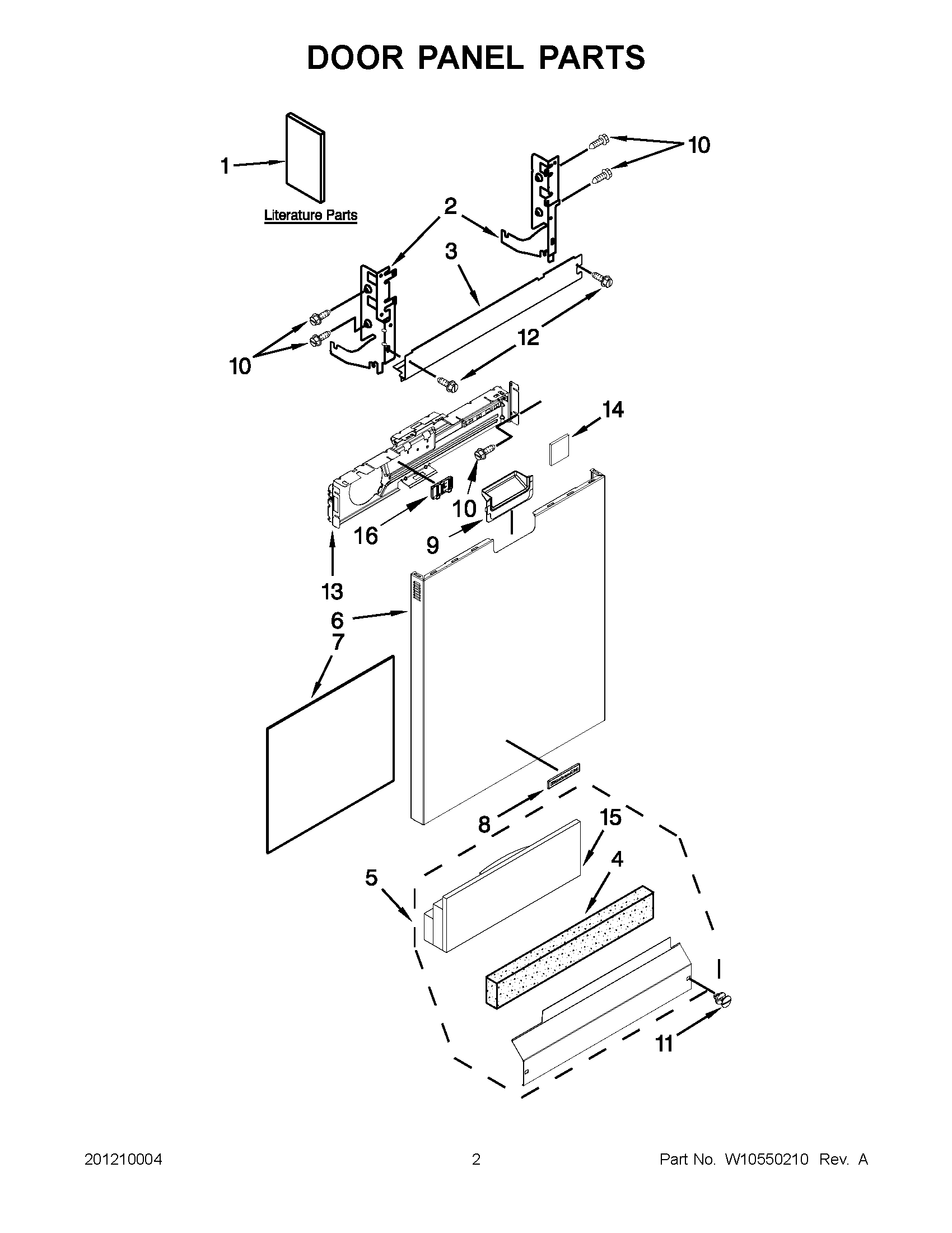

KUDS30IBBL1 01 – DOOR PANEL PARTS

KUDS30IBBL1 01 – DOOR PANEL PARTS

Written by

in

KUDS30IBBL1 01 – DOOR PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
5WPW10368717 Whirlpool Dishwasher Panel
5WPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6WPW10195532 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 8 & 9) (BISCUIT/BISQUE)
6WPW10195531 Whirlpool Dishwasher Panel
7W11126003 Whirlpool Dishwasher Insulation Pad
8WPW10243393 Whirlpool Dishwasher Nameplate
8WPW10243392 Whirlpool Dishwasher Nameplate
8WPW10243391 Whirlpool Refrigerator Nameplate
8NAMEPLATE (BISCUIT/BISQUE)
9W10563099 Whirlpool Dishwasher Pocket Handle
9POCKET ASSEMBLY (WHITE)
9W10195653 Whirlpool Dishwasher Handle Pocket
9W10195655 Whirlpool Dishwasher Handle Pocket
10WP3400071 Whirlpool Screw
11WPW10503550 Whirlpool Dishwasher Retainer
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
11WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14BLOCK, FOAM
15SHIELD
16W10463662 Whirlpool Dishwasher Spacer Plate
