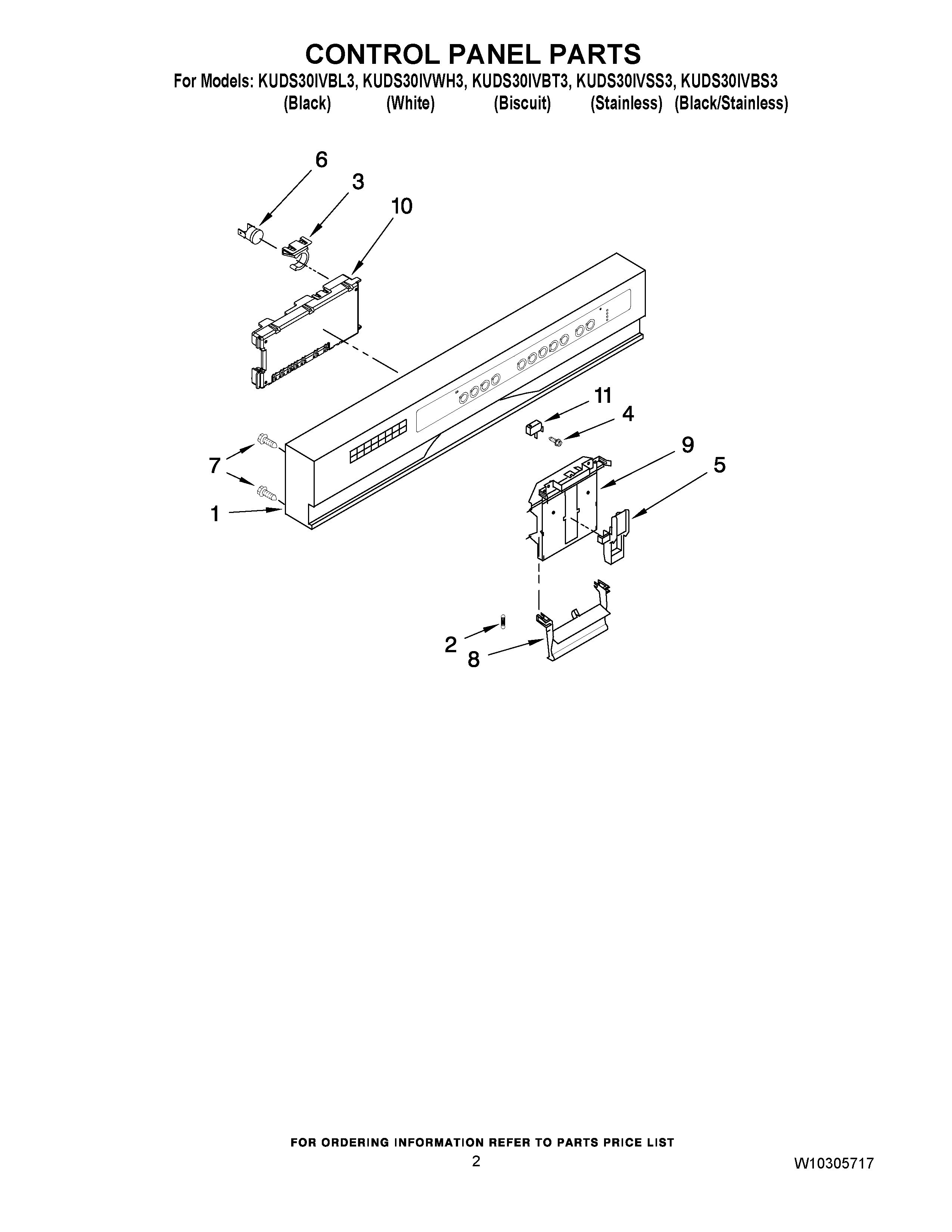

KUDS30IVBL3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)
1	CONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT)
1	WPW10250018 Whirlpool Dishwasher Control Panel
1	WPW10250015 Whirlpool Control Panel
2	WP8268540 Whirlpool Door Handle Spring
3	Clip, BI-Metal
4	WP3400412 Whirlpool Dishwasher Screw
5	WP8524471 Whirlpool Dishwasher Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WPW10348409 Whirlpool Screw
8	WP8269117 Whirlpool Dishwasher Handle
9	8193882 Whirlpool Dishwasher Primary Latch Bolt
10	WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
11	WP8269209 Whirlpool Door Switch
