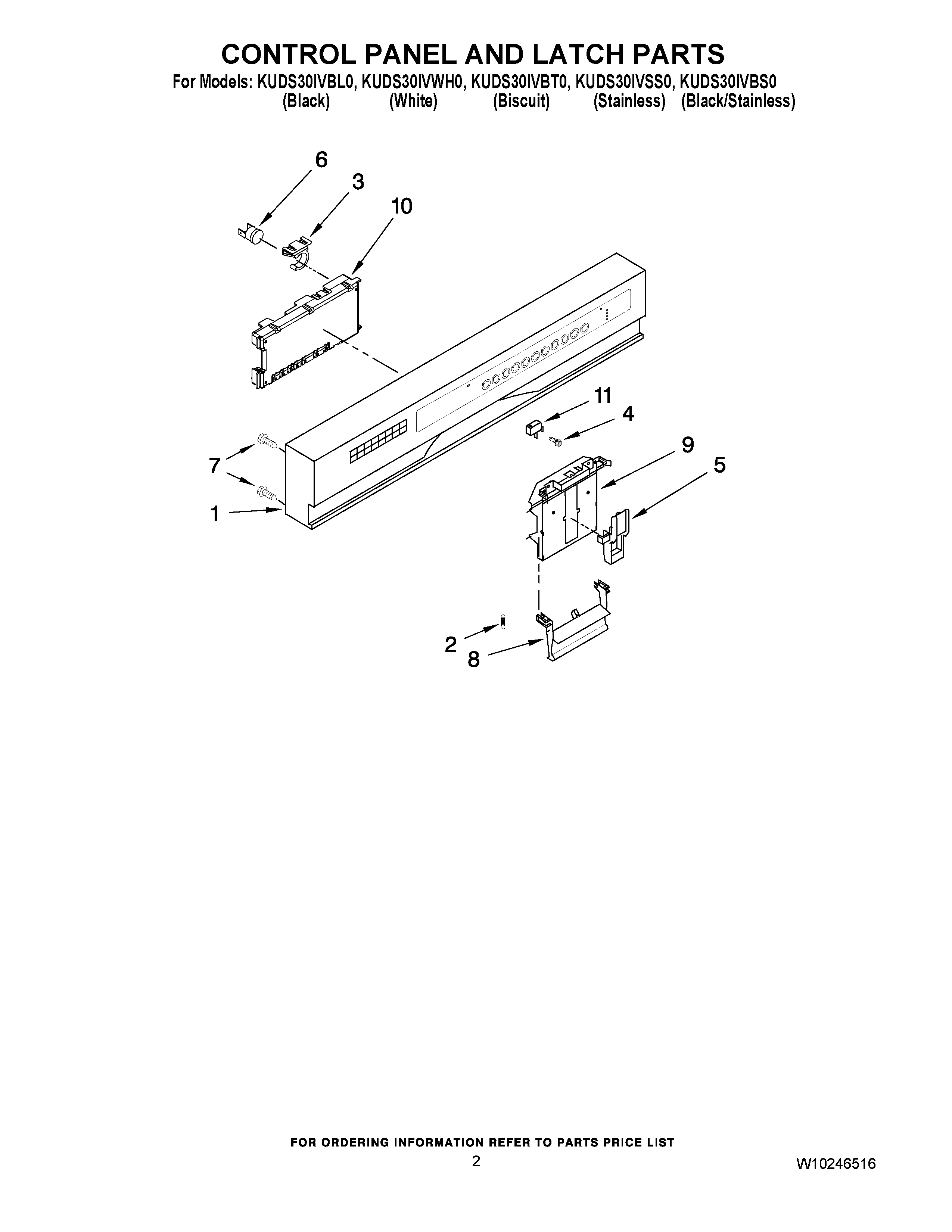

KUDS30IVBS0 02 – CONTROL PANEL AND LATCH PARTSadmin2025-04-26T12:45:46+00:00KUDS30IVBS0 02 – CONTROL PANEL AND LATCH PARTS ProductsPositionProduct1Console Assembly (Includes Insert) (Stainless)1Console Assembly (Includes Insert) (Biscuit)1Console Assembly (Includes Insert) (White)1WPW10250015 Whirlpool Control Panel2WP8268540 Whirlpool Door Handle Spring3Clip, BI-Metal4WP3400412 Whirlpool Dishwasher Screw5WP8524471 Whirlpool Dishwasher Actuator6W10258275 Whirlpool Dishwasher Bimetal Fuse7WPW10348409 Whirlpool Screw8WP8269117 Whirlpool Dishwasher Handle98193882 Whirlpool Dishwasher Primary Latch Bolt10WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board11WP8269209 Whirlpool Door Switch
