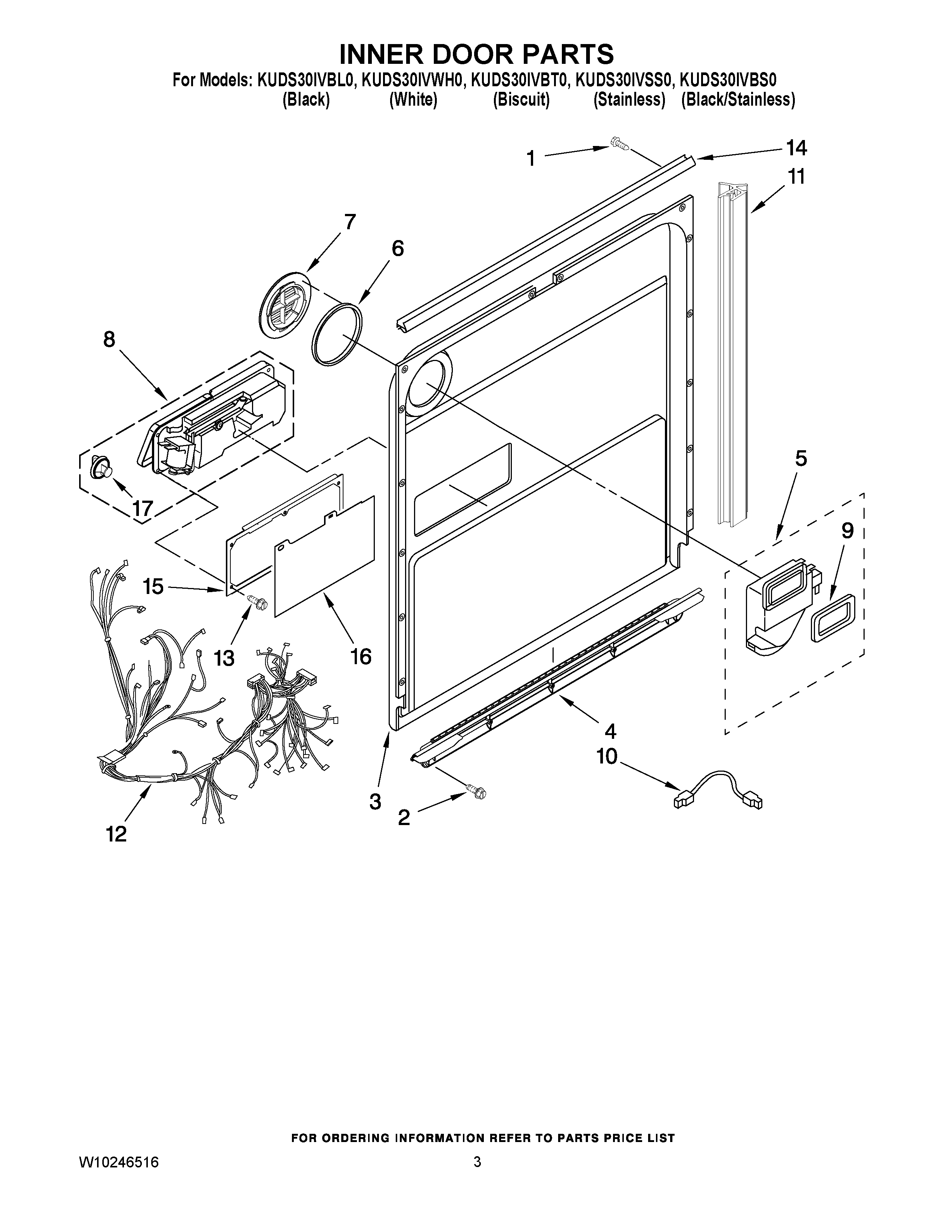

KUDS30IVBS0 03 – INNER DOOR PARTSadmin2025-04-26T12:44:25+00:00KUDS30IVBS0 03 – INNER DOOR PARTS ProductsPositionProduct1WPW10348409 Whirlpool Screw2W11631670 Whirlpool Screw3INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)4WPW10077883 Whirlpool Dishwasher Air Inlet5WPW10164259 Whirlpool Dishwasher Vent Assembly6WP8269259 Whirlpool Air Vent Gasket7WPW10077877 Whirlpool Air Vent Deflector8WPW10195175 Whirlpool Dishwasher Detergent Dispenser9WP8269258 Whirlpool Dishwasher Gasket10Harness, Vent Motor118574160 Whirlpool Dishwasher Seal12Wiring Harness13WPW10177098 Whirlpool Dishwasher Screw14WP8535660 Whirlpool Dishwasher Seal15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket16WP8531865 Whirlpool Dishwasher Door Shield17WPW10077881 Whirlpool Dispenser Cap
