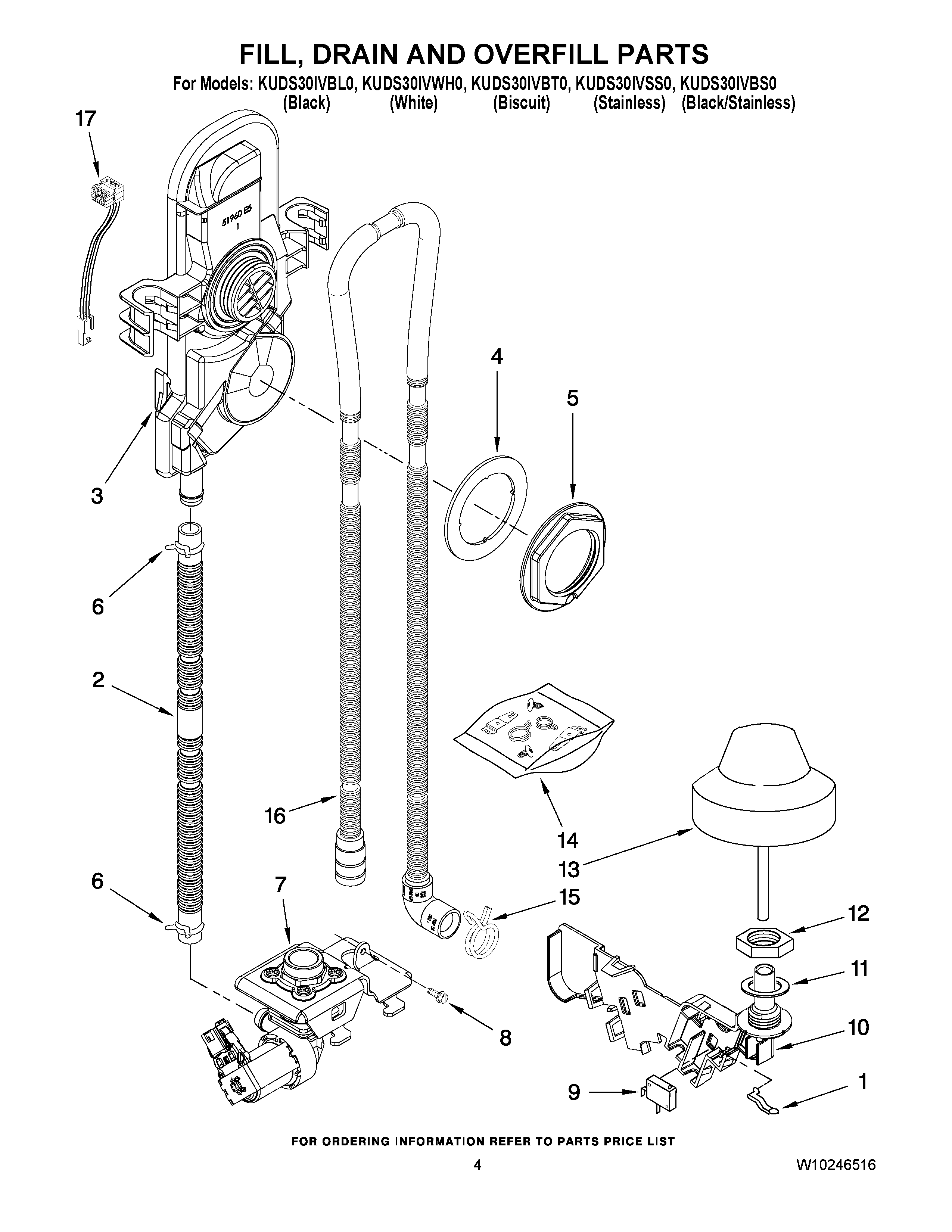

KUDS30IVBS0 04 – FILL, DRAIN AND OVERFILL PARTSadmin2025-04-26T12:45:09+00:00KUDS30IVBS0 04 – FILL, DRAIN AND OVERFILL PARTS ProductsPositionProduct1WP8268892 Whirlpool Dishwasher Lever2WPW10041920 Whirlpool Dishwasher Fill Hose3Water Inlet (Also Order Item 4)4WP8531323 Whirlpool Gasket Seal5WPW10508676 Whirlpool Dishwasher Tube Nut6WP596669 Whirlpool Hose Clamp7W10648041 Whirlpool Water Inlet Valve8WP489069 Whirlpool Compactor Screw9WP8268909 Whirlpool Dishwasher Switch108193506 Whirlpool Dishwasher Switch11WP8531743 Whirlpool Dishwasher Float Switch Base Gasket12WP9741998 Whirlpool Dishwasher Nut13WPW10077871 Whirlpool Dishwasher Float Assembly14WPW10292152 Whirlpool Hardware Kit15WP356138 Whirlpool Hose Clamp16WPW10545278 Whirlpool Drain Hose17Wire, Jumper
