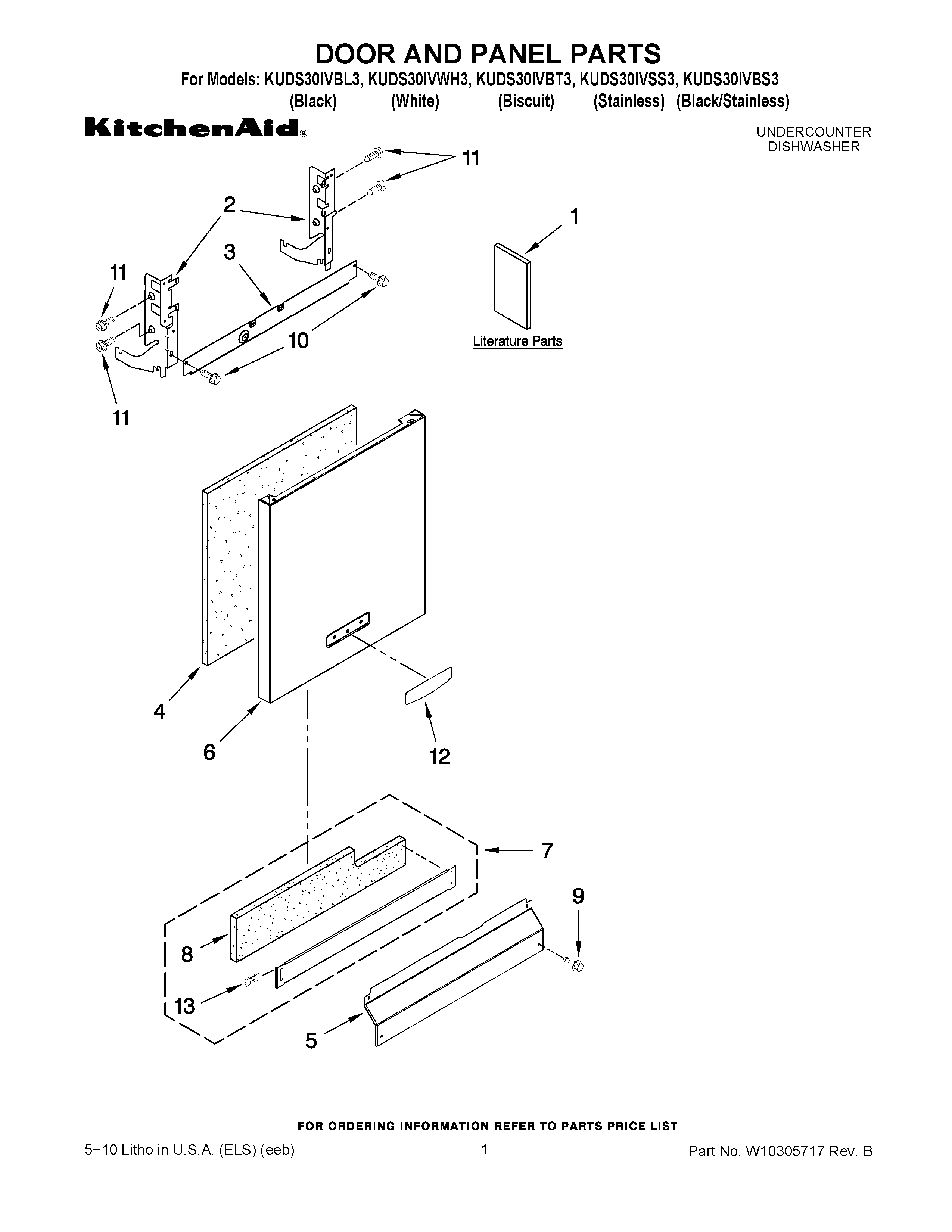

KUDS30IVBS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Tech Sheet
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE ENGLISH & FRENCH
1GUIDE, USE & CARE (SPANISH)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BISCUIT)
6W10349340 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (WHITE)
7WPW10586591 Whirlpool Dishwasher Toe Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
7Toe Panel (Includes Items 7 & 11) (Biscuit)
8SHIELD
9WPW10503550 Whirlpool Dishwasher Retainer
9WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP302868 Whirlpool Screw
10WP489069 Whirlpool Compactor Screw
11WP3400071 Whirlpool Screw
12WPW10243393 Whirlpool Dishwasher Nameplate
12NAMEPLATE (BISCUIT/BISQUE)
12WPW10243392 Whirlpool Dishwasher Nameplate
12WPW10243391 Whirlpool Refrigerator Nameplate
13WP8269016 Whirlpool Clip Assembly
