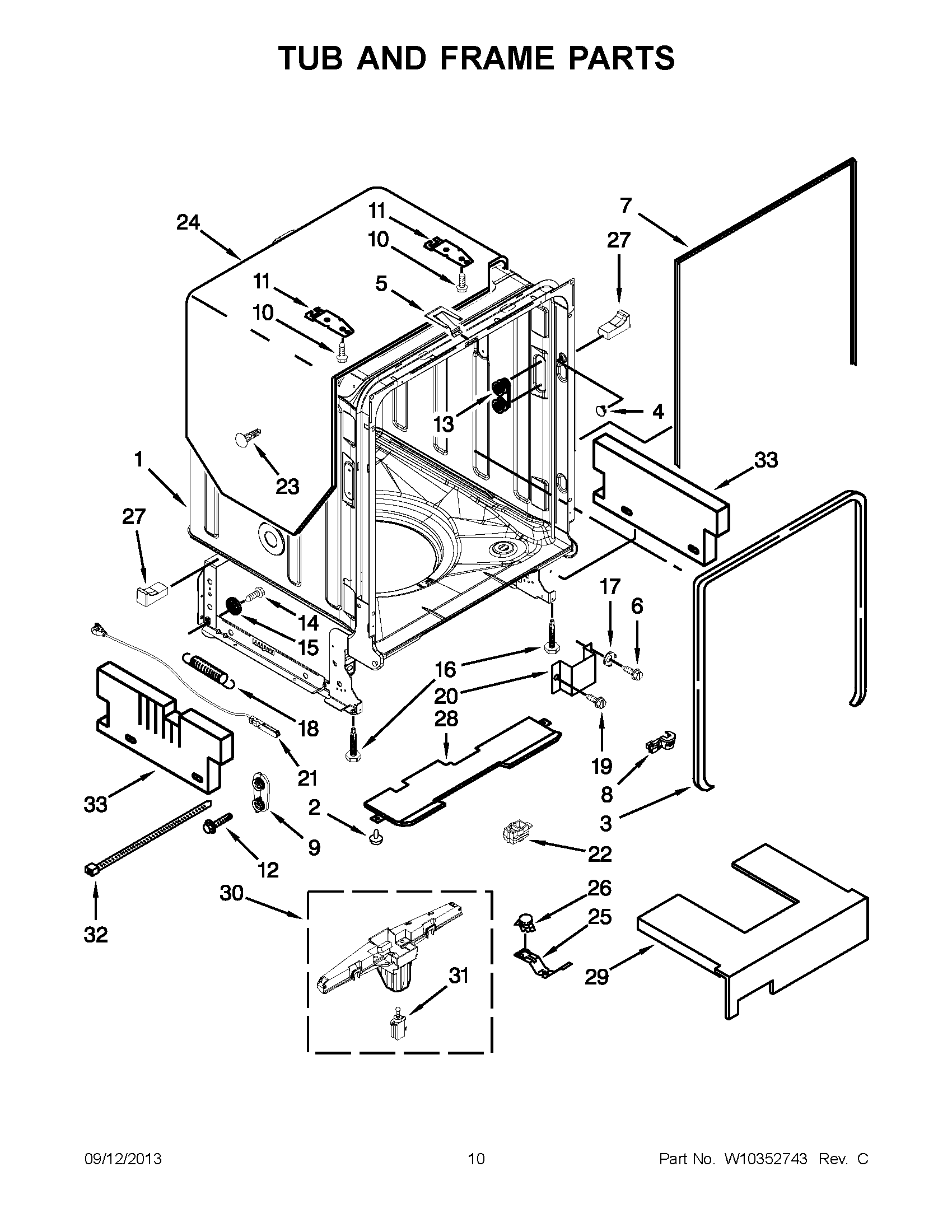

KUDS30IXBL0 06 – TUB AND FRAME PARTS
Written by
in
KUDS30IXBL0 06 – TUB AND FRAME PARTS
Products
Position
Product
1
WPW10511199 Whirlpool Dishwasher Tub
2
WP3400924 Whirlpool Dishwasher Retainer
3
W11177741 Whirlpool Dishwasher Door Gasket
4
W10795980 Whirlpool Cap
5
WPW10300779 Whirlpool Dishwasher Strike
6
WP3400014 Whirlpool Dishwasher Screw
7
SEAL
8
W11384788 Whirlpool Dishwasher Relief Strainer
9
WPW10084086 Whirlpool Dishwasher Mount
10
WP308685 Whirlpool Microwave Screw
11
WP8269145 Whirlpool Dishwasher Mounting Bracket
12
WP3400074 Whirlpool Dishwasher Screw
13
WPW10505748 Whirlpool Dishwasher Dishrack Wheel
14
Screw (2)
15
WP8268977 Whirlpool Dishwasher Wheel
16
8193716 Whirlpool Leveling Leg
17
WP3378128 Whirlpool Dishwasher Washer
18
SPRING
19
WP3400892 Whirlpool Dishwasher Screw
20
WP8268991 Whirlpool Dishwasher Cover Assembly
21
8194001 Whirlpool Dishwasher Door Balance Link Kit
22
W10292870 Whirlpool Dishwasher Housing
23
WP304666 Whirlpool Dishwasher Retainer
24
W10877094 Whirlpool Shield
25
W10195090 Whirlpool Stat Bracket
26
WPW10195091 Whirlpool Thermostat
27
W10195631 Whirlpool Dishwasher Tank Spacer
27
W10195630 Whirlpool Dishwasher Spacer
28
W11747584 Whirlpool Insulation Pad
29
SHIELD
30
WP8572661 Whirlpool Dishwasher Actuator
31
Motor, Wax
32
Strap
33
SHIELD, SIDE TUB
←
