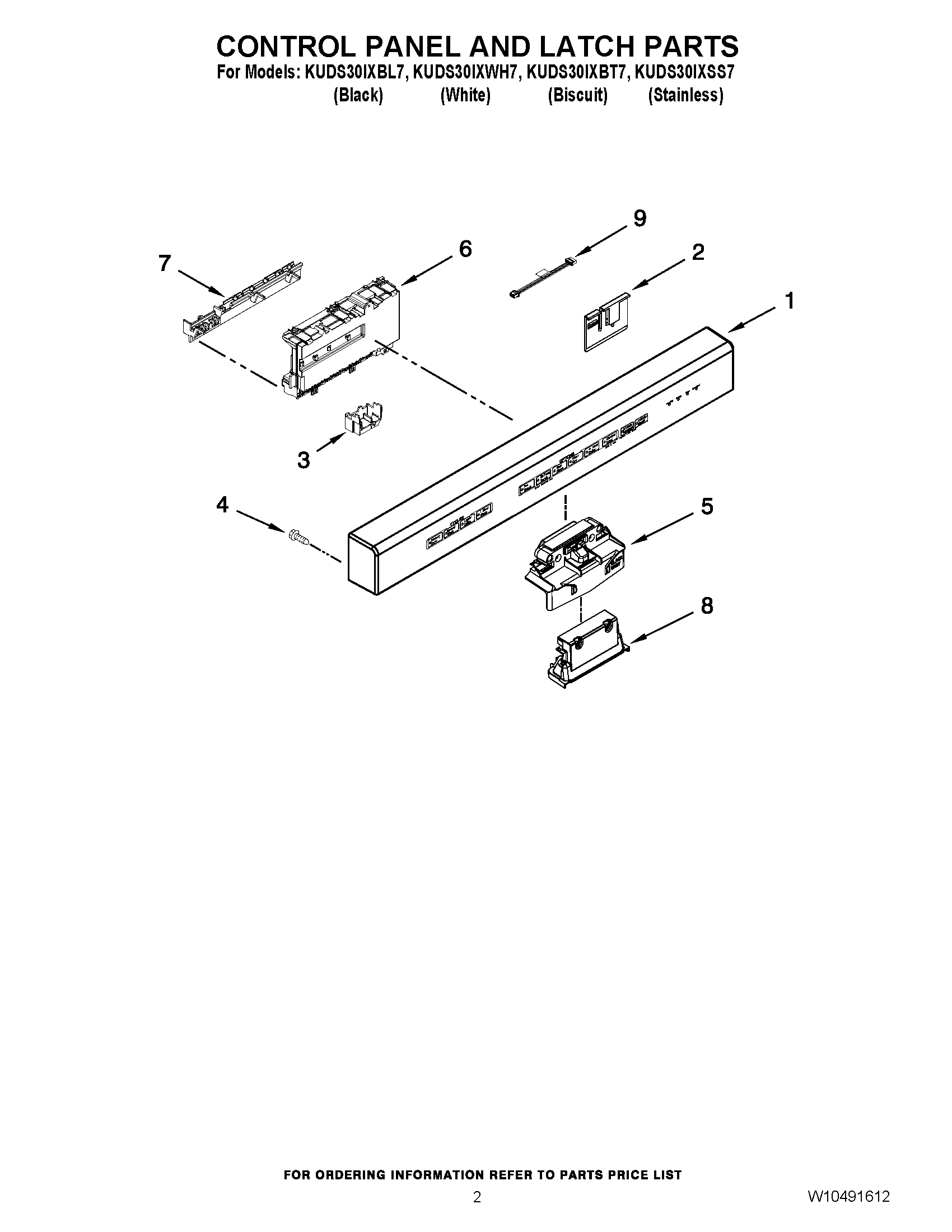

KUDS30IXBT7 02 – CONTROL PANEL AND LATCH PARTS

KUDS30IXBT7 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDS30IXBT7 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500174 Whirlpool Control Panel
1WPW10500173 Whirlpool Dishwasher Control Panel
1WPW10500172 Whirlpool Dishwasher Control Panel
1WPW10500175 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10195834 Whirlpool Dishwasher Handle
8HANDLE (STAINLESS)
8HANDLE (WHITE)
8WPW10195718 Whirlpool Dishwasher Handle
9WPW10195666 Whirlpool Dishwasher Wire Assembly
