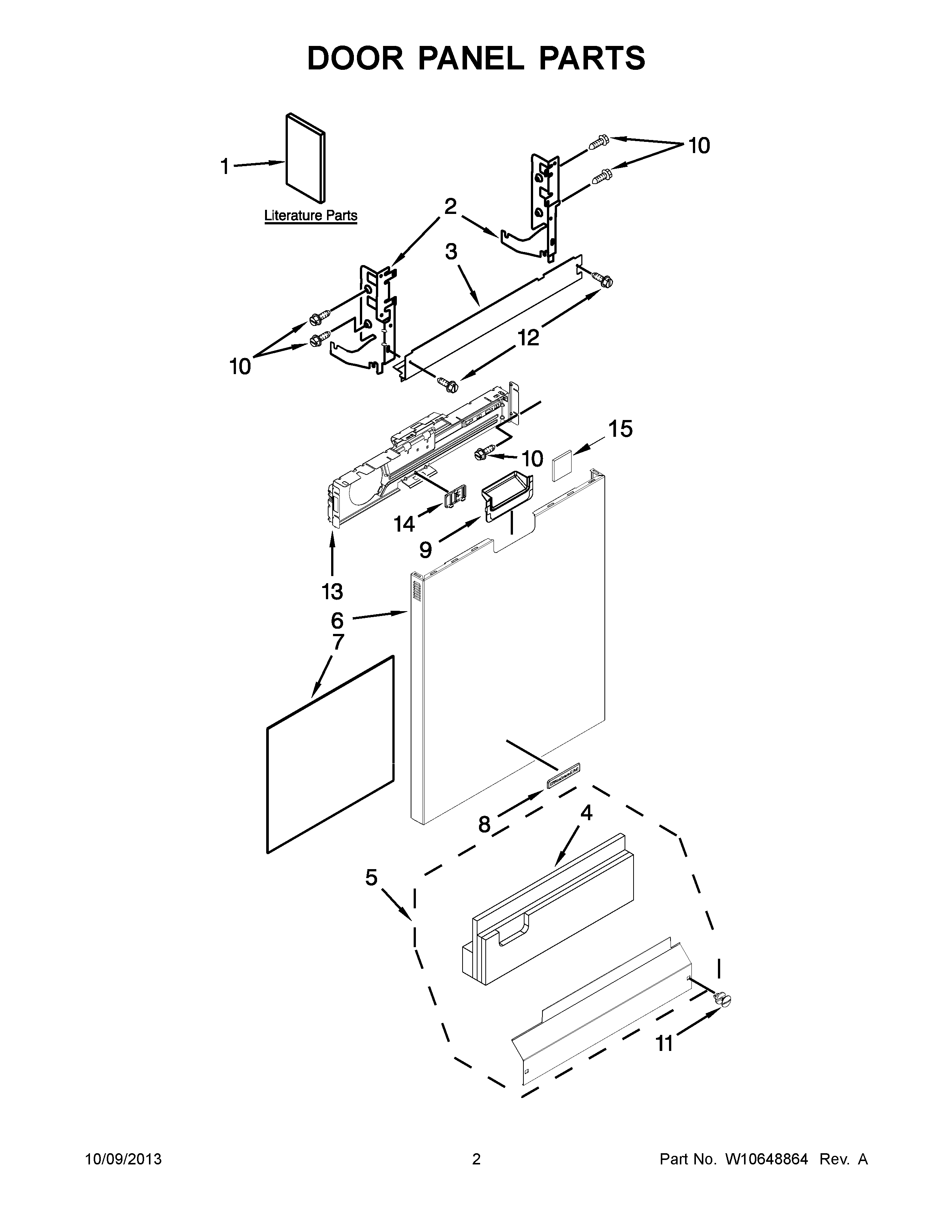

KUDS30IXSSA 02 – DOOR PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET, ENGLISH
1	USE & CARE GUIDE
1	TECH SHEET, FRENCH
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	W10526116 Whirlpool Dishwasher Panel
5	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	WPW10195531 Whirlpool Dishwasher Panel
6	PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6	WPW10195532 Whirlpool Dishwasher Panel
6	PANEL, FULL FRONT (INCLUDES ITEMS 8 & 9) (BISCUIT/BISQUE)
7	W11126003 Whirlpool Dishwasher Insulation Pad
8	WPW10243392 Whirlpool Dishwasher Nameplate
8	WPW10243393 Whirlpool Dishwasher Nameplate
8	WPW10243391 Whirlpool Refrigerator Nameplate
8	NAMEPLATE (BISCUIT/BISQUE)
9	W10195655 Whirlpool Dishwasher Handle Pocket
9	POCKET ASSEMBLY (WHITE)
9	W10563099 Whirlpool Dishwasher Pocket Handle
9	W10195653 Whirlpool Dishwasher Handle Pocket
10	WP3400071 Whirlpool Screw
11	WPW10503550 Whirlpool Dishwasher Retainer
11	WPW10503549 Whirlpool Dishwasher Retainer Clip
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WP489069 Whirlpool Compactor Screw
13	W11116870 Whirlpool Dishwasher Control Bracket
14	W10463662 Whirlpool Dishwasher Spacer Plate
15	BLOCK, FOAM
