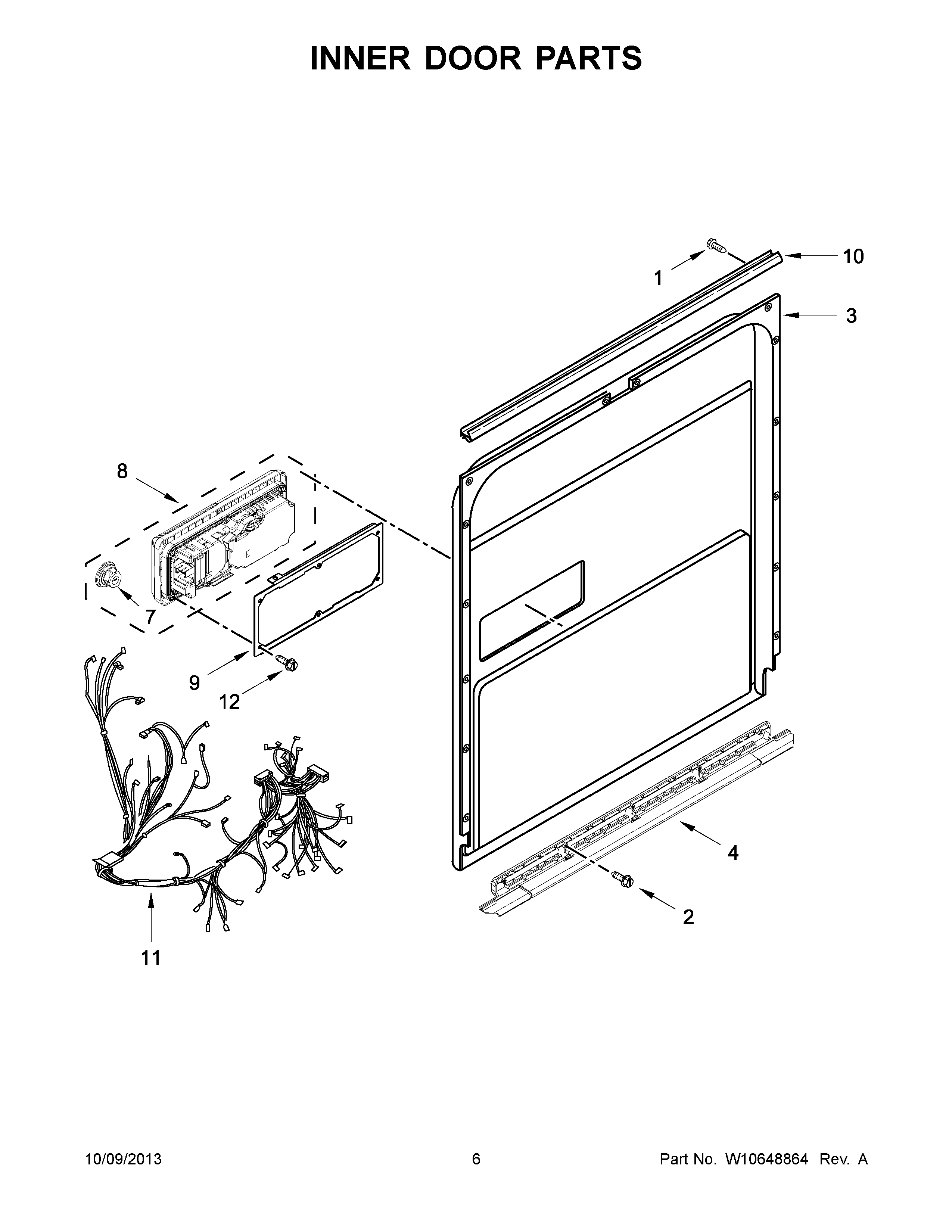

KUDS30IXWHA 04 – INNER DOOR PARTS

KUDS30IXWHA 04 – INNER DOOR PARTS

Written by

in

KUDS30IXWHA 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WIRING HARNESS
6WPW10177098 Whirlpool Dishwasher Screw
7WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
8DISPENSER (DISHWASHER)
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10WPW10195007 Whirlpool Dishwasher Seal
