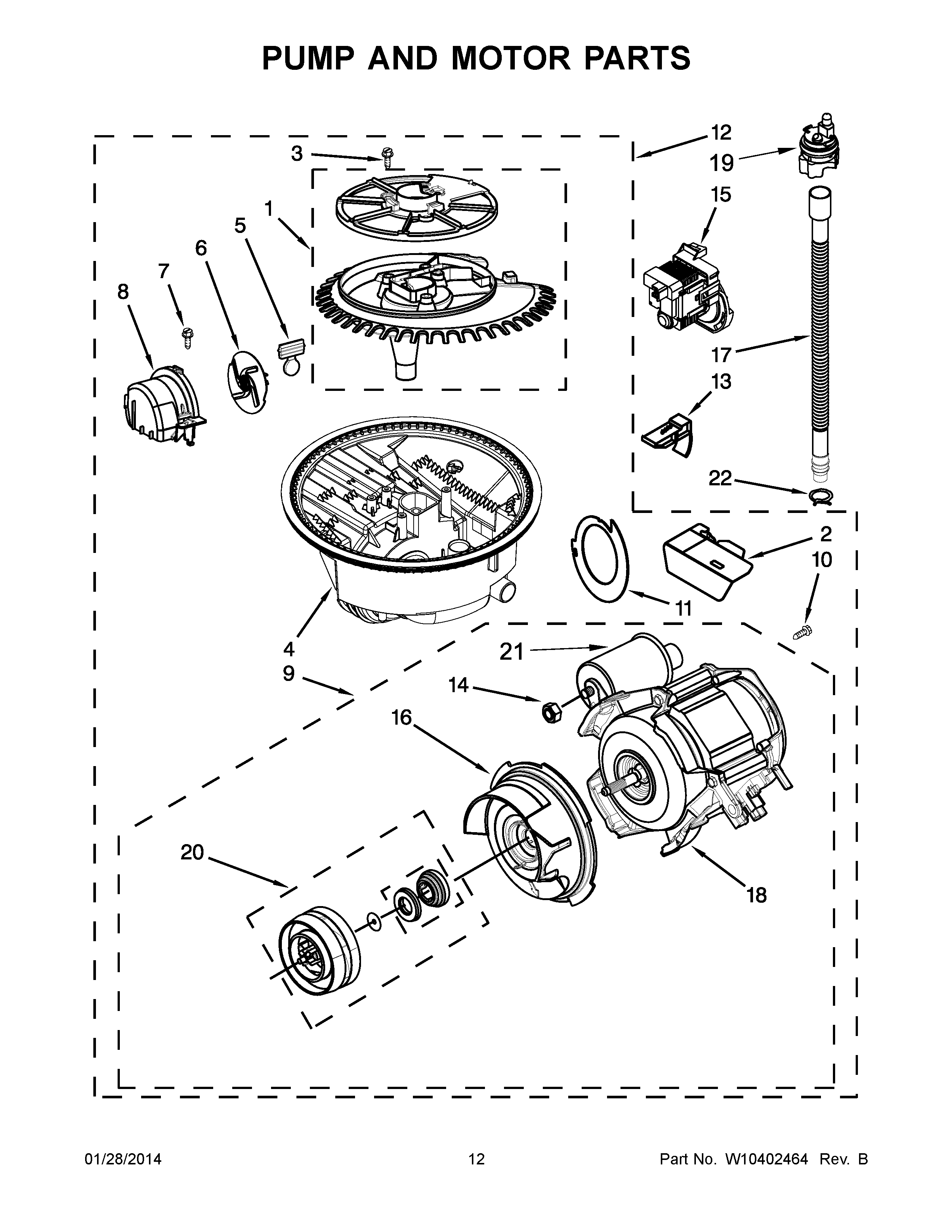

KUDS30SXBL0 07 – PUMP AND MOTOR PARTS

Products

Position	Product
1	8193918 Whirlpool Accumulator
2	8283527 Whirlpool Shield
3	SCREW
4	W10323387 Whirlpool Dishwasher Sump Assembly
5	WP8268375 Whirlpool Dishwasher Check Valve
6	W10083957V Whirlpool Dishwasher Chopper
7	WP9741232 Whirlpool Dishwasher Screw
8	WP8531857 Whirlpool Dishwasher Protector
9	WPW10757216 Whirlpool Dishwasher Pump Motor
10	3400217 Whirlpool Dishwasher Screw
11	W10084567 Whirlpool Dishwasher Screen
12	W10806703 Whirlpool Dishwasher Pump and Motor
13	WPW10300599 Whirlpool Dishwasher Sump Tab
14	8533949 Whirlpool Dishwasher Nut
15	WPW10348269 Whirlpool Washer Drain Pump
16	W11622922 Whirlpool Dishwasher Volute
17	8269144A Whirlpool Dishwasher Drain Hose
18	W10200940 Whirlpool Dishwasher Pump Motor
19	WPW10705575 Whirlpool Dishwasher Sensor
20	8193951A Whirlpool Impeller Assembly
21	WPW10334457 Whirlpool Dishwasher Capacitor
22	WP8269146 Whirlpool Dishwasher Clamp
