KUDS30SXSS1 03 – CONTROL PANEL AND LATCH PARTS

KUDS30SXSS1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

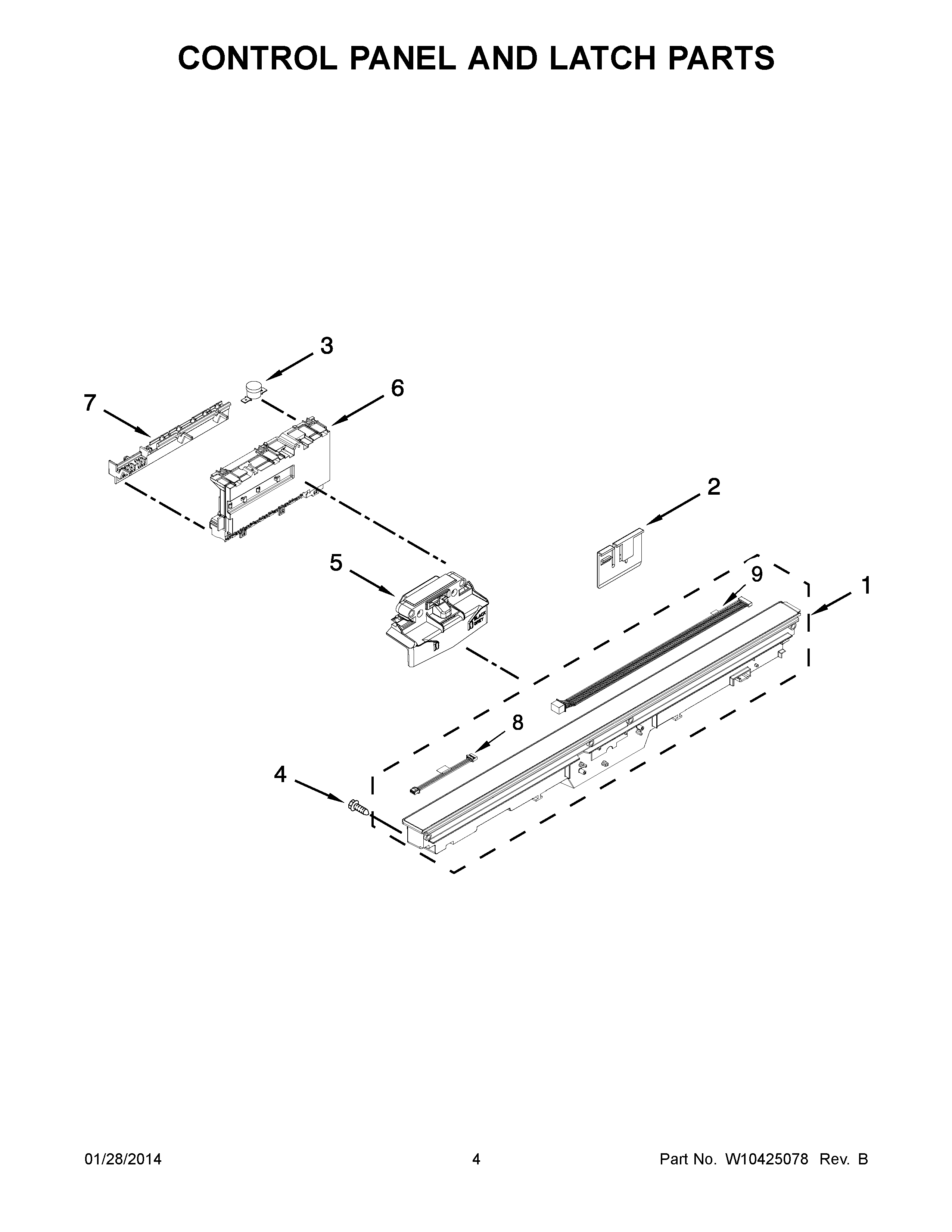

KUDS30SXSS1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (BLACK)
1CONSOLE ASSEMBLY (STAINLESS)
1WPW10481145 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6WPW10355481 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10315814 Whirlpool Dishwasher Wire Harness
9WPW10195204 Whirlpool Dishwasher Wire
