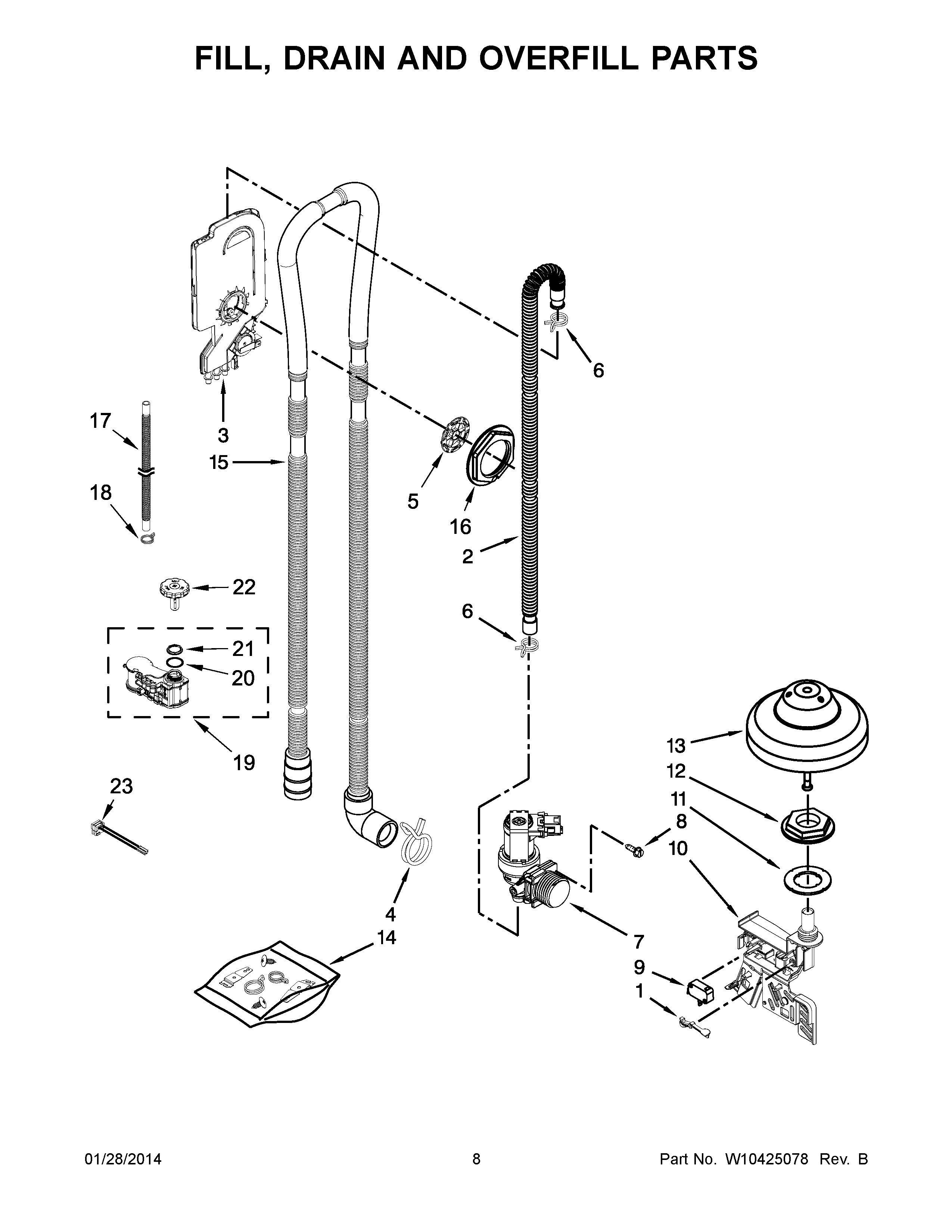

KUDS30SXSS1 05 – FILL, DRAIN AND OVERFILL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	SALT
1	WPW10195037 Whirlpool Lever Assembly
2	W10743461 Whirlpool Dishwasher Fill Hose
3	WPW10458714 Whirlpool Dishwasher Regen Meter
4	WP356138 Whirlpool Hose Clamp
5	W11387338 Whirlpool Dishwasher Nut
6	WP596669 Whirlpool Hose Clamp
7	W11175767 Whirlpool Dishwasher Inlet Valve
8	WP489069 Whirlpool Compactor Screw
9	WPW10195039 Whirlpool Dishwasher Float Switch
10	W10873429 Whirlpool Housing
11	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12	WPW10195038 Whirlpool Dishwasher Nut
13	WPW10195036 Whirlpool Dishwasher Float
14	WPW10292152 Whirlpool Hardware Kit
15	W10545279 Whirlpool Dishwasher Drain Hose
16	WPW10213825 Whirlpool Dishwasher Tube Nut
17	W10346255 Whirlpool Dishwasher Drain Hose
19	TANK, WATER SOFTENER
20	GASKET
21	WPW10195058 Whirlpool Dishwasher Tube Nut
22	W10327489 Whirlpool Dishwasher Cap
23	W10367058 Whirlpool Dishwasher Wire
