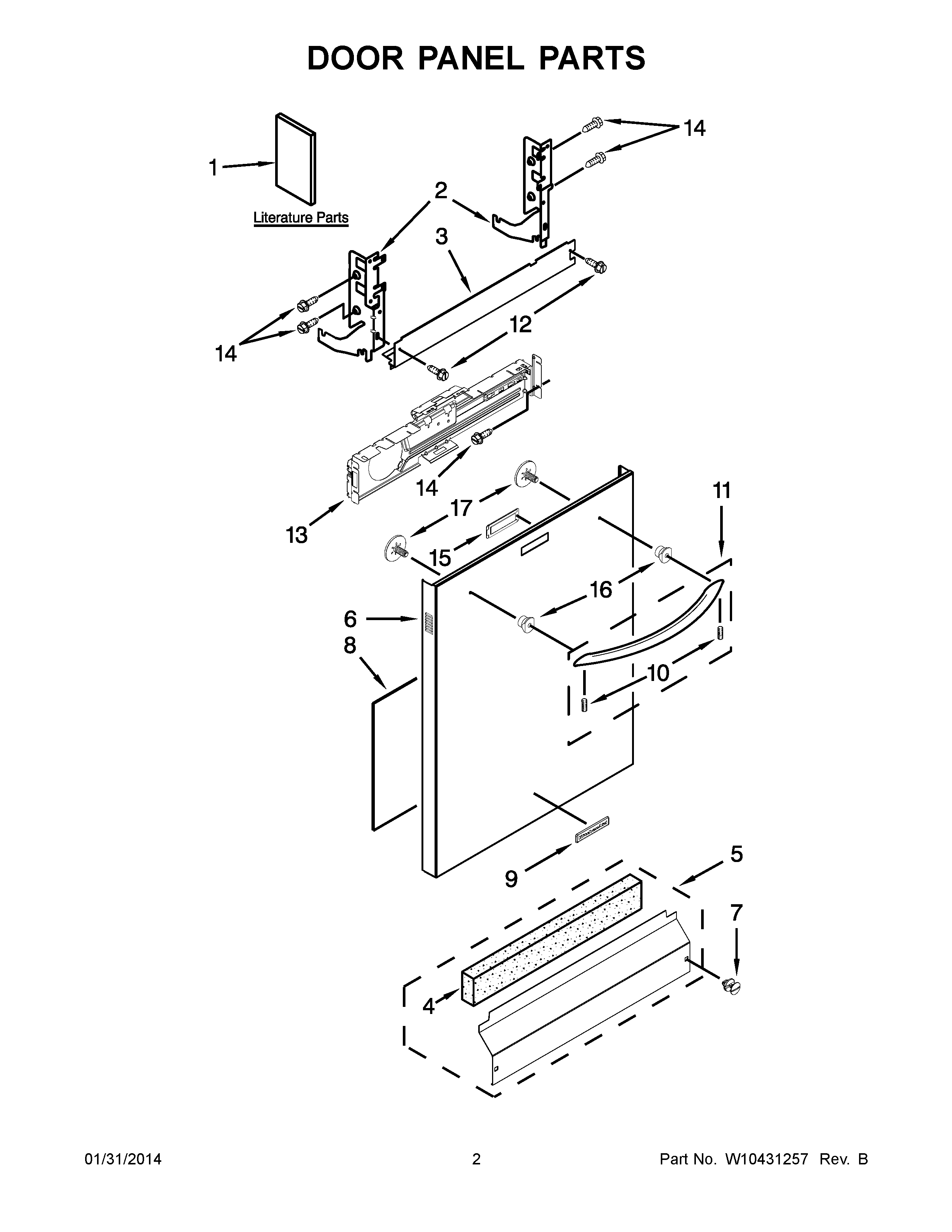

KUDS30SXSS2 02 – DOOR PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET/ENGLISH
1	TECH SHEET/FRENCH
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
1	ACCESSORY KIT, WATER SOFTNER (INCLUDES HARDNESS TEST STRIP, SALT FUNNEL & INSTRUCTIONS)
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	WPW10526114 Whirlpool Dishwasher Access Panel
5	WPW10526115 Whirlpool Dishwasher Panel
6	W10373938 Whirlpool Dishwasher Panel
6	WPW10195869 Whirlpool Control Panel
6	W10373937 Whirlpool Dishwasher Panel
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	W11126003 Whirlpool Dishwasher Insulation Pad
9	WPW10243391 Whirlpool Refrigerator Nameplate
9	WPW10243392 Whirlpool Dishwasher Nameplate
9	WPW10243393 Whirlpool Dishwasher Nameplate
10	WPW10307614 Whirlpool Dishwasher Screw
11	W10195738A Whirlpool Stainless Steel Door Handle
11	W10195736A Whirlpool Dishwasher Handle
11	W10195735A Whirlpool Dishwasher Door Handle Black
12	WP489069 Whirlpool Compactor Screw
13	W11116870 Whirlpool Dishwasher Control Bracket
14	WP3400071 Whirlpool Screw
15	W10457051 Whirlpool Dishwasher Display Lens
16	W11157086 Whirlpool Dishwasher Door Handle Stud
17	W10826179 Whirlpool Dishwasher Screw
