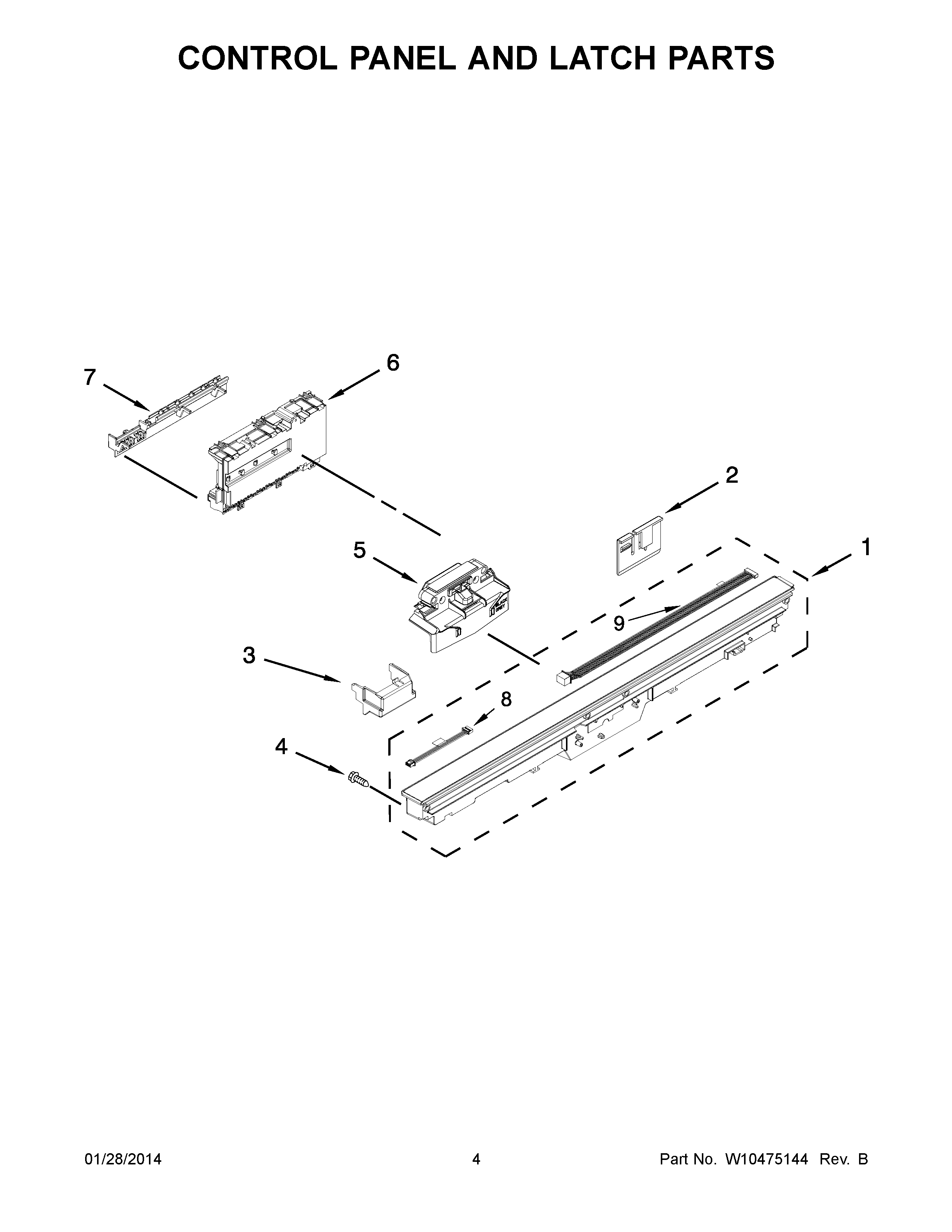

KUDS30SXSS4 03 – CONTROL PANEL AND LATCH PARTS

KUDS30SXSS4 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDS30SXSS4 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481145 Whirlpool Dishwasher Control Panel
1CONSOLE ASSEMBLY (STAINLESS)
1WPW10481146 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5W10619006 Whirlpool Door Latch
6W10479761 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10528492 Whirlpool Dishwasher Wire
9WPW10195204 Whirlpool Dishwasher Wire
