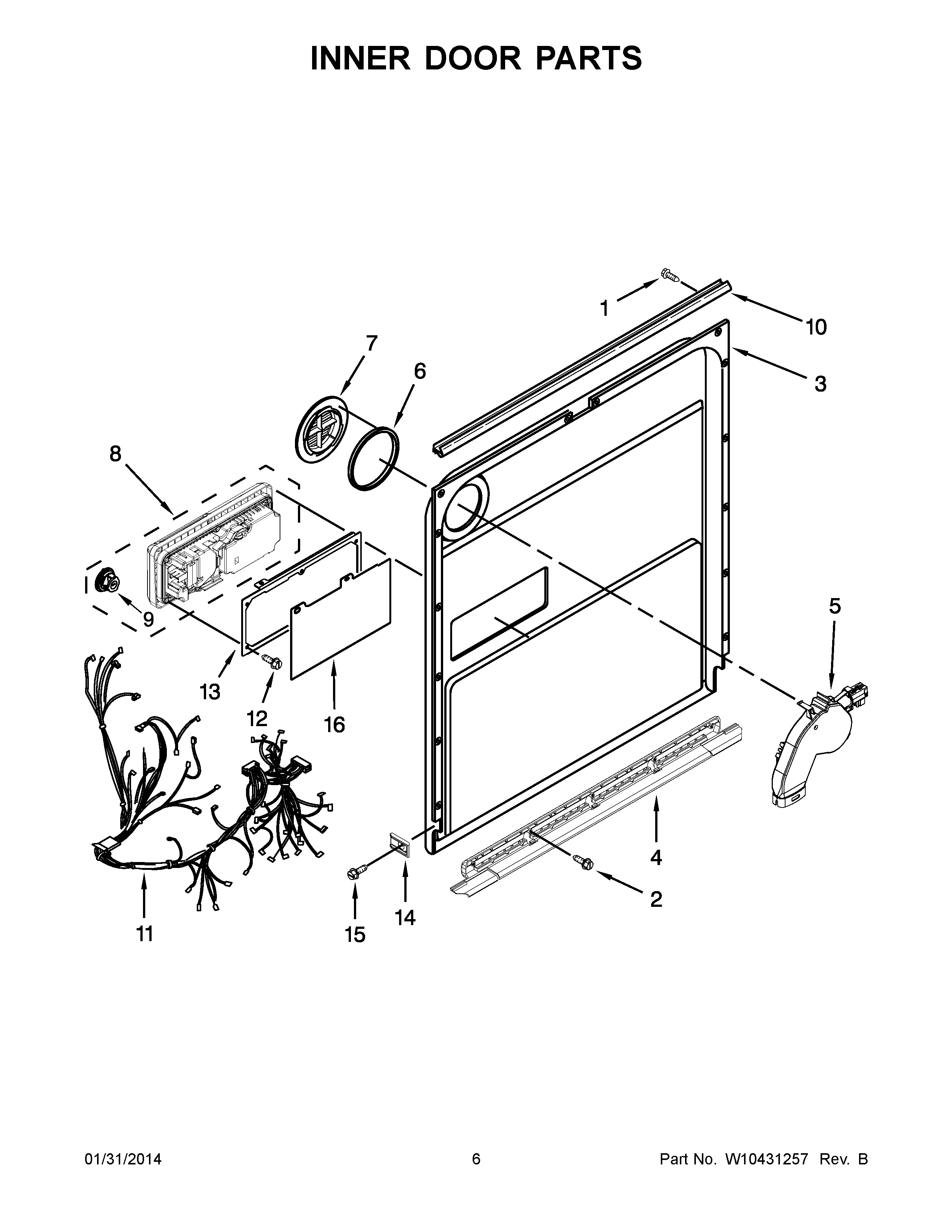

KUDS30SXWH2 04 – INNER DOOR PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	W11631670 Whirlpool Screw
3	WPW10467363 Whirlpool Dishwasher Inner Door
4	WPW10497235 Whirlpool Dishwasher Lower Door Seal
5	WPW10469575 Whirlpool Dishwasher Vent
6	WP8269259 Whirlpool Air Vent Gasket
7	WPW10195032 Whirlpool Dishwasher Deflector
8	WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9	WPW10077881 Whirlpool Dispenser Cap
10	WPW10195007 Whirlpool Dishwasher Seal
11	WIRING HARNESS
12	WPW10177098 Whirlpool Dishwasher Screw
13	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
14	W10195837 Whirlpool Dishwasher Barrier
15	WP3400071 Whirlpool Screw
16	W10385977 Whirlpool Dishwasher Cover Assembly
