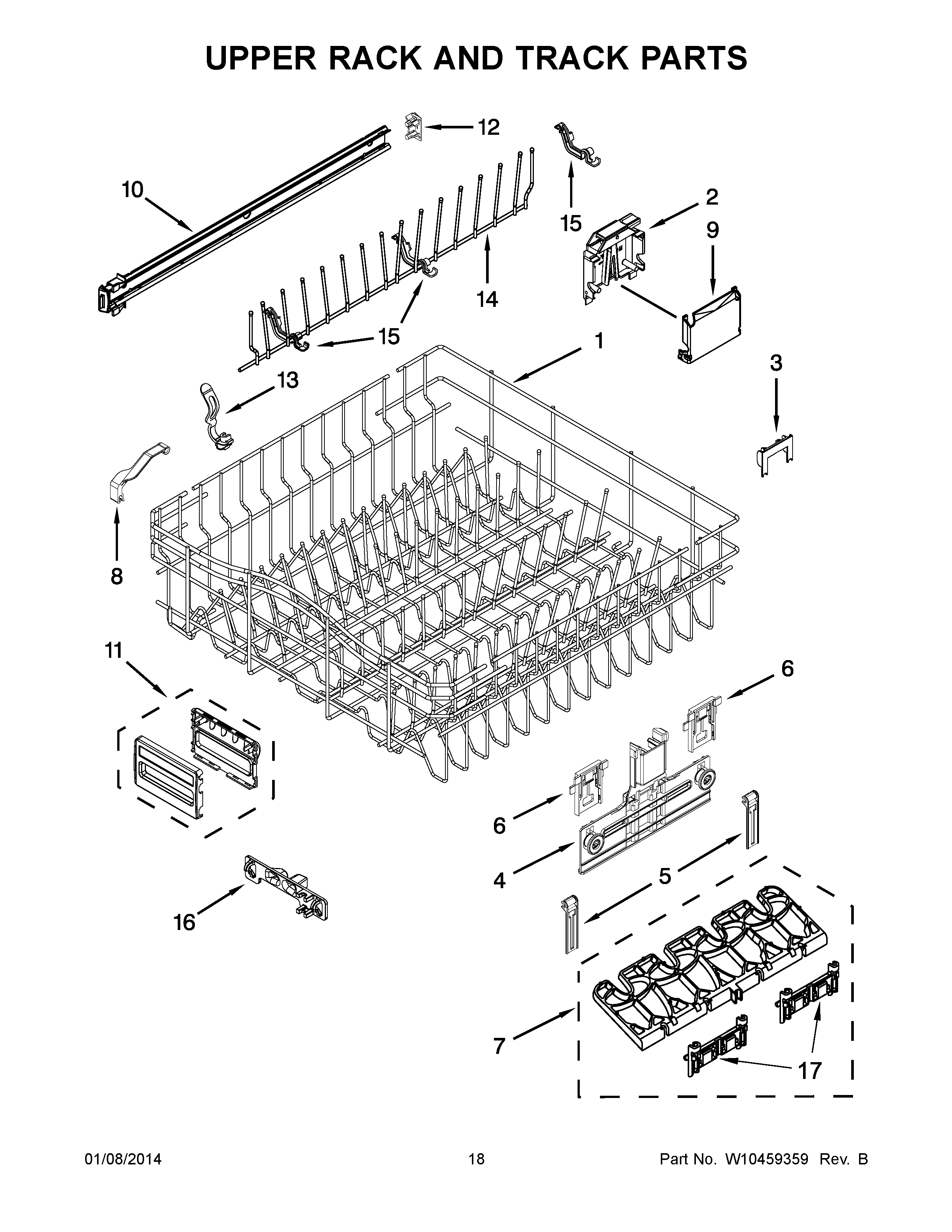

KUDS30SXWH3 10 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10728863 Whirlpool Upper Dishrack Assembly
2	WPW10588165 Whirlpool Adjuster Housing
2	WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3	WPW10250160 Whirlpool Clip
4	W10712394 Whirlpool Dishwasher Wheel and Arm Adjuster Kit
5	WPW10195839 Whirlpool Dishwasher Rack Adjuster
6	WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7	WPW10082649 Whirlpool Dishwasher Cup Shelf
8	WPW10267076 Whirlpool Guard Clip
9	COVER
10	TRACK-DISHRACK
11	W11110542 Whirlpool Dishwasher Handle
12	WPW10195622 Whirlpool Stop
13	WPW10077844 Whirlpool Dishwasher Clip
14	W10727426 Whirlpool Dishwasher Rack Tine
15	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
16	WP8539102 Whirlpool Dishwasher Positioner
17	WPW10082848 Whirlpool Clip
