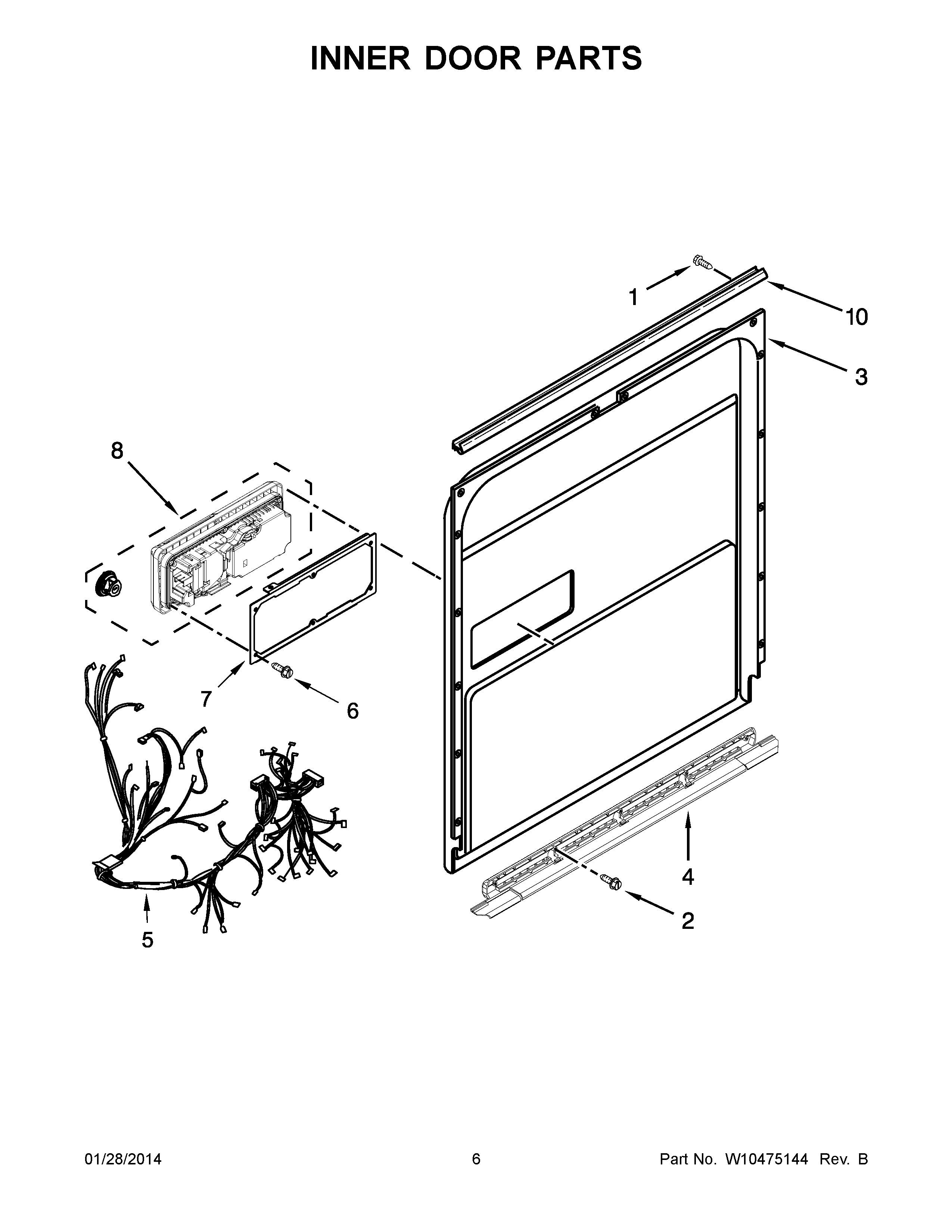

KUDS30SXWH4 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5W10496099 Whirlpool Dishwasher Wire Harness
6WPW10177098 Whirlpool Dishwasher Screw
7WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
8DISPENSER (DISHWASHER)
10WPW10195007 Whirlpool Dishwasher Seal
