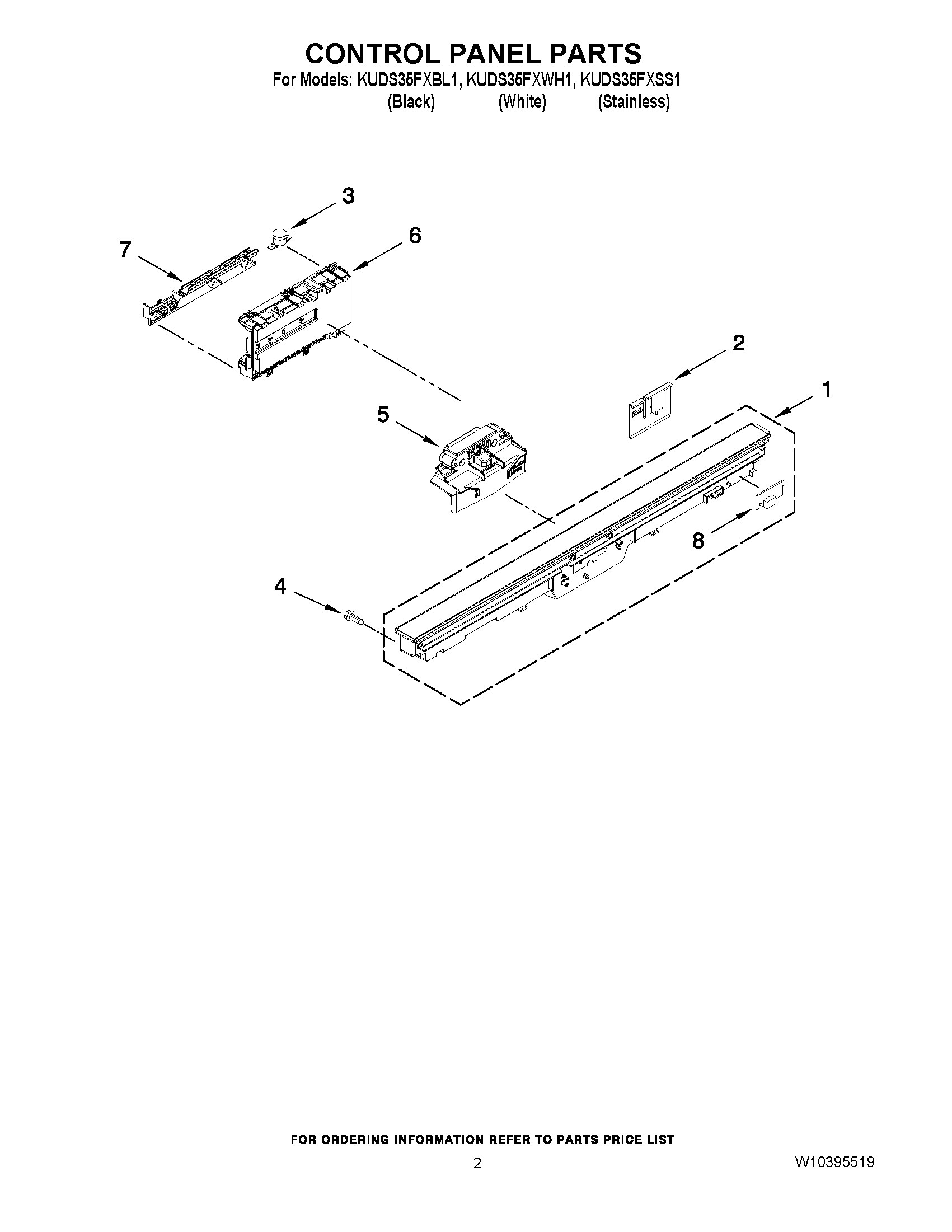

KUDS35FXBL1 02 – CONTROL PANEL PARTS

KUDS35FXBL1 02 – CONTROL PANEL PARTS

Written by

in

KUDS35FXBL1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (BLACK)
1CONSOLE ASSEMBLY (STAINLESS)
1WPW10481126 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6WPW10380685 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195836 Whirlpool Dishwasher Indicator Light
