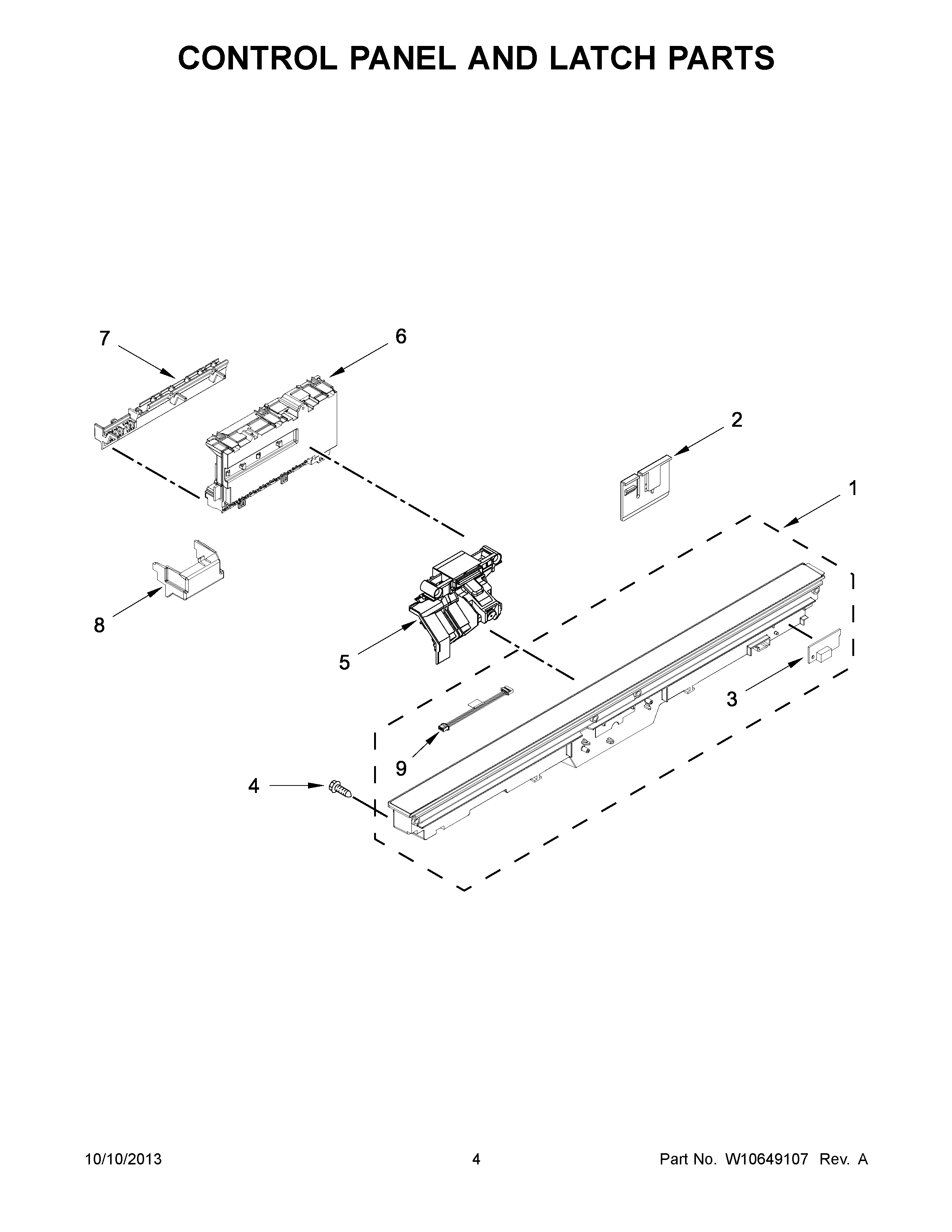

KUDS35FXSSA 03 – CONTROL PANEL AND LATCH PARTS

KUDS35FXSSA 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDS35FXSSA 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
1WPW10481126 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10195836 Whirlpool Dishwasher Indicator Light
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10479761 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10783730 Whirlpool Dishwasher Connector
9W10528492 Whirlpool Dishwasher Wire
