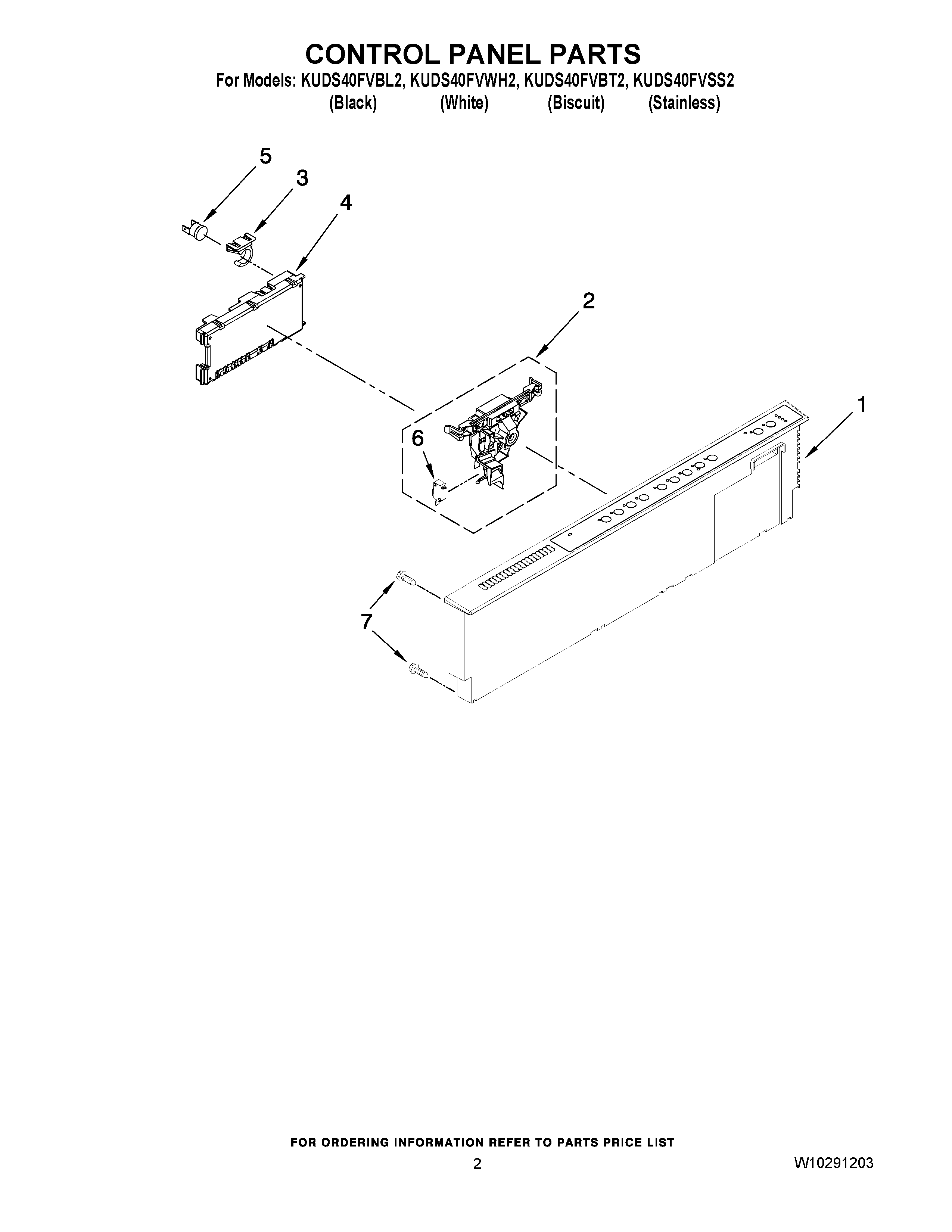

KUDS40FVBL2 02 – CONTROL PANEL PARTS

KUDS40FVBL2 02 – CONTROL PANEL PARTS

Written by

in

KUDS40FVBL2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (MIDNIGHT GREY)
1CONSOLE ASSEMBLY (BISCUIT)
1CONSOLE ASSEMBLY (WHITE)
1CONSOLE ASSEMBLY (BLACK)
2WPW10404412 Whirlpool Door Latch
3Clip, BI-Metal
4WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10134019 Whirlpool Dishwasher Switch
7WPW10348409 Whirlpool Screw
