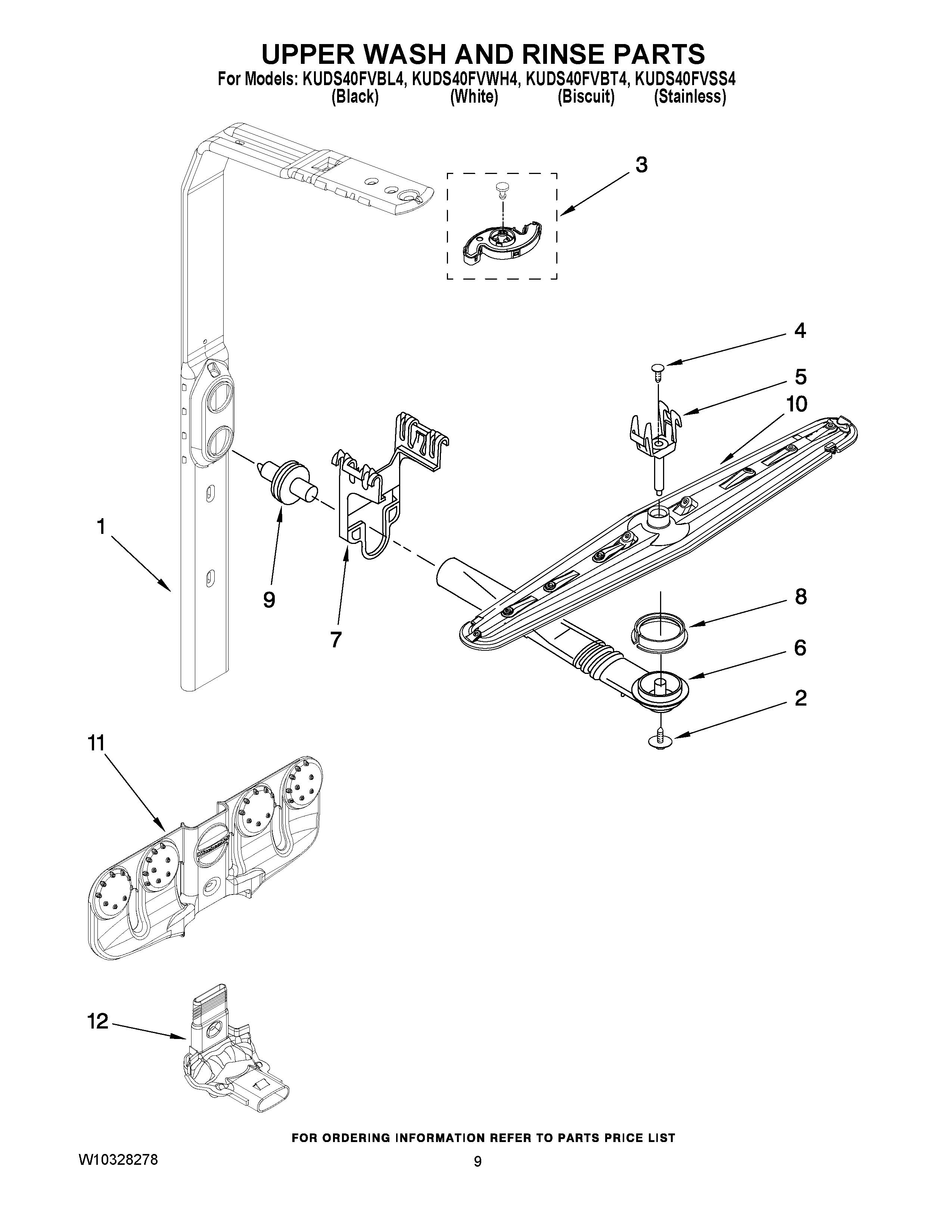

KUDS40FVBL4 07 – UPPER WASH AND RINSE PARTS

KUDS40FVBL4 07 – UPPER WASH AND RINSE PARTS

Written by

in

KUDS40FVBL4 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1WPW10077859 Whirlpool Dishwasher Tube
2WPW10349488 Whirlpool Screw
38193983 Whirlpool Spinner Kit
4WPW10118464 Whirlpool Dishwasher Wash Arm Plug
5WPW10082867 Whirlpool Dishwasher Mount
6WPW10323424 Whirlpool Manifold
7Hanger
8WP8268433 Whirlpool Seal Assembly
9WPW10082831 Whirlpool Dishwasher Probe
10WPW10082841 Whirlpool Spray Arm
11WPW10077600 Whirlpool Dishwasher Manifold
12Valve Assembly, Manifold
