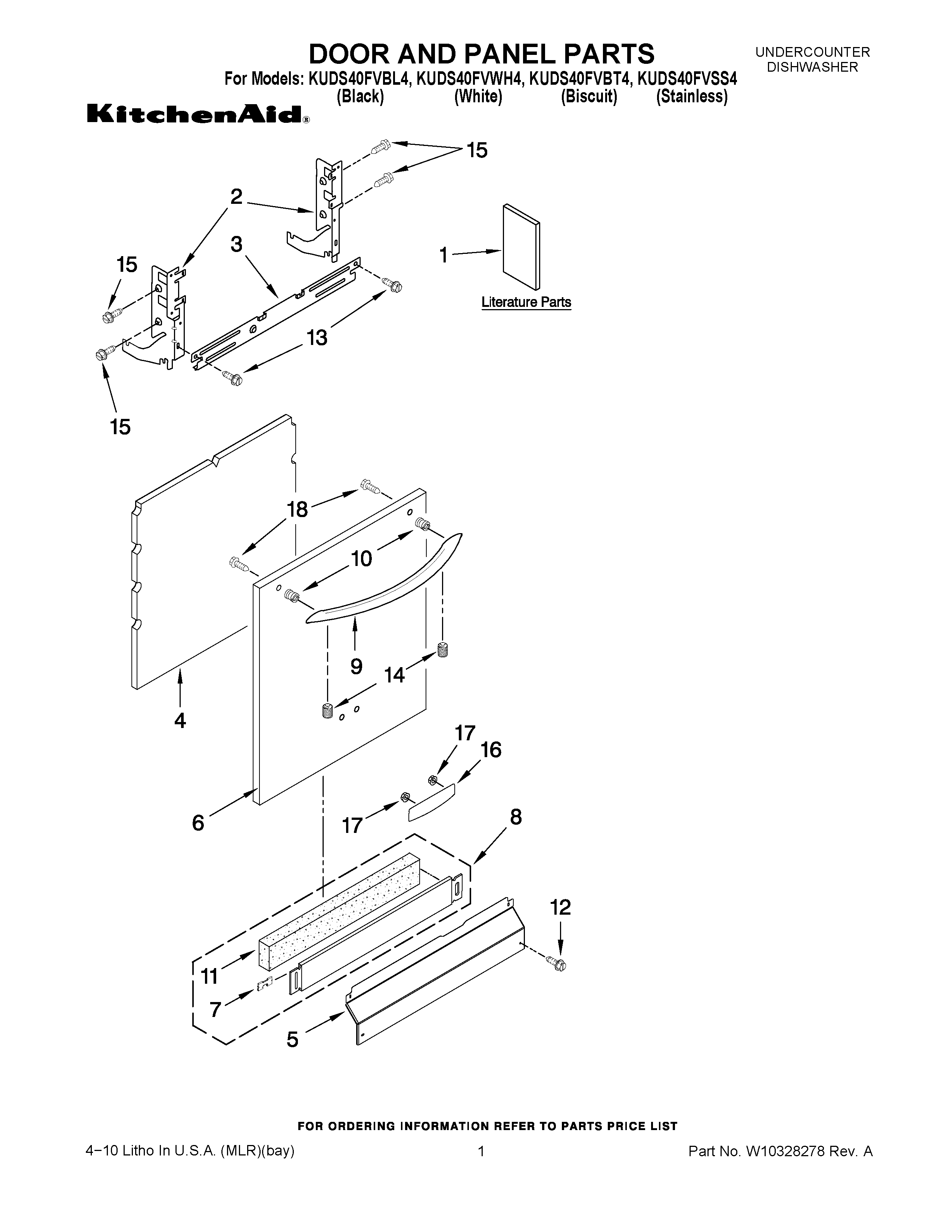

KUDS40FVBT4 01 – DOOR AND PANEL PARTS

KUDS40FVBT4 01 – DOOR AND PANEL PARTS

Written by

in

KUDS40FVBT4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Tech Sheet
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Biscuit)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
6Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
7WP8269016 Whirlpool Clip Assembly
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Includes Items 7 & 11) (Biscuit)
9HANDLE (INCLUDES ITEMS 13) (BLACK)
9HANDLE (INCLUDES ITEMS 13) (WHITE)
9HANDLE ASSY (BISCUIT)
9W10195738A Whirlpool Stainless Steel Door Handle
10WP8564951 Whirlpool Dishwasher Stud
11SHIELD
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
12WPW10503550 Whirlpool Dishwasher Retainer
13WP3390631 Whirlpool Screw
14WP8534008 Whirlpool Screw
15WP3400071 Whirlpool Screw
16Nameplate (Biscuit)
16W10021860 Whirlpool Dishwasher Nameplate
16W10021850 Whirlpool Dishwasher Nameplate
16W10021870 Whirlpool Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18Screw
