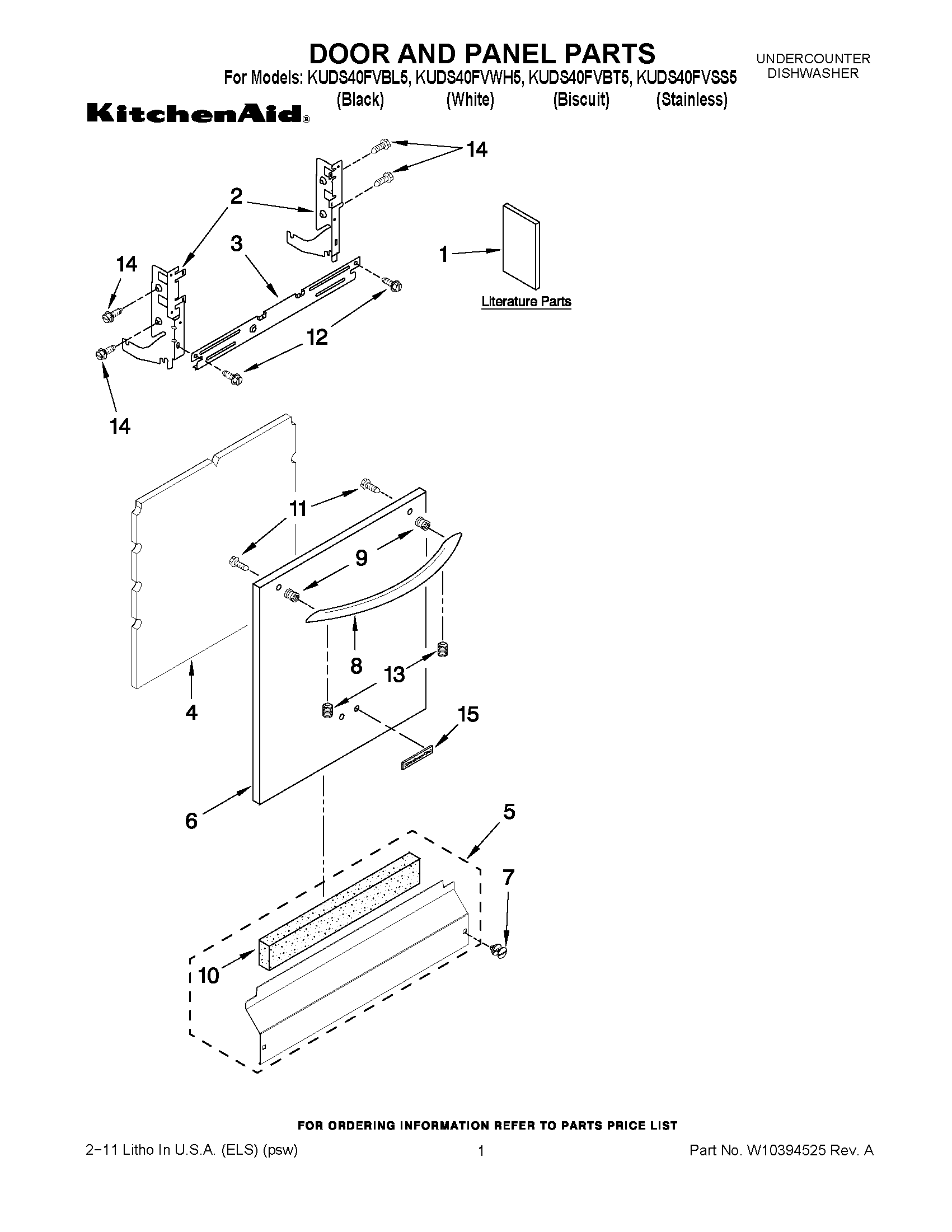

KUDS40FVBT5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Tech Sheet
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10526116 Whirlpool Dishwasher Panel
5WPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Biscuit)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
6Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7WPW10503549 Whirlpool Dishwasher Retainer Clip
7WPW10503550 Whirlpool Dishwasher Retainer
8HANDLE (INCLUDES ITEMS 13) (BLACK)
8HANDLE (INCLUDES ITEMS 13) (WHITE)
8HANDLE ASSY (BISCUIT)
8W10195738A Whirlpool Stainless Steel Door Handle
9WP8564951 Whirlpool Dishwasher Stud
10SHIELD
11Screw
12WP3390631 Whirlpool Screw
13WP8534008 Whirlpool Screw
14WP3400071 Whirlpool Screw
15WPW10243392 Whirlpool Dishwasher Nameplate
15WPW10243393 Whirlpool Dishwasher Nameplate
15NAMEPLATE (BISCUIT/BISQUE)
15WPW10243391 Whirlpool Refrigerator Nameplate
