KUDS50FVPA3 01 – DOOR AND PANEL PARTS

KUDS50FVPA3 01 – DOOR AND PANEL PARTS

Written by

in

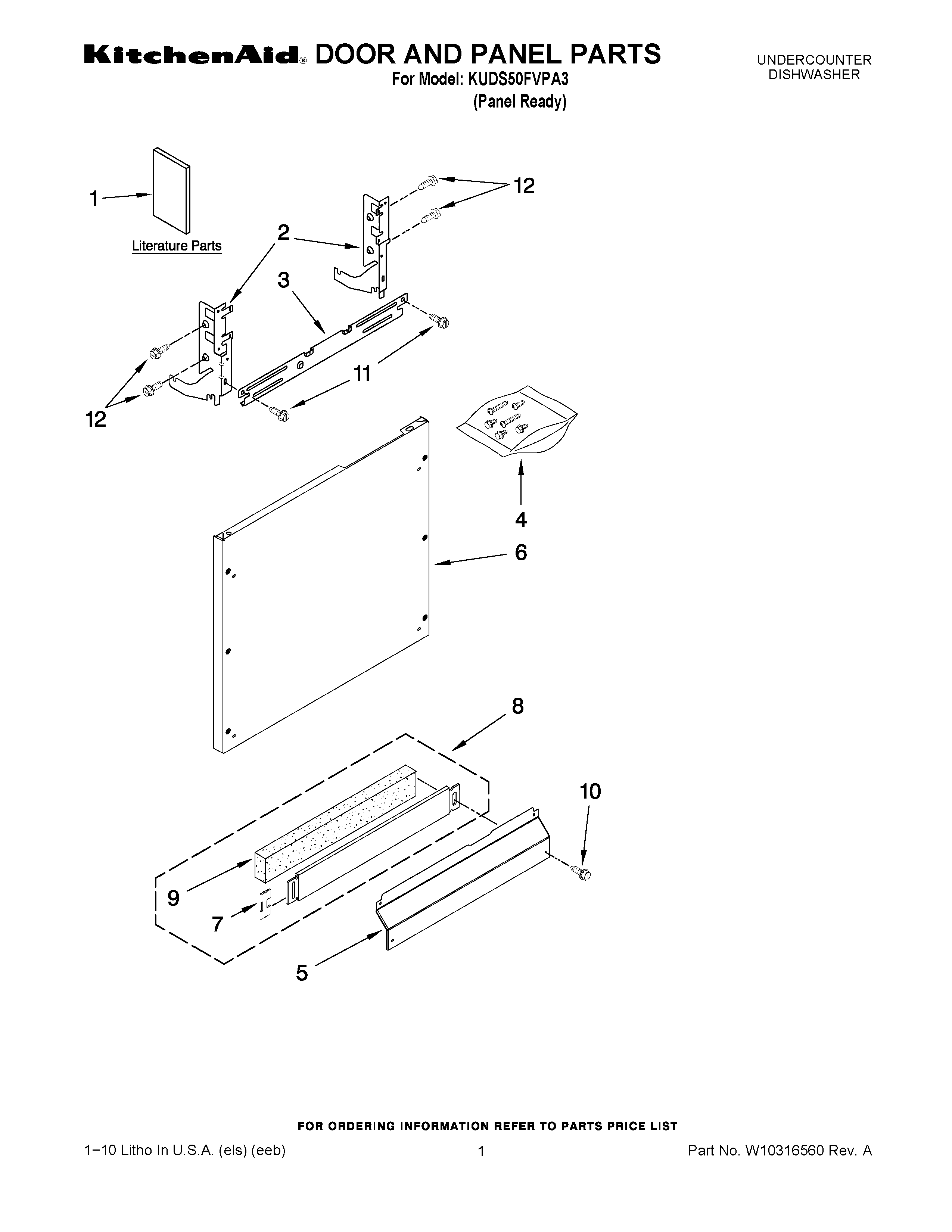

KUDS50FVPA3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, UNDERCOUNTER BRACKET
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE ENGLISH & FRENCH
1INSTRUCTIONS, INSTALLATION
1Tech Sheet
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Screws, Bag Door Assembly
6W11113792 Whirlpool Dishwasher Panel
7WP8269016 Whirlpool Clip Assembly
8W10909064 Whirlpool Dishwasher Black Access Panel
9SHIELD
10WP302868 Whirlpool Screw
11WP489069 Whirlpool Compactor Screw
12WP3400071 Whirlpool Screw
