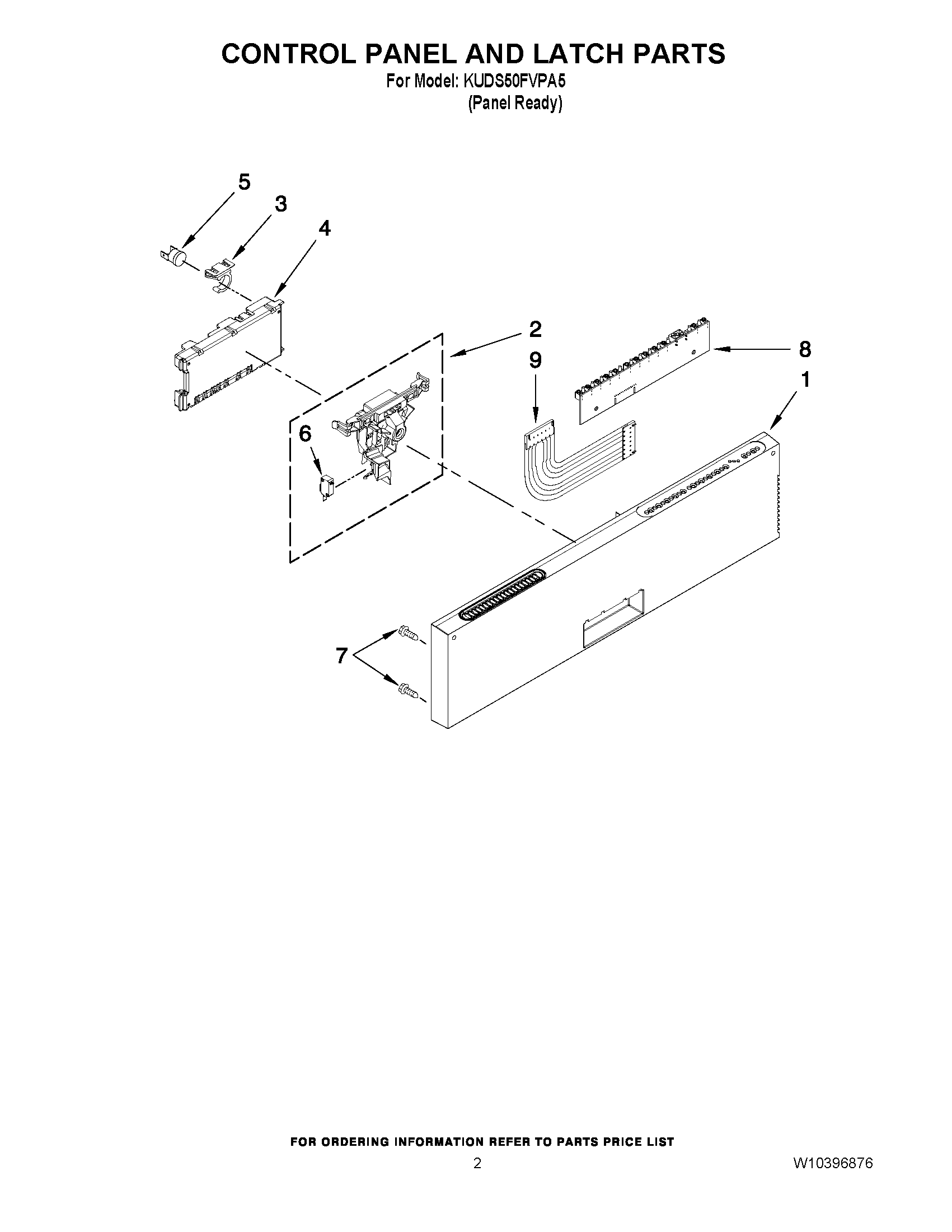

KUDS50FVPA5 02 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	CONSOLE ASSEMBLY (BLACK)
2	WPW10404412 Whirlpool Door Latch
3	Clip, BI-Metal
4	WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WPW10134019 Whirlpool Dishwasher Switch
7	WPW10348409 Whirlpool Screw
8	USER INTERFACE
9	Cable, Ribbon
