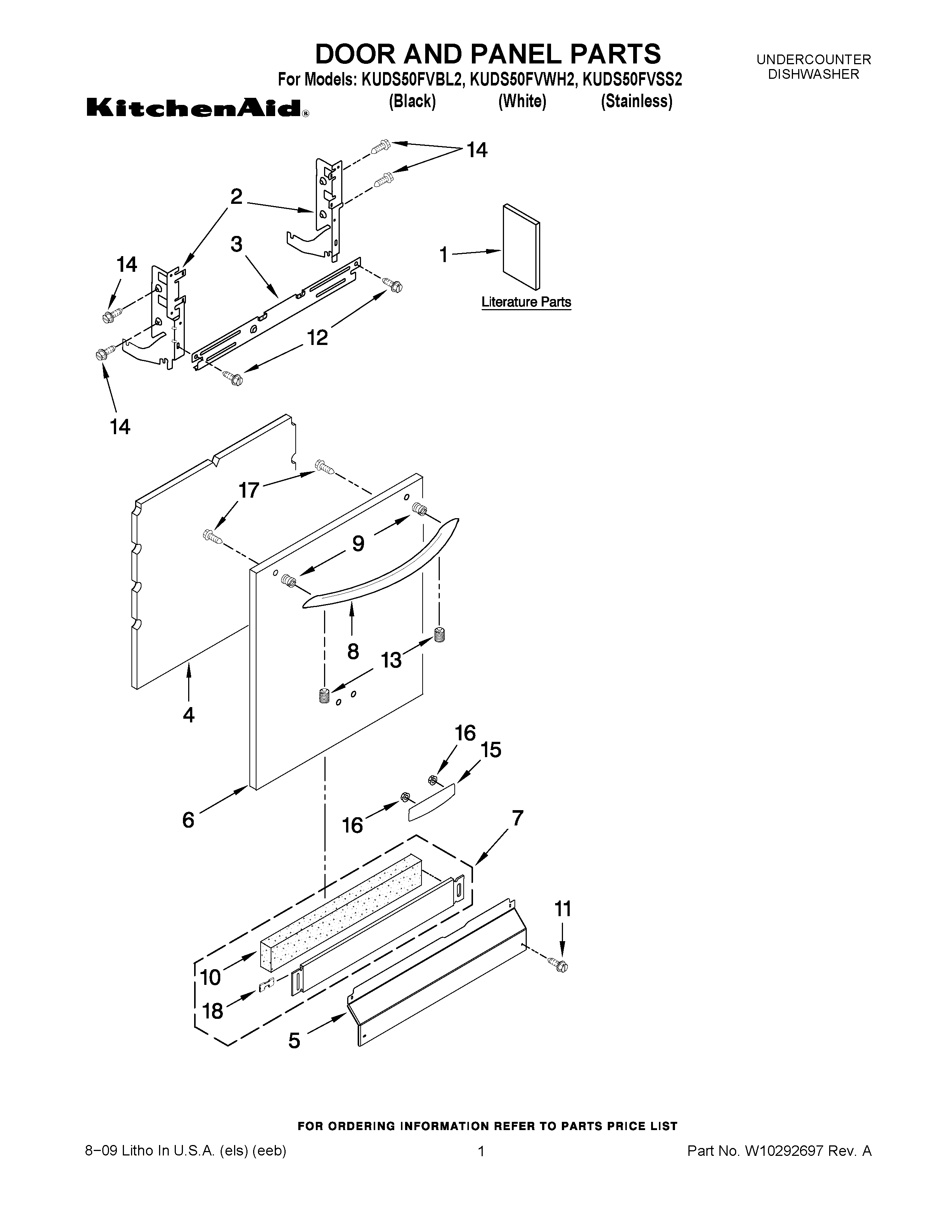

KUDS50FVSS2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE ENGLISH & FRENCH
1INSTRUCTIONS, INSTALLATION
1Tech Sheet
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
6Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
7WPW10586591 Whirlpool Dishwasher Toe Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
8HANDLE (INCLUDES ITEMS 13) (WHITE)
8W10195738A Whirlpool Stainless Steel Door Handle
8HANDLE (INCLUDES ITEMS 13) (BLACK)
9WP8564951 Whirlpool Dishwasher Stud
10SHIELD
11WPW10503549 Whirlpool Dishwasher Retainer Clip
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
13WP8534008 Whirlpool Screw
14WP3400071 Whirlpool Screw
15W10021870 Whirlpool Nameplate
15W10021860 Whirlpool Dishwasher Nameplate
15W10021850 Whirlpool Dishwasher Nameplate
16WP2004333 Whirlpool Refrigerator Nut
17Screw
18WP8269016 Whirlpool Clip Assembly
