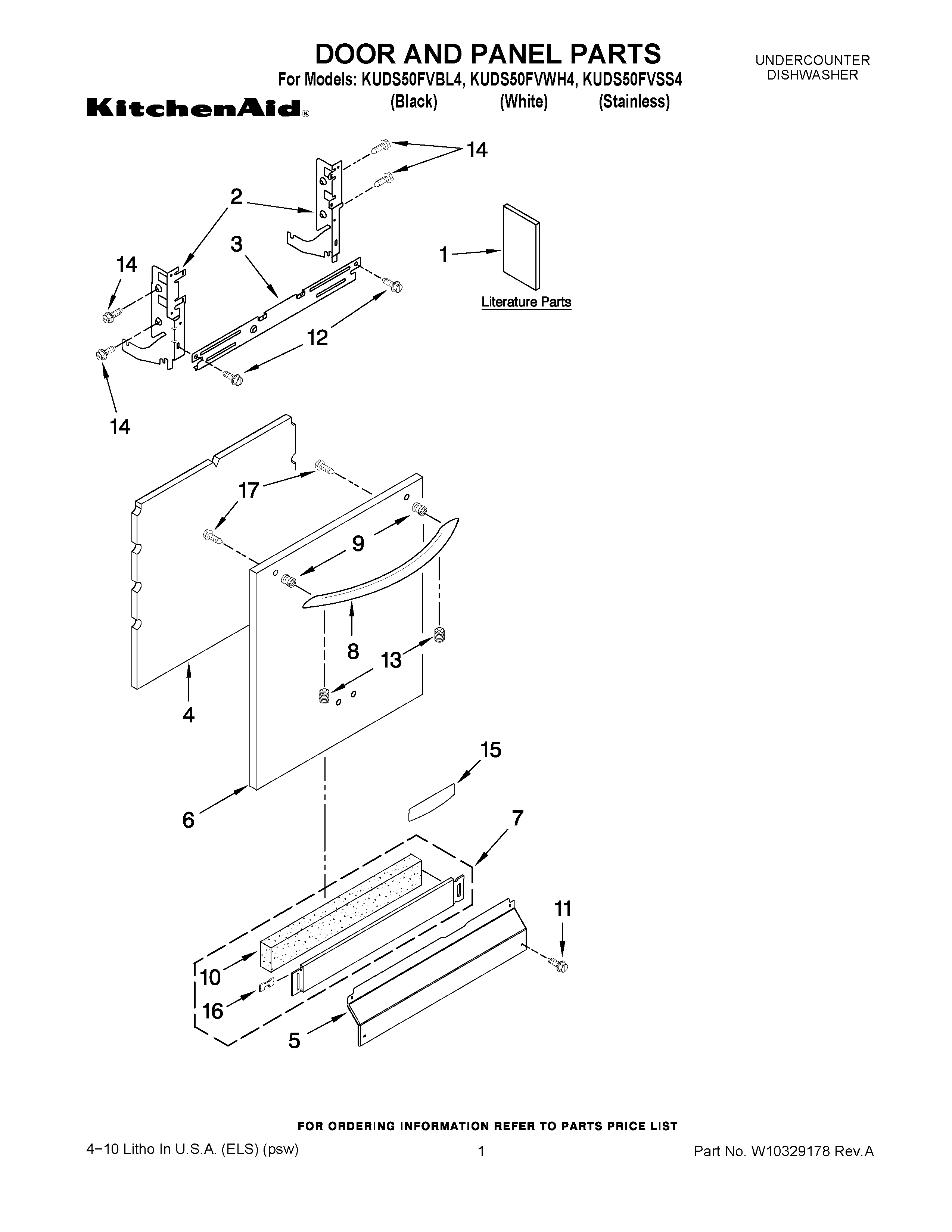

KUDS50FVSS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1Tech Sheet
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE (SPANISH)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
6Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
7WPW10586591 Whirlpool Dishwasher Toe Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
8W10195738A Whirlpool Stainless Steel Door Handle
8HANDLE (INCLUDES ITEMS 13) (BLACK)
8HANDLE (INCLUDES ITEMS 13) (WHITE)
9WP8564951 Whirlpool Dishwasher Stud
10SHIELD
11WP302868 Whirlpool Screw
11WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP489069 Whirlpool Compactor Screw
13WP8534008 Whirlpool Screw
14WP3400071 Whirlpool Screw
15WPW10243391 Whirlpool Refrigerator Nameplate
15WPW10243392 Whirlpool Dishwasher Nameplate
15WPW10243393 Whirlpool Dishwasher Nameplate
16WP8269016 Whirlpool Clip Assembly
17Screw
