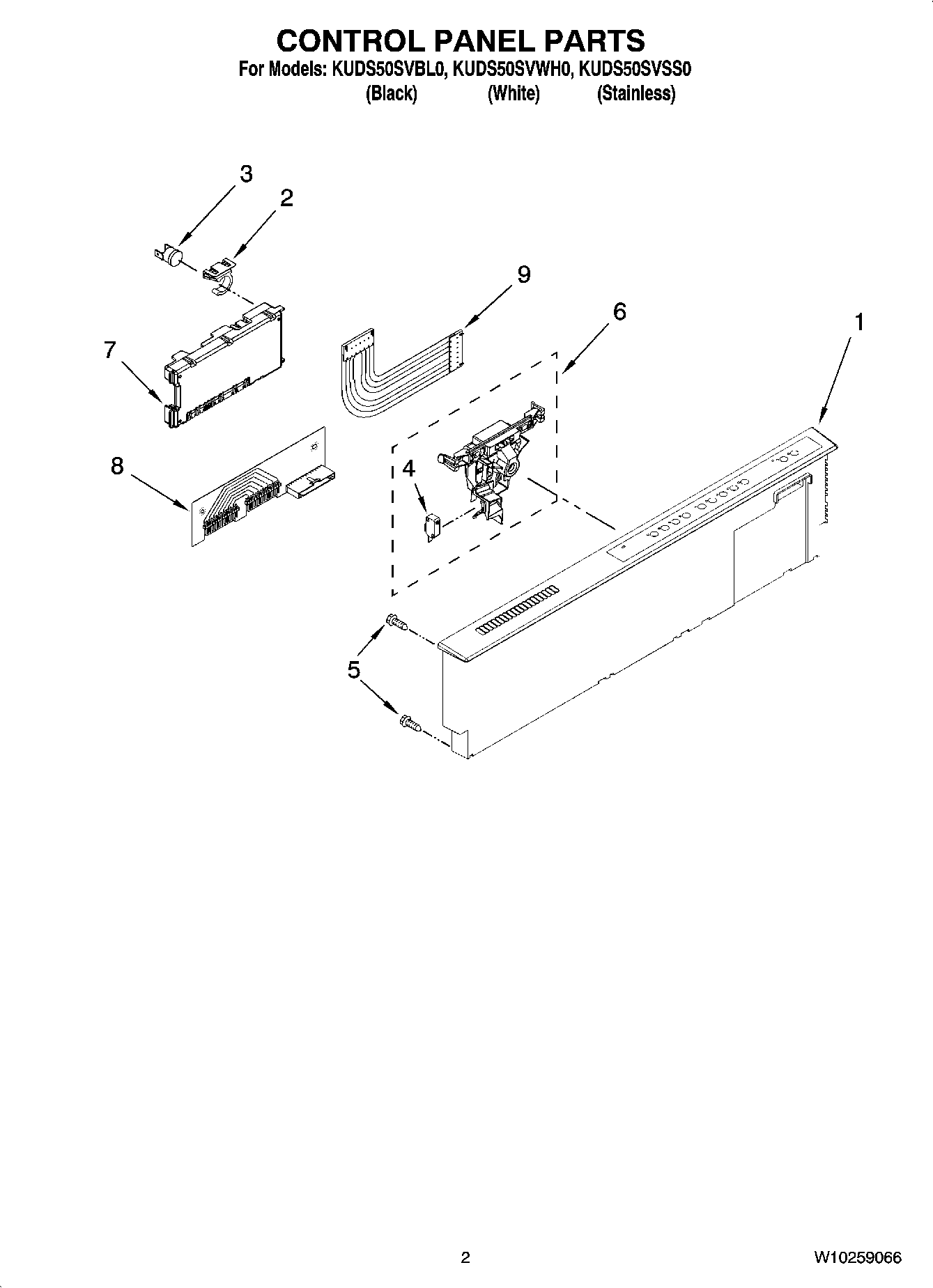

KUDS50SVBL0 02 – CONTROL PANEL PARTS

KUDS50SVBL0 02 – CONTROL PANEL PARTS

Written by

in

KUDS50SVBL0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Active Overlay) (Midnight Grey)
1Console Assembly (Includes Active Overlay) (White)
1Console Assembly (Includes Active Overlay) (Black)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10134019 Whirlpool Dishwasher Switch
5WPW10348409 Whirlpool Screw
6WPW10404412 Whirlpool Door Latch
7WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
8WP8531873 Whirlpool Dishwasher Control Board
9CABLE-RIBBON
