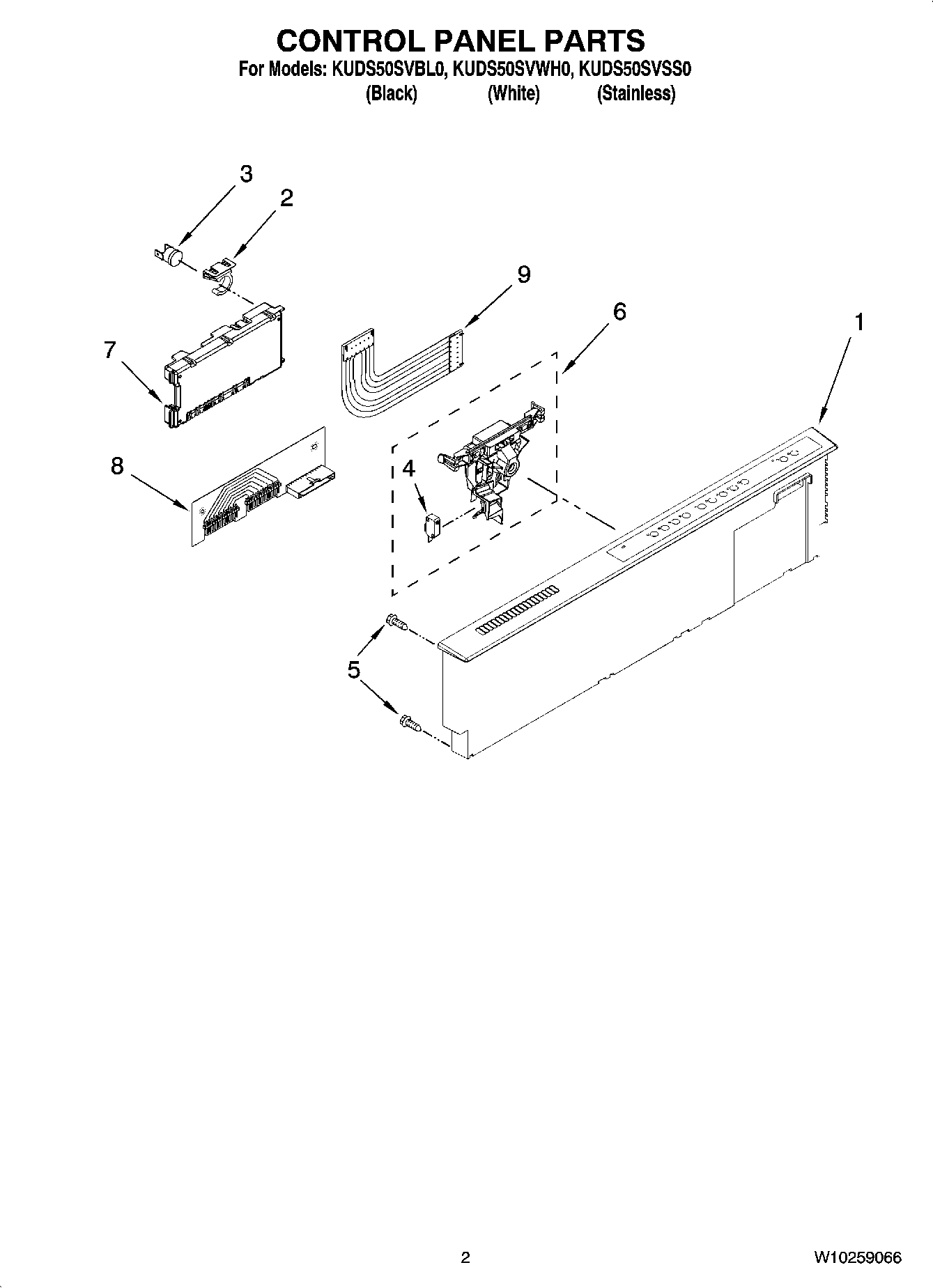

KUDS50SVSS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (Includes Active Overlay) (Midnight Grey)
1	Console Assembly (Includes Active Overlay) (White)
1	Console Assembly (Includes Active Overlay) (Black)
2	Clip, BI-Metal
3	W10258275 Whirlpool Dishwasher Bimetal Fuse
4	WPW10134019 Whirlpool Dishwasher Switch
5	WPW10348409 Whirlpool Screw
6	WPW10404412 Whirlpool Door Latch
7	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
8	WP8531873 Whirlpool Dishwasher Control Board
9	CABLE-RIBBON
