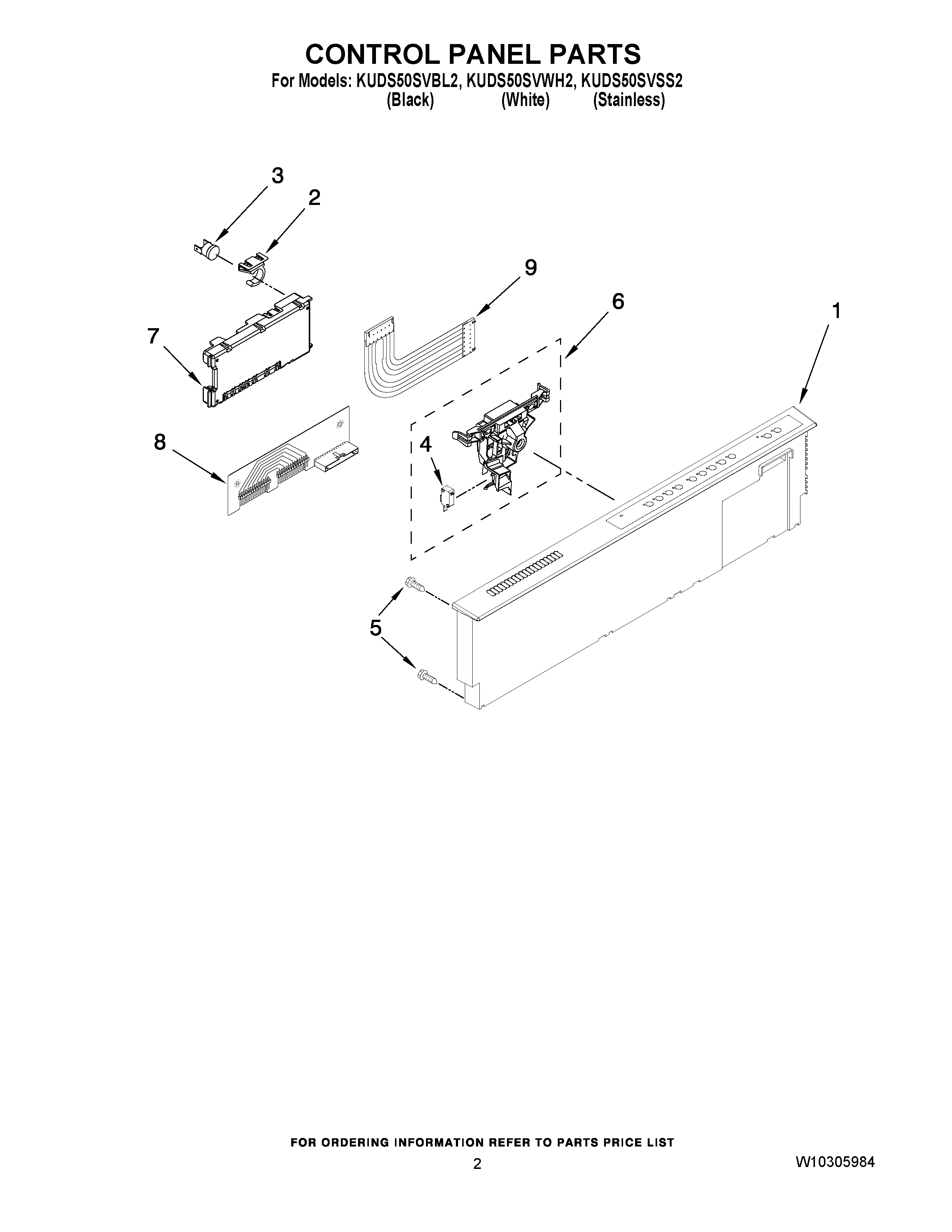

KUDS50SVSS2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY) (MIDNIGHT GREY)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY) (WHITE)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY) (BLACK)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10134019 Whirlpool Dishwasher Switch
5WPW10348409 Whirlpool Screw
6WPW10404412 Whirlpool Door Latch
7WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
8WP8531873 Whirlpool Dishwasher Control Board
9CABLE-RIBBON
